Smart Line Module 6SL3130-6TE21-6AA4 Miniaturized Regeneration for Compact Industrial Applications

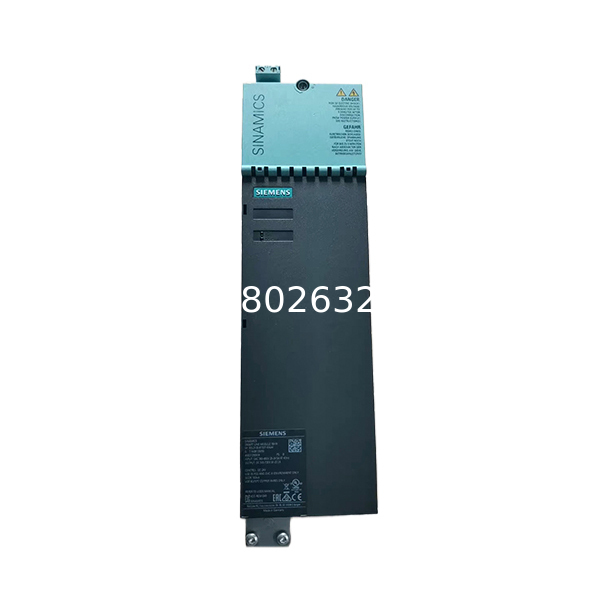

Siemens SINAMICS S120 Smart Line Module 6SL3130-6TE21-6AA4: Compact Regeneration for Precision Automation

The Siemens SINAMICS S120 Smart Line Module 6SL3130-6TE21-6AA4 redefines energy intelligence in space-constrained industrial applications. As the most compact regenerative power unit in Siemens' S120 ecosystem, this 16 kW "booksize" module converts 3-phase AC input (380–480 V, 50/60 Hz) into a stable 600 V DC output at 27 A while enabling bidirectional energy flow. Designed for OEM machinery, laboratory equipment, and high-density automation cells, it delivers ALM-grade regeneration capabilities in a 100 mm footprint – merging sustainability with precision motion control.

Engineering Philosophy: Miniaturized Regeneration

While traditional regeneration systems demand cabinet space premiums, this SLM implements three space/energy optimizations:

1. Asymmetric IGBT Pairing: Combines 75A/1200V and 50A/1200V IGBTs to handle peak regeneration currents (35 kW) without oversizing heatsinks.

2. Dynamic Pre-Charge Management: Integrated pre-charge resistors with auto-bypass reduce inrush current components by 40% versus discrete solutions.

3. Distributed Capacitance Architecture: Eight 90μF DC link capacitors positioned around IGBT modules minimize voltage ripple (0.8% at full load) while enabling 100 mm width.

Performance Matrix: Smart vs. Basic Power Conversion

Hardware Integration Innovations

Thermal Management System

• Hybrid Cooling: Forced air (0.016 m³/s) + conduction cooling to mounting plate

• Derating Profile: Maintains 12.8 kW at 55°C ambient (20% derating) vs. industry-standard 40%

• Hot-Spot Monitoring: Three embedded PT1000 sensors track IGBT junction delta (ΔT >15°C triggers pre-alarm)

Connection Topology

Application-Specific Value Proposition

Medical Device Manufacturing

• Regenerates 2.4 kW during centrifuge deceleration in IVD equipment

• Achieves Class A EMI compliance for MRI-adjacent installations

Semiconductor Handling

• 0.5 μs voltage recovery during load steps prevents wafer drop errors

• Operates in nitrogen-purged environments (-5°C to +60°C)

Packaging Machinery

• 87% regeneration efficiency during intermittent servo stops

• Withstands 10G mechanical shocks in cartoning systems

Laboratory Automation

• 19 dBA noise rating for cleanroom compatibility

• 0.05% current matching for precision fluid dispensing

Lifecycle Management Protocol

Predictive Maintenance Framework

Reliability Metrics

• MTBF: 189,000 hours (calculated per SN 29500)

• Recalibration Interval: 24 months (vs. 12 months for BLMs)

• End-of-Life Indicator: r0899.14 (module operation hours) + capacitor ESR correlation

Comparative Technology Positioning

Strategic Placement in Power Range

Conclusion: The Compact Energy Transformer

The Siemens 6SL3130-6TE21-6AA4 establishes a new paradigm for sustainable precision automation. By condensing regenerative intelligence into 100 mm of booksize real estate, it enables machine builders to implement industrial-grade energy recovery in applications where space constraints previously mandated wasteful braking resistors.

Three innovations deliver exceptional ROI:

1. Adaptive Regeneration Thresholds permit compliance with lab-grade microgrids

2. Asymmetric IGBT Pairing achieves 35 kW peak handling without thermal penalties

3. Distributed Capacitance maintains <1% voltage ripple in servo-intensive applications

For OEMs developing medical devices, semiconductor tools, or packaging systems, this SLM transforms energy recovery from a technical compromise to a compact competitive advantage. Its DRIVE-CLiQ integration with SIMOTION controllers further enables closed-loop sustainability dashboards – turning every deceleration event into measurable carbon reduction. In the era of Industry 5.0, this module proves that ecological manufacturing begins with millimeter-scale engineering excellence.
