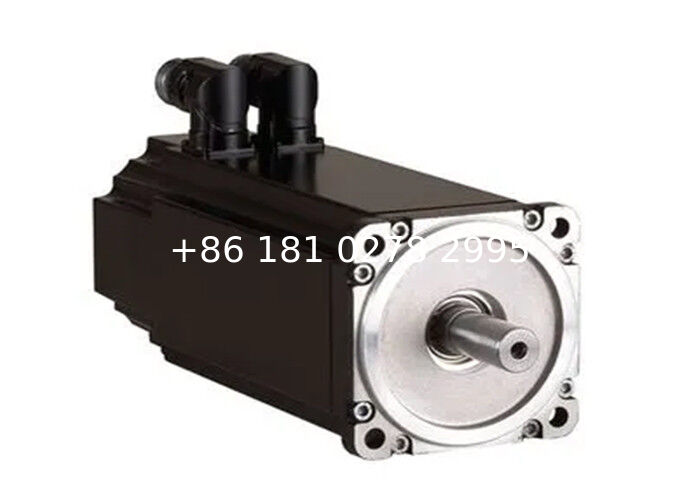

B&R 8LSAA2.D8045S200-3 400VAC Servo Motor 4500RPM 1.27Nm with 3.2Nm Brake

The B&R 8LSAA2.D8045S200-3 is a compact 400 VAC synchronous servo motor for industrial motion systems that require fast rotational speed, controlled positioning, and a holding brake for stationary axis retention.

This model combines a 4500 rpm nominal speed with 1.270 Nm nominal torque in a 70 mm flange format. Its integrated 3.20 Nm holding brake is suitable for vertical axes, indexing units, feeders, and compact positioning mechanisms where the motor must remain secured after power removal.

The motor uses an ECI 1119 FS EnDat 2.2 single-turn encoder for position feedback and includes a smooth 14 mm shaft. The angled swivel single-cable connector helps simplify routing in compact machine layouts.

This product is a synchronous servo motor. It is not a power supply, bus module, encoder accessory, PLC, or standalone motor controller.

Key Features

400 VAC synchronous servo motor

4500 rpm nominal speed

1.270 Nm nominal torque

1.400 Nm stall torque

3.20 Nm holding brake

EnDat 2.2 single-turn encoder

5 pole pairs

70 mm square flange

60 mm centering diameter

Smooth 14 mm shaft

Self-cooled construction

Angled swivel hybrid connector

Typical Applications

Packaging machinery

Compact indexing tables

Servo-driven feeders

Labeling equipment

Small conveyor positioning axes

Assembly machinery

Printing and converting equipment

Replacement for existing 8LS servo axes

Installation Notes

Confirm the original motor nameplate, encoder type, brake requirement, shaft style, and connector direction before replacement.

Use a compatible B&R servo drive and approved motor cable for the single-cable hybrid connection.

Do not describe this motor as 110 VAC, 380 VDC, a bus power supply, or an inductive encoder module.

FAQ

Q

Is 8LSAA2.D8045S200-3 a servo motor

A

Yes it is a 400 VAC synchronous servo motor

Q

Does this model include a holding brake

A

Yes it has a 3.20 Nm holding brake

Q

What encoder does it use

A

It uses an ECI 1119 FS EnDat 2.2 single-turn encoder

Q

Is the shaft keyed

A

No this model has a smooth shaft
