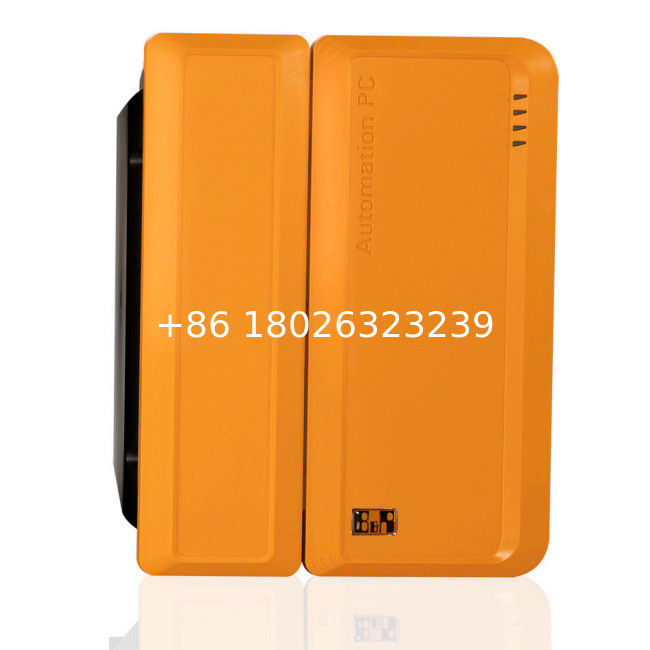

B&R Automation PC910 5PC910.SX02-00 with 5PC900.TS17-00 for Power link Driver System

Product Details

Place of Origin: Austria

Brand Name: B&R

Certification: CE UL cURus E360421 Servo and stepper motors - Component

Model Number: b&r 5PC910.SX02-00

Payment & Shipping Terms

Minimum Order Quantity: 1 piece

Price: USD 2800 -5000 piece as depend on booking price

Packaging Details: 50*15*2 CM

Delivery Time: 3-100 working days

Payment Terms: D/A, D/P, T/T, Western Union

Supply Ability: 5 sets 10 days

Get Best Price
Contact Now
Specifications
Highlight:
Brand:
B&R
Part Number:
5PC910.SX02-00
Part Number2:
B&r 5PC910.SX02-00
Bus Units:
5AC901.BX02-01
CPU Boards:
5PC900.TS17-00
CPU Boards-2:
5PC900.TS17-01
Heat Sink:
5AC901.HS00-01
Main Memory:
5MMDDR.8192-03 SO-DIMM DDR3, 1024 MB
5MMDDR.2048-03:
5MMDDR.8192-04, 2048 MB
Drives:
5AC901.CSSD-06 512 GB SSD MLC - Slide-in Compact - SATA
Brand:
B&R
Part Number:
5PC910.SX02-00
Part Number2:
B&r 5PC910.SX02-00
Bus Units:
5AC901.BX02-01
CPU Boards:
5PC900.TS17-00
CPU Boards-2:
5PC900.TS17-01
Heat Sink:
5AC901.HS00-01
Main Memory:
5MMDDR.8192-03 SO-DIMM DDR3, 1024 MB
5MMDDR.2048-03:
5MMDDR.8192-04, 2048 MB
Drives:
5AC901.CSSD-06 512 GB SSD MLC - Slide-in Compact - SATA
Description
B&R Automation PC910 5PC910.SX02-00 with 5PC900.TS17-00 for Power link Driver System



B&R Indrustrial PC:5PC910.SX02-00



 DESCRIPTION:



  • Slot for a bus unit with 2 PCI slots or with 1 PCI and 1 PCIe slot
  • Slot for 1 slide-in compact drive and 1 slide-in drive
  • Slot for 2 interface options
  • SDL/DVI/Monitor and DisplayPort interfaces
  • Slot for monitor/panel option
  • CFast slot
  • 2-slot APC910 system unit

Latest processor technology - Intel Core i-series (Generation 3 - Ivy Bridge and Generation 6 - Skylake)



• 24 VDC supply voltage

• Fanless operation3)

• BIOS (AMI)

• Real time clock, RTC (battery-backed)

• Wide range of interface options

• Wide range of monitor/panel options

• TPM 2.0 safety for QM170/HM170/CM236

• Powerful graphics (Intel HD graphics up to Intel Iris Pro)

• 1 CFast slot2)

• 1, 2, 3 or 5 card slots (for PCI / PCI Express (PCIe) cards)

• SATA drives (slide-in and slide-in compact slots)

• 4x USB 3.0, 1x USB 2.0

• 2x Ethernet 10/100/1000 Mbit interfaces

• 1x RS232 interface, modem supported

• Up to 32 GB main memory (dual-channel memory support) for QM170/HM170/CM236

• Connections for a wide range of display devices to the monitor/panel and DisplayPort interfaces

• Up to 16 GB main memory (dual-channel memory support) for QM77/HM76 Automation PC 910 User's manual V 2.13 15 System overview

B&R Automation PC910 5PC910.SX02-00 with 5PC900.TS17-00 for Power link Driver System 0

B&R Other Power Panel List:



5PC910.SX01-00 1-slot APC910 system unit
5PC910.SX02-00 2-slot APC910 system unit
5PC910.SX03-00 3-slot APC910 system unit
5PC910.SX05-00 5-slot APC910 system unit

5PC900.TS17-00 CPU board Intel Core i5 6440EQ
5PC900.TS17-01 CPU board Intel Core i3 6100E
5PC900.TS17-02 CPU board Intel Celeron G3900E
5PC900.TS17-03 CPU board Intel Xeon E3-1515MV5
5PC900.TS17-04  CPU board Intel Core i7 6820EQ

B&R Automation PC910 5PC910.SX02-00 with 5PC900.TS17-00 for Power link Driver System 1B&R Automation PC910 5PC910.SX02-00 with 5PC900.TS17-00 for Power link Driver System 2
