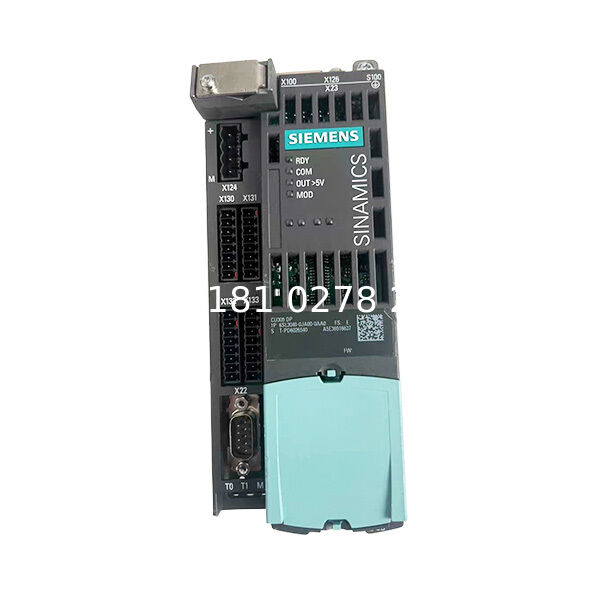

Control Unit 6SL3040-0JA00-0AA0 for Motion Systems

In high‑stakes industrial environments—where precision motion control dictates productivity, quality, and system scalability—the Control Unit 6SL3040-0JA00-0AA0 emerges as a critical orchestrator. Designed as the brain of a modular drive system, this compact yet powerful controller integrates fieldbus connectivity, real‑time processing, and safety functionalities to manage single‑axis servo applications with micron‑level accuracy. From CNC machining centers to high‑speed robotic arms, it bridges the gap between raw power and intelligent control while minimising cabinet footprint by 40% compared to conventional multi‑component solutions.

Core Architecture: Beyond Basic Control

Unlike generic controllers, the 6SL3040-0JA00-0AA0 (designated CU305 DP) is engineered explicitly for dynamic motion tasks. Its architecture combines:

• Centralised Intelligence – A high‑speed CPU executing advanced vector control algorithms for torque accuracy within ±0.2% at standstill, critical for precision positioning.

• Fieldbus Integration – Enables deterministic data exchange with higher‑level automation systems, supporting cycle times as low as 1 ms for synchronised operations.

• Safety‑Integrated Design – Native Safe Torque Off (STO) compliant with SIL 3 / PLe / Cat. 3 standards, with license‑extendable functions like Safe Brake Control (SBC).

• Encoder Agnosticism – Supports TTL incremental, SSI absolute, and sin/cos encoders via signal conditioning, ensuring compatibility with diverse motor types.

Technical Specifications

Engineering Innovations: Precision, Flexibility, and Robustness

1. Real‑Time Motion Optimisation
The control unit leverages graphical programming technology to implement custom motion logic without low‑level coding. This allows:

• Dynamic adaptation of position/speed profiles during CNC contouring.

• Anti‑resonance algorithms suppressing mechanical vibrations in high‑speed spindles.

• Electronic gearing and camming for synchronised axes in printing and packaging lines.

2. Seamless System Integration

• Plug‑and‑Play Topology – Drive‑bus auto‑detection identifies connected motors and encoders within seconds, reducing commissioning time by 60%.

• Unified Engineering – Configurable via standard automation software, enabling parameter synchronisation with controllers and HMI systems.

• Scalable I/O – Optional expansion modules for added sensor and actuator connectivity.

3. Thermal Resilience and Maintenance

• Fanless Cooling – Natural convection design eliminates moving parts, ensuring silent operation and high MTBF.

• Predictive Diagnostics – Continuous monitoring of DC‑link voltage, motor temperature, and IGBT junction stress, triggering alerts well before potential derating.

• Field‑Upgradable – Firmware updates via flash card slot, enabling feature enhancements without hardware swaps.

Target Applications: Where Precision Meets Productivity

• CNC Machine Tools – Controls spindle positioning and feed axes with ≤5 μm repeatability in milling and grinding centres.

• Robotic Assembly – Drives SCARA or 6‑axis robots for high‑speed pick‑and‑place in automotive electronics.

• Packaging Machinery – Synchronises fillers, cappers, and labelers at high throughput via electronic cam profiles.

• Semiconductor Handling – Manages wafer transport robots with vibration‑damped motion for nanoscale manufacturing.

• Textile Manufacturing – Maintains tension control in high‑speed looms, reducing material breakage.

Integration within the Drive Ecosystem

The control unit acts as the command hub for modular drives, interfacing seamlessly with:

• Power Modules – For standard AC motor control.

• Motor Encoders – Direct support for servo motors with common feedback interfaces.

• Safety Peripherals – License‑activated Safe Brake Control (SBC) for vertical axes in lifts or presses.

• Cloud Connectivity – Optional gateway for predictive analytics.

Sustainability and Lifecycle Leadership

• Energy Recuperation – Regenerative braking feeds a large portion of deceleration energy back to the DC link, reducing net consumption.

• Zero‑Downtime Design – Hot‑swappable flash cards and modular terminal blocks enable quick component replacements.

• Compliance Forward – RoHS and REACH adherence, with highly recyclable materials.

Conclusion: The Future‑Proof Pulse of Industrial Motion

The modular drive control unit (6SL3040-0JA00-0AA0) transcends conventional motion controllers by fusing fieldbus intelligence, safety‑by‑design, and adaptive control algorithms in a compact form factor. Its graphical programming flexibility and unified engineering environment slash engineering effort, while SIL 3 safety ensures compliance with global machinery directives.

For engineers designing agile automation cells—whether in precision machining, high‑speed packaging, or semiconductor fabrication—this control unit delivers uncompromised performance where microseconds define margins and microns define quality. In an era of smart manufacturing, it remains a benchmark for unifying motion, safety, and intelligence on a single platform.
