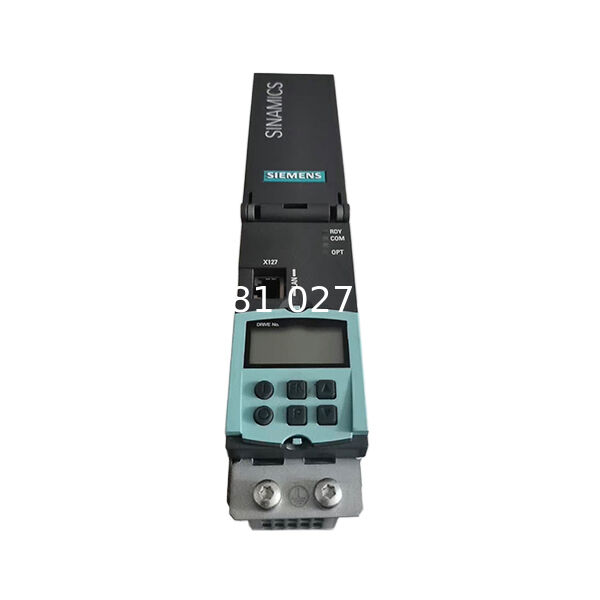

The 6SL3040-0MA00-0AA1 is an original-generation SINAMICS S120 CU320 Control Unit developed for centralized coordination of modular multi-axis drive systems.
It performs the higher-level control, communication, parameter management and diagnostic functions required by connected Line Modules, Single Motor Modules and Double Motor Modules.
Unlike a Motor Module, the CU320 does not provide motor power. It acts as the central drive controller that processes commands, coordinates axes and manages communication between the automation system and connected drive components.
This model belongs to the earlier CU320 generation and should not be described as a CU320-2 DP. The later CU320-2 DP uses a different order number and different hardware generation.
The 6SL3040-0MA00-0AA1 is mainly required for maintenance, repair and replacement of existing machines that were originally engineered around the first-generation CU320 platform.
Key Features
- Original-generation CU320 Control Unit
- Central control for modular S120 drives
- Multi-axis drive coordination
- PROFIBUS DP communication
- DRIVE-CLiQ component connection
- CompactFlash-based configuration
- Supports Line and Motor Modules
- Suitable for legacy machine maintenance
- Discontinued replacement product
Typical Applications
- Legacy CNC machines
- Printing equipment
- Packaging lines
- Converting machinery
- Multi-axis production systems
Central Control Function
The 6SL3040-0MA00-0AA1 acts as the central controller of the modular drive system.
Its functions include:
- Processing drive commands
- Coordinating multiple motor axes
- Managing motor-control parameters
- Monitoring connected drive components
- Handling system alarms and diagnostics
- Communicating with the machine PLC
- Managing DRIVE-CLiQ topology
The actual motor power is delivered by connected Motor Modules.
Original CU320 Generation
This model belongs to the original CU320 hardware generation.
It should be clearly distinguished from:
CU320
6SL3040-0MA00-0AA1
CU320-2 DP
6SL3040-1MA00-0AA0
CU320-2 PN
6SL3040-1MA01-0AA0
These products have different order numbers, hardware revisions and compatibility requirements.
PROFIBUS DP Communication
The control unit is designed for communication with an automation controller through PROFIBUS DP.
Typical communication functions include:
- Control-word transmission
- Speed and torque setpoints
- Drive status feedback
- Alarm reporting
- Diagnostic data
- Multi-axis synchronization commands
The PLC configuration and bus parameters must match the original machine project.
DRIVE-CLiQ System Connection
DRIVE-CLiQ is used to connect compatible drive components and feedback devices.
Typical connected components may include:
- Line Modules
- Single Motor Modules
- Double Motor Modules
- Sensor Modules
- Terminal Modules
- Servo motors
- Motor encoders
Correct topology and firmware compatibility are required for successful commissioning.
CompactFlash Card Configuration
The CU320 platform uses a CompactFlash Card for firmware, parameters and project-related drive data.
Before replacement, confirm:
- Card part number
- Firmware version
- License configuration
- Stored drive project
- Machine backup
- Axis assignments
- Safety configuration
A control unit without the correct card or project data may not start the machine correctly.
Multi-Axis Drive Coordination
The 6SL3040-0MA00-0AA1 can coordinate several axes within one modular drive system.
Typical controlled functions include:
- Speed control
- Torque control
- Positioning support
- Spindle coordination
- Synchronized machine movement
- Axis status monitoring
The supported number of axes depends on the drive configuration, firmware and control-performance requirements.
System Integration
A typical system may include:
- CU320 Control Unit
- CompactFlash Card
- PROFIBUS network
- DRIVE-CLiQ connections
- Basic, Smart or Active Line Module
- Single Motor Modules
- Double Motor Modules
- Servo or spindle motors
- Motor feedback devices
The CU320 is not a standalone PLC, inverter or motor power module.
Replacement Identification
Correct Model Number
6SL3040-0MA00-0AA1
Correct Product Type
Original CU320 Control Unit
Do Not Identify As
CU320-2 DP
Possible Later-Generation Reference
6SL3040-1MA00-0AA0
Before replacement, verify:
- Complete order number
- Hardware generation
- CompactFlash Card
- Firmware version
- PROFIBUS configuration
- DRIVE-CLiQ topology
- Connected modules
- Safety parameters
- Machine project backup
Do not install a CU320-2 replacement solely because it has a similar product name.
Migration Considerations
Migration from the original CU320 to a later CU320-2 controller may require more than a hardware exchange.
Possible requirements include:
- Project conversion
- Firmware adjustment
- New CompactFlash Card
- Parameter migration
- Hardware compatibility review
- Communication reconfiguration
- Safety recommissioning
- Machine functional testing
The migration procedure should be confirmed using the original machine documentation.
Installation Guidelines
Disconnect the complete drive-system supply.
Wait for the DC link to discharge.
Verify the absence of hazardous voltage.
Back up the existing project.
Record the PROFIBUS address.
Record the DRIVE-CLiQ topology.
Check the CompactFlash Card.
Verify the exact order number.
Install the replacement control unit.
Restore the approved drive project.
Check all connected components.
Test each motor axis separately.
Verify machine safety functions.
Installation and commissioning should be completed by qualified drive-system personnel.
FAQ
Q1: What is 6SL3040-0MA00-0AA1?
A1: It is an original-generation SINAMICS S120 CU320 Control Unit for modular multi-axis drive systems.
Q2: Is it a CU320-2 DP?
A2: No. It is the earlier CU320 generation. The later CU320-2 DP uses order number 6SL3040-1MA00-0AA0.
Q3: Does it directly power a motor?
A3: No. Motor power is supplied by connected Single or Double Motor Modules.
Q4: What is its main function?
A4: It coordinates drive axes, manages parameters and communicates with the machine automation controller.
Q5: What fieldbus does it use?
A5: It is commonly used with PROFIBUS DP communication.
Q6: Does it use DRIVE-CLiQ?
A6: Yes. DRIVE-CLiQ connects compatible drive components and feedback devices.
Q7: Is a CompactFlash Card required?
A7: Yes. The correct card, firmware and machine project must be available for operation.
Q8: Is the model discontinued?
A8: Yes. It is a legacy product primarily used for replacement and maintenance.
Q9: Can 6SL3040-1MA00-0AA0 directly replace it?
A9: Not automatically. Project, firmware, hardware and system compatibility must be checked.
Q10: Where is this control unit commonly used?
A10: It is found in older CNC, printing, packaging and multi-axis production machines.
