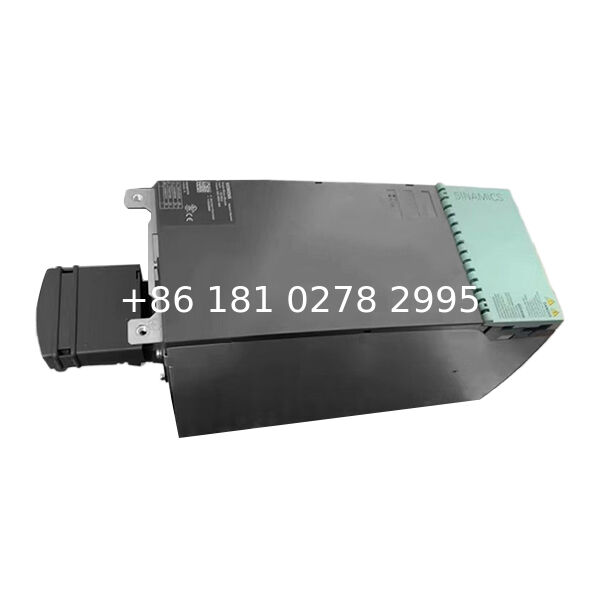

6SL3120-1TE26-0AC0 SINAMICS S120 Single Motor Module 60A Booksize C-Type

The 6SL3120-1TE26-0AC0 is a SINAMICS S120 Single Motor Module designed for high-current servo axis control in modular motion systems.

With a 60 A current rating, Booksize C-Type design and internal air cooling, this motor module provides reliable power control for demanding servo applications.

Compared with standard single motor modules, the 6SL3120-1TE26-0AC0 offers extended safety functions and DRIVE-CLiQ communication for advanced motion system integration.

The compact Booksize structure allows efficient cabinet installation while supporting flexible expansion with control units, line modules and servo motors.

This module is suitable for machine tools, robotics and automation equipment requiring accurate single-axis motion control and reliable operation.

Key Features

• SINAMICS S120 Single Motor Module
• 60 A high-current servo axis control
• Booksize C-Type design
• Extended Safety Integrated functions
• DRIVE-CLiQ communication
• Internal air cooling
• Compact cabinet installation
• Supports modular motion systems

Typical Applications

• CNC machines
• Robotics equipment
• Packaging systems
• Automation machinery
• Production lines

System Function

The 6SL3120-1TE26-0AC0 provides power control for a single servo motor axis.

Main functions:

• Servo motor power management
• Speed and torque regulation
• Axis motion control
• Safety function integration

Drive System Integration

The module works together with:

• Control Unit
• Line Module
• Servo motor
• Additional drive modules

It is not a standalone frequency converter.

Safety Integrated Function

The integrated safety functions support machine applications requiring enhanced safety monitoring.

Advantages:

• Simplified safety configuration
• Reduced external safety components
• Improved machine protection

DRIVE-CLiQ Communication

The DRIVE-CLiQ interface enables communication between drive components.

Functions include:

• Component identification
• Parameter transfer
• System diagnostics

Replacement Identification

Model

6SL3120-1TE26-0AC0

Configuration

Product Type

Single Motor Module

Current Rating

60 A

Voltage

600 V DC Input

Output

400 V AC Three Phase

Format

Booksize C-Type

Protection

IP20

Before replacement, confirm:

• Exact model number
• Current rating
• Motor compatibility
• Safety requirements

Installation Guidelines

Disconnect power before installation.

Verify module compatibility.

Check DC link connection.

Confirm cabinet airflow.

Connect DRIVE-CLiQ communication.

Test servo operation after installation.

FAQ

Q1: What is 6SL3120-1TE26-0AC0?

A1: It is a SINAMICS S120 Single Motor Module designed for servo motion applications.

Q2: What is the current rating?

A2: It provides a 60 A current rating.

Q3: What makes this model different?

A3: It features a Booksize C-Type structure with extended safety functions and DRIVE-CLiQ communication.

Q4: Is it a complete servo drive?

A4: No. It is a motor module used in a modular motion system.

Q5: What cooling method is used?

A5: It uses internal air cooling.

Q6: Where is it commonly used?

A6: It is used in CNC machines, robotics and industrial automation equipment.

Q7: What components are required?

A7: Compatible control units, line modules and servo motors are required.

Q8: Can it operate independently?

A8: No. It must be integrated into a complete SINAMICS S120 system.
