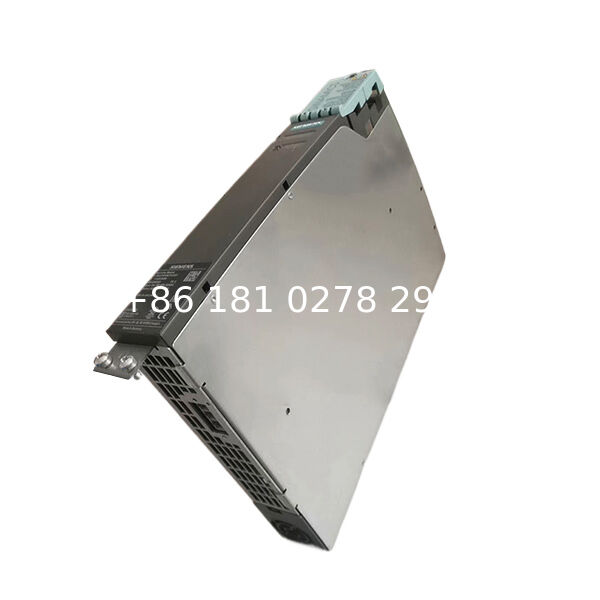

6SL3130-6AE15-0AB1 SINAMICS S120 Smart Line Module 5kW 8.3A

The 6SL3130-6AE15-0AB1 is a compact SINAMICS S120 Smart Line Module designed to supply the common DC link of a small modular drive system.

It converts a three-phase 380–480 V AC mains input into a 600 V DC-link supply with a rated output current of 8.3 A and a power rating of 5 kW.

This module is intended for lower-power drive groups where several compact Motor Modules or machine axes share one centralized DC supply.

Its narrow 50 mm Booksize construction helps reduce cabinet space and allows side-by-side installation with compatible Control Units, Motor Modules and other system components.

The 6SL3130-6AE15-0AB1 includes a Control Voltage Adapter and uses coated internal modules for improved protection of the electronic assemblies.

It is not a Motor Module and does not directly control an individual motor. Its function is to provide line-side power for the shared DC-link system.

Key Features

• 5 kW Smart Line Module
• 8.3 A DC-link output
• Three-phase 380–480 V AC input
• 600 V DC output
• Compact 50 mm Booksize housing
• Internal air cooling
• Control Voltage Adapter included
• Coated internal modules
• Active product for compact drive systems

Typical Applications

• Small packaging machines
• Compact assembly systems
• Printing equipment
• Material feeding systems
• Low-power multi-axis machinery

5 kW Compact Power Supply

The 6SL3130-6AE15-0AB1 provides a 5 kW line-side supply for a modular drive group.

It is suitable for installations with:

• Small servo axes
• Low combined motor power
• Compact machine cabinets
• Moderate acceleration demand
• Limited simultaneous axis loading
• Repetitive production cycles

The correct line module must be selected according to the total DC-link load rather than the power of only one connected motor.

8.3 A DC-Link Output

The module provides a rated DC output current of 8.3 A.

The shared DC link can supply compatible:

• Single Motor Modules
• Double Motor Modules
• Small servo axes
• Auxiliary positioning axes
• Feeding and indexing mechanisms

The total current demand of all connected axes must remain within the approved system limits.

50 mm Booksize Construction

The 5 kW version uses a narrow 50 mm Booksize format.

This construction supports:

• Reduced cabinet width
• Side-by-side module installation
• Short DC-link connections
• Organized machine wiring
• Compact multi-axis layouts
• Easier system expansion

The 50 mm width is an important distinguishing feature compared with higher-power Smart Line Modules.

Smart Line Module Function

The Smart Line Module converts incoming AC power into DC-link energy for the modular drive system.

Its primary functions include:

• Mains-side power conversion
• Shared DC-link supply
• System-status monitoring
• Module diagnostics
• Central power distribution

It does not perform the motor-current, speed or torque control assigned to the Motor Modules and Control Unit.

Control Voltage Adapter

The official product configuration includes a Control Voltage Adapter.

This component supports the control-voltage connection required by the modular drive arrangement.

Before installation, confirm:

• Adapter presence
• Connector condition
• Control-voltage wiring
• Module hardware version
• Cabinet power-supply design

The Control Voltage Adapter should not be confused with a DRIVE-CLiQ cable.

Coated Internal Modules

The AB1 version is supplied with painted or coated internal modules.

The coating provides additional protection for electronic assemblies in suitable industrial environments.

It does not make the module:

• Waterproof
• Dustproof without a cabinet
• Suitable for outdoor installation
• Resistant to every corrosive substance

The module must still be installed inside an appropriate electrical enclosure.

Internal Air Cooling

The 6SL3130-6AE15-0AB1 uses internal air cooling.

Reliable operation requires:

• Vertical mounting
• Clear ventilation paths
• Correct installation spacing
• Sufficient cabinet airflow
• Clean cooling passages
• Approved ambient conditions

Restricted airflow can cause excessive temperature or reduced output capability.

Smart Line Module vs Basic Line Module

Smart Line Module

Compact modular DC-link supply with system integration features.

Basic Line Module

Uses a simpler diode-based line supply and is commonly selected for straightforward non-regenerative power feed.

The correct module type depends on the original machine architecture and required line-side behavior.

Smart Line Module vs Active Line Module

Smart Line Module

Provides a compact DC-link supply for small and medium modular systems.

Active Line Module

Uses actively controlled line-side electronics to provide regulated DC-link operation and mains regeneration.

The 6SL3130-6AE15-0AB1 should not be described as an Active Line Module.

Comparison with 16 kW Smart Line Module

6SL3130-6AE15-0AB1

5 kW

8.3 A

50 mm compact Booksize

Active product

Control Voltage Adapter included

6SL3130-6TE21-6AA4

16 kW

27 A

Higher-current Smart Line Module

Older spare-part configuration

DRIVE-CLiQ cable included

These two models differ substantially in power, output current, hardware generation and scope of supply.

System Integration

A complete system may include:

• Main disconnect
• Protective devices
• Required line components
• Smart Line Module
• Shared DC link
• Control Unit
• Single Motor Modules
• Double Motor Modules
• Servo motors
• Feedback devices

The required protection and line-side components must match the approved system design.

Replacement Identification

Correct Model Number

6SL3130-6AE15-0AB1

Correct Product Type

Smart Line Module

Rated Power

5 kW

Rated DC Output Current

8.3 A

DC-Link Output

600 V DC

Construction

50 mm Booksize

Included Component

Control Voltage Adapter

Before replacement, confirm:

• Complete order number
• AB1 suffix
• Rated power
• DC output current
• Input voltage
• Cabinet width
• Cooling method
• Control Voltage Adapter
• Connected Motor Modules
• Existing DC-link design

Do not select a replacement only according to the Smart Line Module name or physical appearance.

Installation Guidelines

Disconnect the incoming mains supply.

Wait for the DC link to discharge fully.

Verify the absence of hazardous voltage.

Confirm the exact order number.

Inspect the Control Voltage Adapter.

Check mains protective devices.

Inspect DC-link contacts.

Confirm cabinet airflow.

Verify all control-voltage connections.

Check connected Motor Modules.

Restore the approved system configuration.

Measure the DC-link voltage.

Test each axis individually.

Verify all protective functions before production operation.

Installation should be completed by qualified drive-system personnel.

FAQ

Q1: What is 6SL3130-6AE15-0AB1?

A1: It is a 5 kW SINAMICS S120 Smart Line Module used to supply a common DC link.

Q2: What is its rated DC output current?

A2: The rated output current is 8.3 A.

Q3: What input voltage does it accept?

A3: It accepts three-phase 380–480 V AC at 50 or 60 Hz.

Q4: What DC-link voltage does it provide?

A4: It provides a 600 V DC output.

Q5: Does it directly control a motor?

A5: No. It supplies the shared DC link. Connected Motor Modules control the individual motors.

Q6: What is the module width?

A6: The compact Booksize module is 50 mm wide.

Q7: What cooling method is used?

A7: It uses internal air cooling.

Q8: Is a Control Voltage Adapter included?

A8: Yes. The official product configuration includes Control Voltage Adapter components.

Q9: Is a DRIVE-CLiQ cable included?

A9: The official description highlights the Control Voltage Adapter rather than a supplied DRIVE-CLiQ cable. The required communication cable should be confirmed separately.

Q10: Is the model still active?

A10: Yes. It is officially listed as an active product.
