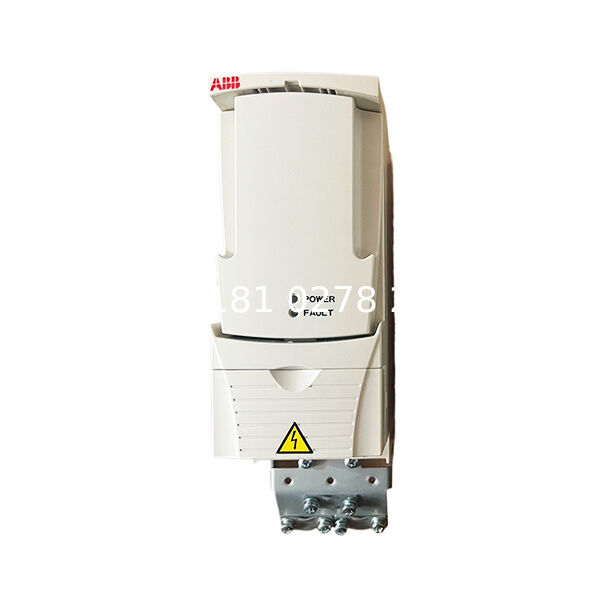

The ABB ACS355-03E-07A3-4 is a compact 3.0 kW variable frequency drive for three-phase 380 to 480 VAC motor systems. With a rated output current of 7.3 A, it is suitable for machinery that requires adjustable motor speed, controlled acceleration, and repeatable operating cycles.
This R1-frame ACS355 drive is designed for compact machine cabinets and standalone motor-control sections. It is commonly used where a standard AC motor must run at different speeds according to process demand, production sequence, material flow, or machine cycle timing.
The ACS355-03E-07A3-4 supports scalar control and sensorless vector control for compatible motors. Its Safe Torque Off function supports machine safety design when correctly integrated into the control circuit.
This product is a single-motor variable frequency drive. It should not be described as a servo amplifier, motion controller, PLC, or multi-axis drive system.
Key Features
3.0 kW motor power rating
7.3 A rated output current
380 to 480 VAC three-phase input
400 V class drive
R1 compact frame
Wall-mounted installation
IP20 enclosure
Scalar and sensorless vector control
Safe Torque Off function
0 to 599 Hz output frequency
Suitable for compact machinery motor control
Typical Applications
Small conveyors
Feeding systems
Centrifugal pumps
Ventilation fans
Mixers and agitators
Packaging auxiliary equipment
Textile machinery
Light material handling equipment
Installation Notes
Install the ACS355-03E-07A3-4 vertically on a solid wall or inside a properly ventilated electrical cabinet.
Confirm that the incoming power supply is three-phase 380 to 480 VAC before wiring.
During commissioning, set the motor nameplate voltage, rated current, frequency, acceleration time, and deceleration time according to the connected motor and application.
Do not describe this model as a low-voltage servo drive or a motion-control controller.
FAQ
Q
What is the rated motor power
A
The rated motor power is 3.0 kW
Q
What is the rated output current
A
The rated output current is 7.3 A
Q
Is this a 230 V drive
A
No it is a 400 V class drive for three-phase 380 to 480 VAC input
Q
Is this a servo drive
A
No it is a variable frequency drive for AC motor speed control
