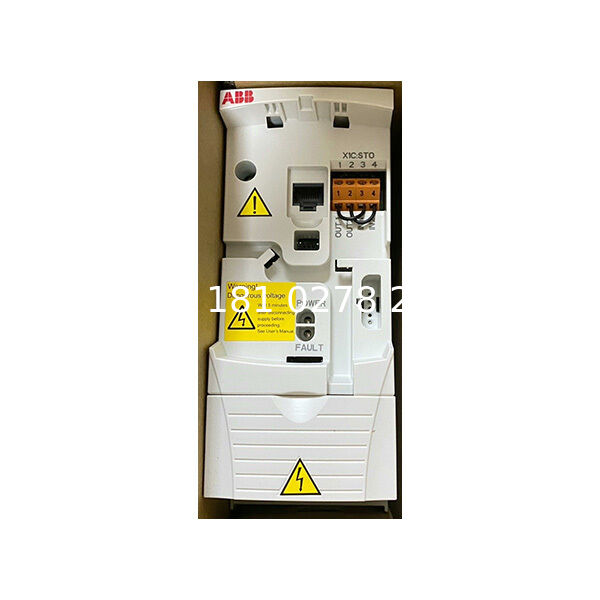

The ABB ACS355-03E-04A1-4 is a compact 1.5 kW variable frequency drive for three-phase 380 to 480 VAC motor systems. With a rated output current of 4.1 A, it is intended for smaller machinery axes and process equipment requiring adjustable motor speed, controlled acceleration, and repeatable operation.
This R1-frame drive is well suited to compact electrical cabinets where installation space is limited. It is used to regulate standard AC motors in equipment such as small conveyors, pumps, fans, feeders, mixers, and light material-handling systems.
Unlike a servo amplifier or PLC controller, the ACS355-03E-04A1-4 is a single-motor AC drive. Its main role is to vary motor speed and support controlled motor operation within a machine or process system.
Key Features
1.5 kW AC motor drive
4.1 A rated output current
380 to 480 VAC three-phase input
400 V class drive
R1 compact frame
Wall-mounted installation
IP20 enclosure
0 to 500 Hz output frequency
Suitable for standard AC motor speed control
Designed for compact machinery applications
Typical Applications
Small belt conveyors
Ventilation fans
Centrifugal pumps
Mixing equipment
Feeding systems
Textile machinery
Packaging auxiliaries
Light-duty material handling
Installation Notes
Install the drive vertically on a solid wall or inside a properly ventilated electrical cabinet.
Confirm that the incoming supply is three-phase 380 to 480 VAC before wiring.
Set the motor nameplate voltage, rated current, rated frequency, and acceleration parameters during commissioning.
Do not describe this model as a servo controller, PLC, power supply, or multi-axis motion controller.
FAQ
Q
What is the rated motor power
A
The rated motor power is 1.5 kW
Q
What is the rated output current
A
The rated output current is 4.1 A
Q
Is this a 230 V drive
A
No it is a 400 V class drive for three-phase 380 to 480 VAC input
Q
Is this a servo drive
A
No it is a variable frequency drive for AC motor speed control
