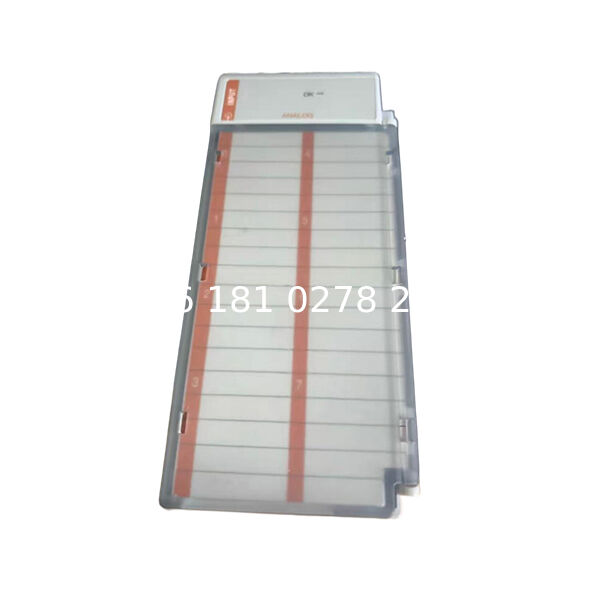

1769-IF8 8-channel analog input module for CompactLogix 5370

1769-IF8 Analog Input Module

Product Overview

The 1769-IF8 is a high‑performance 8‑channel analog input module from the CompactLogix 5370 series and Compact I/O system. Designed for industrial automation applications, this module provides precise acquisition of analog signals from sensors, transducers, and other field devices in manufacturing, process control, and infrastructure automation systems. As a critical component in distributed control architectures, it enables seamless integration with programmable logic controllers (PLCs) such as CompactLogix and MicroLogix 1500, offering flexibility and performance in a compact form factor.

The 1769-IF8 is engineered to operate in challenging industrial environments, delivering high reliability and measurement accuracy. Its modular design allows for straightforward integration into existing systems, reducing wiring complexity and installation time. With support for multiple voltage and current ranges and robust communication protocols, this module serves as a versatile solution for diverse automation needs across industries.

Key Features and Capabilities

Input Configuration and Performance
The 1769-IF8 features 8 discrete analog input channels that can be configured as differential inputs. It offers exceptional signal flexibility, supporting voltage ranges including ±10V DC, 0‑10V DC, 0‑5V DC, and 1‑5V DC, and current ranges including 0‑20mA and 4‑20mA. This wide compatibility ensures the module can interface with various industrial sensors and measurement devices.

The module provides high‑resolution conversion with 16‑bit resolution for unipolar signals and 15‑bit plus sign for bipolar signals, ensuring precise measurement of analog values. It maintains high accuracy with ±0.2% accuracy for voltage inputs and ±0.35% accuracy for current inputs at 25°C (77°F).

Communication and Compatibility
The 1769-IF8 supports major industrial communication protocols including EtherNet/IP, DeviceNet, and ControlNet. This compatibility ensures seamless integration into both new and existing automation networks, facilitating data exchange and control coordination. The module is designed for standard DIN rail mounting and is compatible with the 1769 series PLC backplane.

Protection and Safety Features
To ensure operational reliability, the module incorporates electrical isolation between channels and from the backplane. It provides noise immunity with a common‑mode rejection ratio greater than 60 dB at 50‑60 Hz, ensuring stable operation in electrically noisy industrial environments.

Environmental Robustness
The module is designed to operate effectively in a temperature range of 0°C to 60°C (32°F to 140°F) and can withstand relative humidity levels of 5% to 95% (non‑condensing). It is rated for operational vibration and shock, ensuring reliable performance in challenging industrial conditions.

Technical Specifications

The following table summarises the key technical specifications of the 1769-IF8 analog input module:

System Configuration and Installation

Hardware Integration
The 1769-IF8 module is designed for easy installation on standard DIN rails or panel mounts. Its compact dimensions (118 × 87 × 52.5 mm) allow for high‑density arrangements, maximising space utilisation in control cabinets. The module features removable terminal blocks that simplify wiring and maintenance procedures.

For proper installation, it is recommended to use wires between 22‑14 AWG for solid core and 22‑16 AWG for stranded wire.

Power Requirements
The module operates on a 24V DC power supply and has a current consumption of 120 mA at 5V DC and 70 mA at 24V DC. Its power dissipation is 3.64 W, which should be considered when designing cooling systems for control panels.

Software Configuration
The 1769-IF8 is configured using Studio 5000 Logix Designer or RSLogix 5000 software platforms. These integrated development environments allow for parameter setting, monitoring, and diagnostics. Configuration includes setting input ranges, filter parameters, enabling diagnostic functions, and integrating the module into the broader control system architecture.

Applications

The 1769-IF8 analog input module is suitable for a wide range of industrial automation applications:

• Process Control – Monitoring parameters such as temperature, pressure, flow, and level in chemical, industrial processing, and food processing plants.

• Manufacturing Automation – Acquiring sensor data from production lines, assembly machines, and robotic systems in automotive, electronics, and consumer goods industries.

• Energy Management – Monitoring energy consumption, power quality, and equipment performance in power generation and distribution systems.

• Water and Wastewater Treatment – Measuring pH, conductivity, flow rates, and tank levels in treatment plants.

• Building Automation – Integrating into HVAC control systems for monitoring temperature, humidity, and pressure in commercial and industrial buildings.

Its 8 input channels and wide signal range compatibility make it ideal for applications requiring precise measurement of multiple analog signals with reliable performance.

Comparison and Considerations

When selecting the 1769-IF8 module, consider the following aspects:

• Signal Requirements – The wide voltage and current range compatibility makes it suitable for various sensors; verify compatibility with your specific field devices.

• Accuracy Needs – The high resolution (16‑bit) and accuracy (±0.2% for voltage, ±0.35% for current) are sufficient for most industrial applications.

• Environmental Conditions – The operating temperature range (0‑60°C) is adequate for most industrial environments; harsh conditions may require additional protection.

• System Compatibility – The module works with CompactLogix and MicroLogix 1500 controllers; verify compatibility with your existing system components.

• Power Considerations – Ensure adequate power supply capacity for reliable operation.

For applications requiring different I/O configurations, other modules in the 1769 series are available, such as the 1769‑IF4 (4‑point analog input module) and the 1769‑IF16 (16‑point analog input module).

Conclusion

The 1769-IF8 Analog Input Module is a robust and versatile solution for industrial automation applications requiring precise acquisition of analog signals. Its 8‑channel configuration, wide signal range compatibility, and high‑resolution conversion make it suitable for diverse applications across process control, manufacturing, and infrastructure automation.

With excellent noise immunity, comprehensive protection features, and easy integration into existing control systems, the 1769-IF8 helps improve operational efficiency and reduce downtime. Its rugged design ensures reliable performance even in challenging industrial environments, making it a valuable component in modern automation systems.

For engineers and system integrators seeking a high‑density analog input solution with proven reliability and seamless integration with CompactLogix controllers, the 1769-IF8 represents an excellent choice that combines performance, flexibility, and durability.
