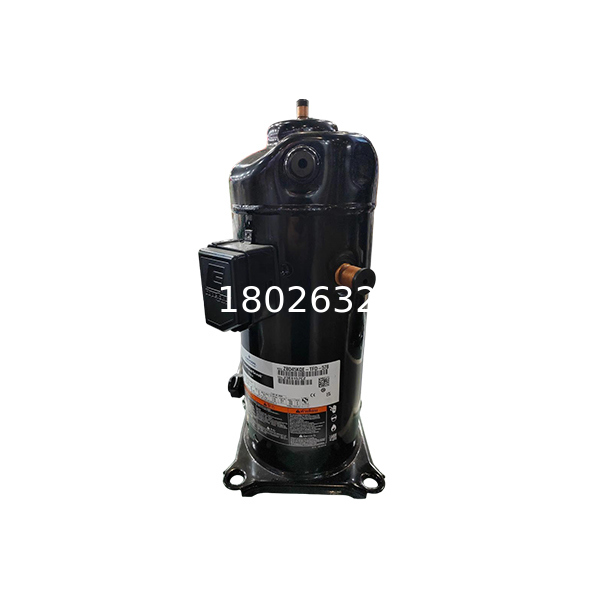

The Copeland ZR19M3E-TWD-961 Scroll Compressor is a high‑performance, energy‑efficient solution designed for a wide range of commercial and industrial cooling applications. With a 2.0 HP motor, this compressor delivers reliable and consistent cooling for systems that require moderate capacity. Whether used in refrigeration, HVAC, or process cooling, the ZR19M3E-TWD-961 is engineered to meet the demands of businesses looking for a compressor that combines efficiency, durability, and flexibility in a compact package.
Built with Copeland’s industry‑leading scroll technology, this compressor is designed to maximise energy savings, reduce maintenance costs, and provide quiet, reliable operation. This detailed overview explores the key features, technical specifications, benefits, and applications of the ZR19M3E-TWD-961.
Key Features and Benefits
1. Energy‑Efficient Performance
The ZR19M3E-TWD-961 Scroll Compressor is designed with energy efficiency as a priority. Its advanced scroll technology reduces internal friction, improves refrigerant flow, and minimises energy consumption. This allows businesses to save on electricity costs, especially in applications that require constant cooling, such as refrigeration units and air conditioning systems.
The compressor is compatible with refrigerants such as R134A, R407C, and R404A, which are known for their efficiency and reduced environmental impact compared to older types. The combination of low energy consumption and compatibility with environmentally conscious refrigerants makes this compressor a sustainable choice.
2. Quiet and Low‑Vibration Operation
One of the major advantages of the ZR19M3E-TWD-961 is its quiet and low‑vibration operation. Traditional piston compressors can generate significant noise and vibrations, which can be disruptive in environments such as retail spaces, office buildings, and residential areas. The scroll technology in this compressor minimises both noise and vibration, making it ideal for noise‑sensitive environments.
3. Compact and Space‑Saving Design
Despite its 2.0 HP motor, the ZR19M3E-TWD-961 is designed with a compact footprint, allowing it to fit into systems with space constraints. In commercial refrigeration units, HVAC systems, or industrial cooling setups where space is limited, this compressor offers powerful performance without occupying unnecessary room. Its space‑saving design also facilitates integration into existing systems.
4. Reliability and Durability
The ZR19M3E-TWD-961 is engineered to provide reliable and long‑lasting performance in both commercial and industrial environments. Built with high‑quality materials and components, it is designed to withstand continuous‑duty operation. Whether used in refrigeration, HVAC, or process cooling systems, this compressor offers stable performance even in challenging conditions, reducing the likelihood of unexpected breakdowns and minimising downtime.
5. Low Maintenance and Easy Servicing
Compared to traditional piston compressors, the scroll design has fewer moving parts, which means less wear and tear. This results in reduced maintenance requirements and lower service costs. When maintenance is needed, servicing is straightforward, allowing technicians to perform routine checks and adjustments with ease.
6. Refrigerant Flexibility
The ZR19M3E-TWD-961 is compatible with multiple refrigerants, including R134A, R407C, and R404A, making it versatile and adaptable to various systems. This flexibility allows businesses to integrate the compressor into existing systems or retrofit older equipment without major infrastructure changes. It also helps meet evolving environmental standards as refrigerant regulations change.
Technical Specifications
The following table summarises the technical specifications of the Copeland ZR19M3E-TWD-961 Scroll Compressor:
| Specification | Details |
|---|---|
| Manufacturer | Copeland |
| Product Type | Scroll Compressor |
| Model Number | ZR19M3E-TWD-961 |
| Compressor Type | Scroll |
| Motor Power | 2.0 HP (1.5 kW) |
| Cooling Capacity (kW) | 3.5 to 4.5 (depending on application) |
| Power Input (kW) | 1.7 to 2.0 |
| Operating Pressure | Max. 30 bar |
| Evaporating Temperature | –10°C to +5°C |
| Condenser Temperature | 40°C |
| Refrigerant Compatibility | R134A, R407C, R404A |
| Motor Type | 3‑phase induction motor |
| Nominal Voltage | 200‑230V / 380V / 460V; 60 Hz, 3‑phase |
| Current (A) | 6.0 – 8.0 |
| Sound Pressure (dB(A)) | 65 – 70 |
| Weight (kg) | Approximately 50 kg |
| Dimensions (L × W × H) | 500 mm × 500 mm × 700 mm |
| Oil Charge (L) | 2.0 |
| Suction / Discharge Size | 3/4 inch (suction), 3/4 inch (discharge) |
Applications
The Copeland ZR19M3E-TWD-961 Scroll Compressor is suitable for a broad range of applications, including:
1. Commercial Refrigeration
The compressor is ideal for refrigerated display cases, walk‑in coolers, and cold storage rooms. Its efficient performance helps keep temperature‑sensitive goods, such as food and beverages, fresh while minimising energy consumption.
2. HVAC Systems
For HVAC systems in office buildings, hotels, shopping malls, and other commercial spaces, this compressor provides reliable, energy‑efficient cooling. Its compact size and quiet operation are advantageous where space is limited and noise reduction is important.
3. Process Cooling
In industries such as electronics manufacturing and automotive production, the ZR19M3E-TWD-961 provides precise and reliable cooling for critical processes. It helps maintain the required temperature for sensitive materials and products, ensuring quality standards are met.
Advantages and Benefits
The ZR19M3E-TWD-961 offers several significant advantages:
-
Energy Savings – Its efficient design reduces energy consumption, making it a cost‑effective solution for continuous cooling.
-
Quiet Operation – Scroll technology minimises noise and vibration, suitable for noise‑sensitive environments.
-
Durability – Built to last, delivering reliable performance in both commercial and industrial settings.
-
Flexibility – Compatible with multiple refrigerants, offering adaptability to changing regulations.
-
Low Maintenance – Fewer moving parts reduce service costs and extend system lifespan.
Maintenance and Serviceability
Routine maintenance helps ensure optimal performance. Important tasks include:
-
Refrigerant Monitoring – Regularly check refrigerant levels to maintain cooling efficiency.
-
Oil Monitoring – Check oil levels and replace as needed to prevent friction and ensure smooth operation.
-
System Checks – Monitor system pressures and temperatures to keep the compressor within desired parameters.
-
Routine Cleaning – Keep the compressor and surrounding components clean to maintain efficient performance.
Copeland’s service network provides access to replacement parts and technical support, minimising downtime.
Environmental Considerations
The ZR19M3E-TWD-961 is designed with sustainability in mind. Its energy‑efficient scroll technology reduces electricity consumption, helping lower operational carbon footprint. Compatibility with refrigerants such as R134A, R407C, and R404A supports compliance with modern environmental standards.
Conclusion
The Copeland ZR19M3E-TWD-961 Scroll Compressor is a reliable, energy‑efficient solution for a wide range of commercial and industrial cooling applications. With its 2.0 HP motor, quiet operation, low maintenance requirements, and versatile refrigerant compatibility, it offers an ideal choice for optimising cooling systems. Whether used in refrigeration, HVAC, or process cooling, this compressor delivers long‑lasting performance, reduces energy costs, and enhances system efficiency.
