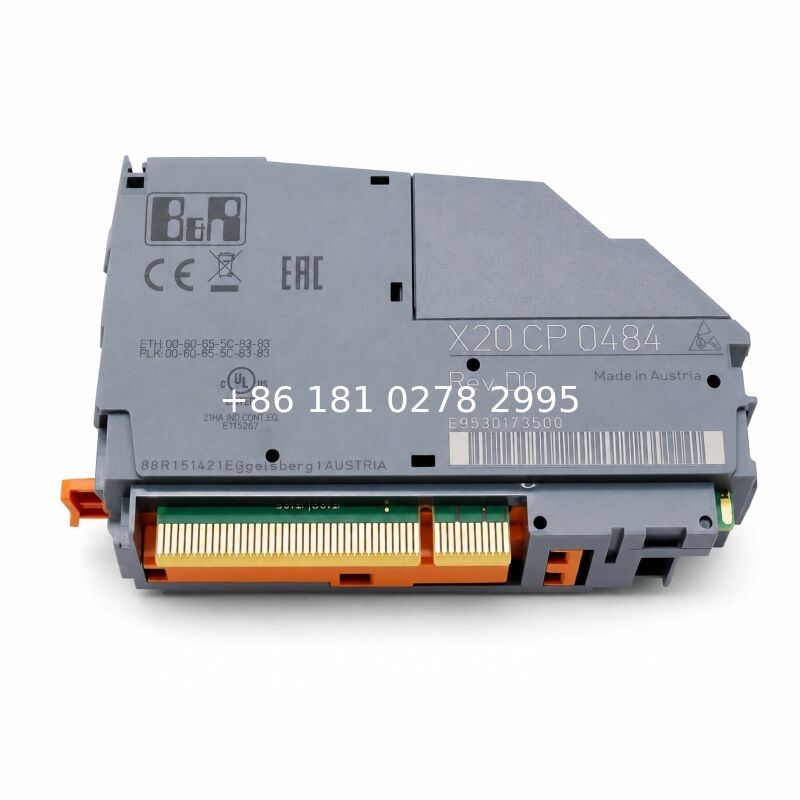

B&R X20CP0484 Compact-S PLC 667MHz 2GB Flash

The B&R X20CP0484 is a high-performance Compact-S controller with a 667 MHz ARM processor and a 0.4 ms minimum task-class cycle. Its 2 GB onboard flash provides twice the application storage of the X20CP0483, while 64 kB FRAM offers additional capacity for remanent process variables.

This model is intended for compact machines that require faster logic execution and more application storage without moving to a physically larger Atom-based X20 CPU. Compared with the X20CP0484-1, it has the same processor, flash and FRAM but uses 256 MB instead of 512 MB RAM.

Key Features

• 667 MHz ARM Cortex-A9 processor
• 0.4 ms minimum task-class cycle
• 256 MB DDR3 RAM
• 2 GB onboard eMMC application memory
• 64 kB FRAM with long-term retention
• Expandable with up to two X20 interface modules

Typical Applications

• High-speed compact packaging equipment
• Multi-axis POWERLINK machines
• Printing and converting machinery
• Data-intensive assembly stations
• Compact machine controllers with multiple fieldbus connections

FAQ

Q: What is the difference between X20CP0484 and X20CP0484-1?

A: Both use a 667 MHz processor, 2 GB flash and 64 kB FRAM. The X20CP0484 has 256 MB RAM, while the X20CP0484-1 has 512 MB RAM.

Q: Does the X20CP0484 include a base and power supply?

A: No. The Compact-S base, X20PS9600 or X20PS9602 power supply and X20TB12 terminal block are separate system components.

Q: Is X20CP0484 suitable for motion control?

A: Yes. Its POWERLINK V2 interface and 0.4 ms minimum task cycle make it suitable for coordinated control of compatible B&R motion systems.
