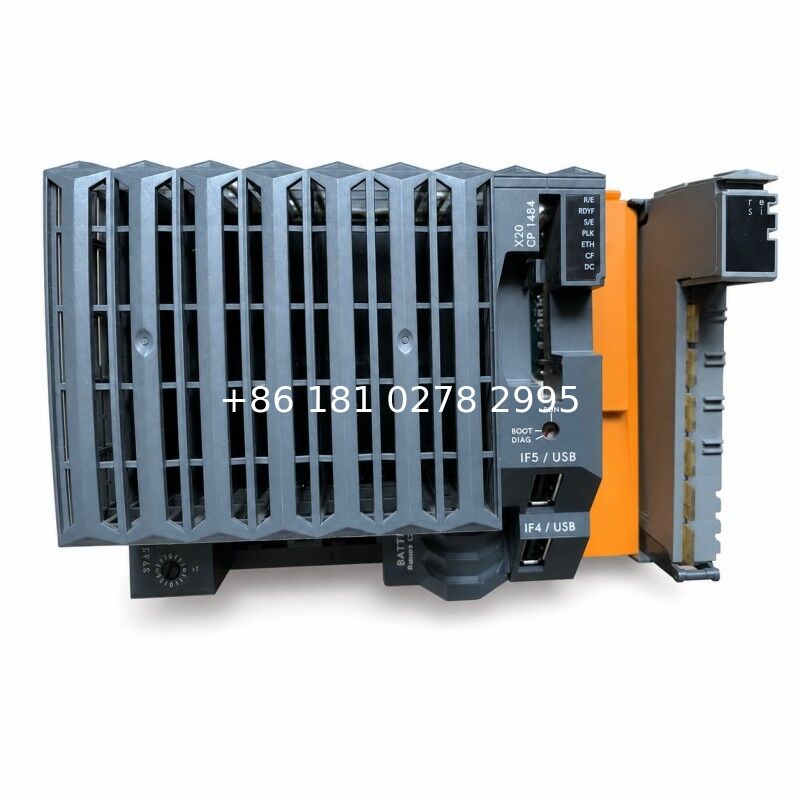

B&R X20CP1484 Celeron PLC CPU with POWERLINK

The B&R X20CP1484 is a compact Celeron-based X20 CPU for established machine-control platforms. It combines a separate I/O processor with onboard Ethernet, POWERLINK, RS232, USB and X2X Link interfaces.

Compared with the X20CP1485, the X20CP1484 has lower CPU performance but retains the same compact one-slot architecture and 32 MB DRAM. It is particularly relevant for maintaining or replacing installed X20 systems whose software and hardware configuration was developed around this controller generation.

Key Features

• Intel Celeron processor with dedicated I/O processing
• 32 MB DRAM and 1 MB SRAM
• Removable CompactFlash application storage
• One modular interface slot
• Onboard POWERLINK and Ethernet
• Fan-free industrial design

Typical Applications

• Replacement of installed X20CP1484 controllers
• Packaging and processing machines
• Conveyor and handling equipment
• Compact machine-control cabinets
• Legacy POWERLINK automation systems

FAQ

Q: Is the CompactFlash card included?

A: The application CompactFlash card is ordered separately. Its program and configuration must match the target machine.

Q: What is the difference between X20CP1484 and X20CP1485?

A: Both have 32 MB DRAM and one modular interface slot, but the X20CP1485 provides higher Celeron processor performance.

Q: Is X20CP1484 a direct replacement for every X20 CPU?

A: No. Hardware configuration, Automation Runtime version, application software, interface modules and CompactFlash compatibility must be checked before replacement.
