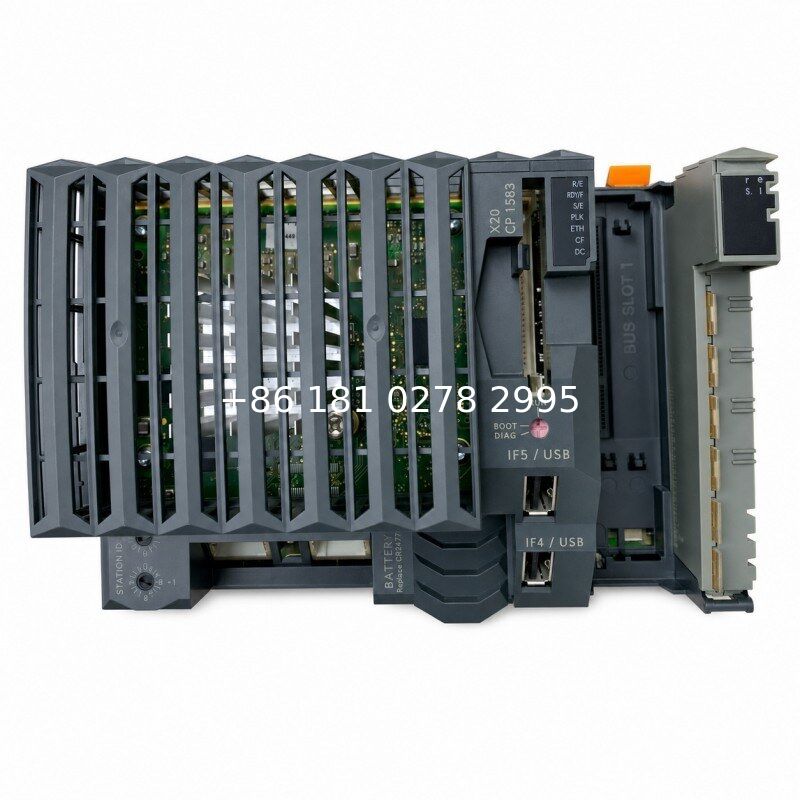

B&R X20CP1583 Atom 333MHz PLC CPU with POWERLINK

Name: B&R X20CP1583 Atom 333MHz PLC CPU with POWERLINK
Brand: Dengfeng (Zhaoqing) Trading Co., Ltd
SKU: X20CP1583
Availability: InStock

Product Details

Place of Origin: Austria

Brand Name: B&R

Model Number: X20CP1583

Payment & Shipping Terms

Minimum Order Quantity: 1 piece

Packaging Details: Carton packaging

Delivery Time: 3-7 working days

Payment Terms: D/A, D/P, T/T, Western Union

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Product Family:	X20 PLC	Controller Type:	Atom-based X20 Controller
Processor:	Intel Atom E620T With Integrated I/O Processor	Clock Frequency:	333 MHz
RAM:	128 MB DDR2 SDRAM	User Memory:	1 MB SRAM
Remanent Variables:	Up To 64 KB	Application Storage:	One CompactFlash Slot
Communication Interfaces:	RS232, Gigabit Ethernet, POWERLINK, 2 USB And X2X Link	Modular Interface Slots:	1
Shortest Task Cycle:	800 µs	Controller Redundancy:	Not Supported
Dimensions:	150 × 99 × 85 Mm	Protection Rating:	IP20

Product Family:	X20 PLC
Controller Type:	Atom-based X20 Controller
Processor:	Intel Atom E620T With Integrated I/O Processor
Clock Frequency:	333 MHz
RAM:	128 MB DDR2 SDRAM
User Memory:	1 MB SRAM
Remanent Variables:	Up To 64 KB
Application Storage:	One CompactFlash Slot
Communication Interfaces:	RS232, Gigabit Ethernet, POWERLINK, 2 USB And X2X Link
Modular Interface Slots:	1
Shortest Task Cycle:	800 µs
Controller Redundancy:	Not Supported
Dimensions:	150 × 99 × 85 Mm
Protection Rating:	IP20

Description

B&R X20CP1583 Atom 333MHz PLC CPU with POWERLINK

The B&R X20CP1583 is an entry-level Atom-based X20 CPU with a compact one-slot mechanical format. It provides Gigabit Ethernet, POWERLINK, RS232, USB and X2X Link interfaces for machine control and distributed I/O communication.

Compared with the older X20CP1484 family, the X20CP1583 offers an Atom processor, more RAM and Gigabit Ethernet. Compared with the X20CP3583, it provides similar base processing and memory specifications but only one modular interface slot, resulting in a narrower controller.

Key Features

Intel Atom E620T processor at 333 MHz
128 MB DDR2 SDRAM
800 µs minimum task-class cycle
Gigabit Ethernet and POWERLINK
One modular interface slot
Fanless 150 mm-wide controller format

Typical Applications

Compact production machinery
Distributed X20 I/O systems
POWERLINK motion applications
Machine retrofit projects
Replacement of installed X20CP1583 CPUs

FAQ

Q: What is the main difference between X20CP1583 and X20CP3583?

A: Both use a 333 MHz Atom processor and 128 MB RAM. The X20CP1583 has one modular interface slot, while the wider X20CP3583 has three.

Q: Does X20CP1583 support controller redundancy?

A: No. Controller redundancy is not supported by this model.

Q: Is application storage built into the CPU?

A: The controller uses a removable CompactFlash card for the application. The card must be selected separately.
