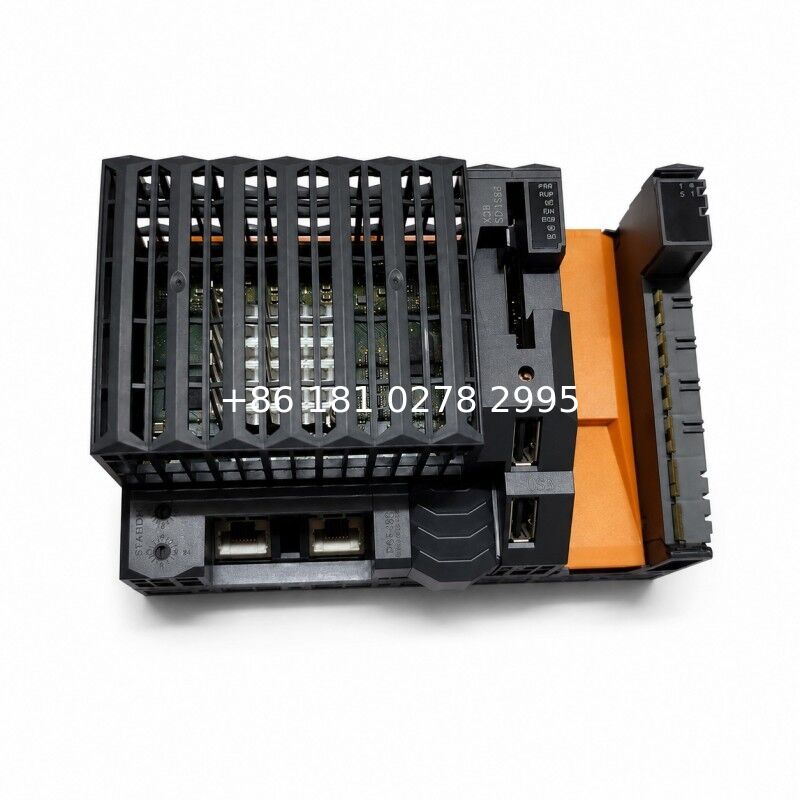

B&R X20CP1586 Atom 1.6GHz PLC CPU with POWERLINK

The B&R X20CP1586 is the high-performance member of the one-slot X20CP15xx controller family. Its 1.6 GHz Intel Atom E680T processor, 512 MB RAM and 100 µs minimum task-class cycle support demanding logic, communication and coordinated machine-control tasks.

Compared with the X20CP1583, the X20CP1586 provides a substantially faster processor, four times the RAM and more remanent capacity. Compared with the X20CP3586, it offers the same core performance in a narrower housing but has one instead of three modular interface slots and does not support redundancy.

Key Features

• 1.6 GHz Intel Atom E680T processor
• 512 MB DDR2 SDRAM
• 100 µs minimum task-class cycle
• Up to 1 MB remanent variables
• Gigabit Ethernet and POWERLINK
• One modular interface slot in a compact housing

Typical Applications

• High-speed packaging machines
• Multi-axis POWERLINK systems
• Printing and converting equipment
• Complex process skids
• Performance upgrades for X20CP15xx systems

FAQ

Q: How does X20CP1586 differ from X20CP3586?

A: Their main CPU and memory specifications are similar. The X20CP1586 has one modular interface slot and no redundancy support, while the X20CP3586 has three slots and supports controller redundancy.

Q: Is X20CP1586 suitable for high-speed control?

A: Yes. Its 1.6 GHz processor and 100 µs minimum task-class cycle make it suitable for demanding machine-control applications.

Q: Does the CPU contain onboard application flash?

A: No. Application storage is provided through a CompactFlash card.
