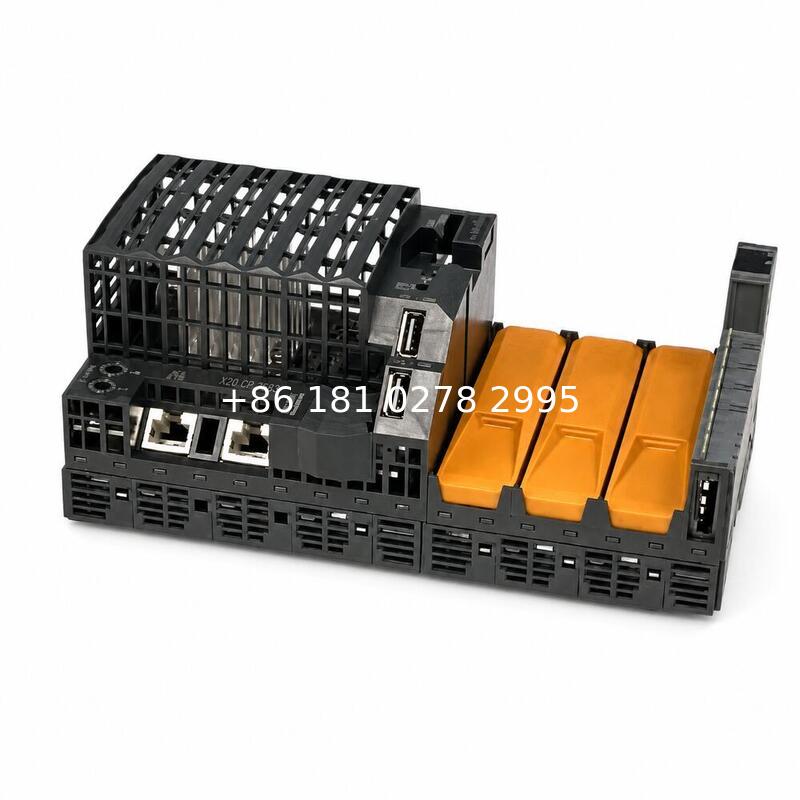

B&R X20CP3583 Atom PLC CPU with 3 Interface Slots

Name: B&R X20CP3583 Atom PLC CPU with 3 Interface Slots
Brand: Dengfeng (Zhaoqing) Trading Co., Ltd
SKU: X20CP3583
Availability: InStock

Product Details

Place of Origin: Austria

Brand Name: B&R

Model Number: X20CP3583

Payment & Shipping Terms

Minimum Order Quantity: 1 piece

Packaging Details: Carton packaging

Delivery Time: 3-7 working days

Payment Terms: D/A, D/P, T/T, Western Union

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Product Family:	X20 PLC	Controller Type:	Three-slot X20 Controller
Processor:	Intel Atom E620T With Integrated I/O Processor	Clock Frequency:	333 MHz
RAM:	128 MB DDR2 SDRAM	User Memory:	1 MB SRAM
Remanent Variables:	Up To 64 KB	Application Storage:	One CompactFlash Slot
Communication Interfaces:	RS232, Gigabit Ethernet, POWERLINK, 2 USB And X2X Link	Modular Interface Slots:	3
Shortest Task Cycle:	800 µs	Controller Redundancy:	Not Supported
Dimensions:	200 × 99 × 85 Mm	Protection Rating:	IP20

Product Family:	X20 PLC
Controller Type:	Three-slot X20 Controller
Processor:	Intel Atom E620T With Integrated I/O Processor
Clock Frequency:	333 MHz
RAM:	128 MB DDR2 SDRAM
User Memory:	1 MB SRAM
Remanent Variables:	Up To 64 KB
Application Storage:	One CompactFlash Slot
Communication Interfaces:	RS232, Gigabit Ethernet, POWERLINK, 2 USB And X2X Link
Modular Interface Slots:	3
Shortest Task Cycle:	800 µs
Controller Redundancy:	Not Supported
Dimensions:	200 × 99 × 85 Mm
Protection Rating:	IP20

Description

B&R X20CP3583 Atom PLC CPU with 3 Interface Slots

The B&R X20CP3583 combines entry-level Atom processing with three modular interface slots. It is intended for machines that need several fieldbus or serial communication options but do not require controller redundancy or the higher CPU performance of the X20CP3584, X20CP3585 or X20CP3586.

Its key difference from the X20CP1583 is interface capacity. Both use a 333 MHz processor and 128 MB RAM, but the X20CP3583 provides three modular slots in a wider 200 mm housing.

Key Features

333 MHz Intel Atom processor
128 MB DDR2 RAM
Three modular interface slots
Gigabit Ethernet and POWERLINK
800 µs minimum task-class cycle
Dedicated processor for background I/O handling

Typical Applications

Machines using several industrial networks
Multi-vendor equipment integration
Production-line communication gateways
Distributed I/O and motion systems
Replacement of installed X20CP3583 controllers

FAQ

Q: Why choose X20CP3583 instead of X20CP1583?

A: Choose X20CP3583 when more modular communication interfaces are required. It has three interface slots instead of one.

Q: Does X20CP3583 support redundancy?

A: No. For redundancy, consider a compatible X20CP3584, X20CP3585, X20CP3586 or X20CP3685 configuration.

Q: Is the CompactFlash application card included?

A: The application CompactFlash card is a separate component and should be matched to the controller and machine application.
