B&R X20CP3584 Atom 600MHz Redundant PLC Controller

Name: B&R X20CP3584 Atom 600MHz Redundant PLC Controller
Brand: Dengfeng (Zhaoqing) Trading Co., Ltd
SKU: X20CP3584
Availability: InStock

Product Details

Place of Origin: Austria

Brand Name: B&R

Model Number: X20CP3584

Payment & Shipping Terms

Minimum Order Quantity: 1 piece

Packaging Details: Carton packaging

Delivery Time: 3-7 working days

Payment Terms: D/A, D/P, T/T, Western Union

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Product Family:	X20 PLC	Controller Type:	Redundancy-capable X20 Controller
Processor:	Intel Atom With Integrated I/O Processor	Clock Frequency:	600 MHz
RAM:	256 MB DDR2 SDRAM	User Memory:	1 MB SRAM
Application Storage:	One CompactFlash Slot	Communication Interfaces:	RS232, Gigabit Ethernet, POWERLINK, 2 USB And X2X Link
Modular Interface Slots:	3	Controller Redundancy:	Supported
POWERLINK Function:	Managing Or Controlled Node With Poll Response Chaining	Cooling:	Fanless
Dimensions:	200 × 99 × 85 Mm	Protection Rating:	IP20

Product Family:	X20 PLC
Controller Type:	Redundancy-capable X20 Controller
Processor:	Intel Atom With Integrated I/O Processor
Clock Frequency:	600 MHz
RAM:	256 MB DDR2 SDRAM
User Memory:	1 MB SRAM
Application Storage:	One CompactFlash Slot
Communication Interfaces:	RS232, Gigabit Ethernet, POWERLINK, 2 USB And X2X Link
Modular Interface Slots:	3
Controller Redundancy:	Supported
POWERLINK Function:	Managing Or Controlled Node With Poll Response Chaining
Cooling:	Fanless
Dimensions:	200 × 99 × 85 Mm
Protection Rating:	IP20

Description

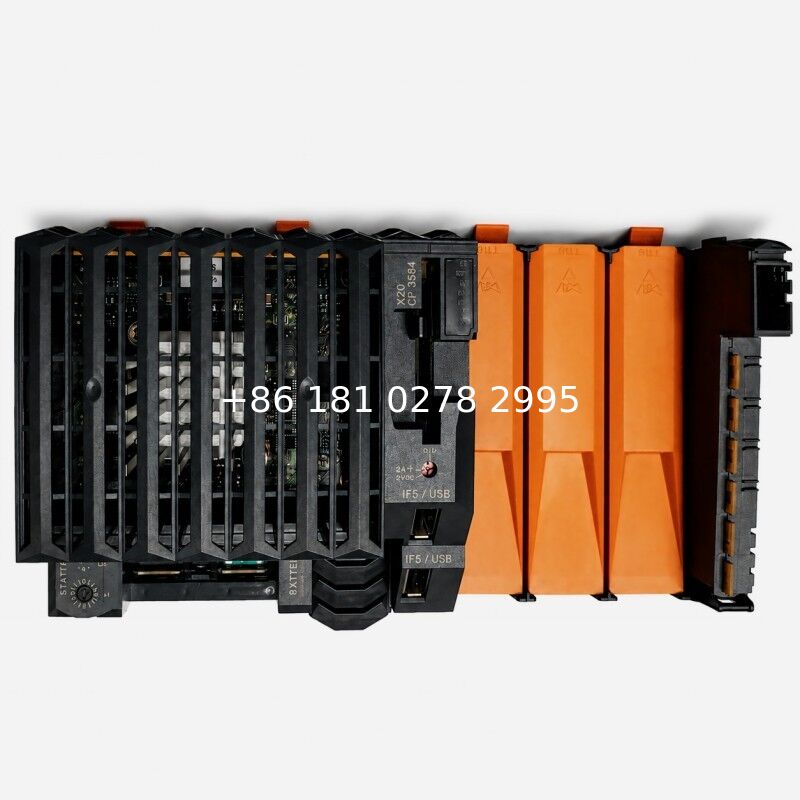

B&R X20CP3584 Atom 600MHz Redundant PLC Controller

The B&R X20CP3584 is a three-slot Atom controller that adds redundancy capability to the X20CP35xx platform. Its 600 MHz processor and 256 MB RAM provide more control capacity than the entry-level X20CP3583.

This model is positioned below the faster X20CP3585 and X20CP3586. It is suitable where multiple communication modules and controller redundancy are more important than maximum CPU performance.

Key Features

600 MHz Intel Atom processor
256 MB DDR2 RAM
Three modular interface slots
Controller redundancy support
Gigabit Ethernet and POWERLINK
Fanless industrial construction

Typical Applications

Redundant process-control systems
Machines with several fieldbus networks
Production cells requiring higher availability
Material-handling installations
Retrofit of X20CP3584-based systems

FAQ

Q: What does redundancy support mean?

A: The controller can be used in a properly engineered redundant B&R control system. Redundancy requires compatible hardware, software and system configuration; one CPU alone does not create a redundant system.

Q: How does X20CP3584 differ from X20CP3583?

A: The X20CP3584 increases CPU speed and RAM and supports controller redundancy. Both provide three modular interface slots.

Q: When should X20CP3585 be selected instead?

A: Select X20CP3585 when the application needs the same three-slot and redundancy architecture with higher 1 GHz processing performance.
