B&R X20CP3585 Atom 1GHz Redundant PLC Controller

Name: B&R X20CP3585 Atom 1GHz Redundant PLC Controller
Brand: Dengfeng (Zhaoqing) Trading Co., Ltd
SKU: X20CP3585
Availability: InStock

Product Details

Place of Origin: Austria

Brand Name: B&R

Model Number: X20CP3585

Payment & Shipping Terms

Minimum Order Quantity: 1 piece

Packaging Details: Carton packaging

Delivery Time: 3-7 working days

Payment Terms: D/A, D/P, T/T, Western Union

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Product Family:	X20 PLC	Controller Type:	Redundancy-capable X20 Controller
Processor:	Intel Atom E640T With Integrated I/O Processor	Clock Frequency:	1 GHz
RAM:	256 MB DDR2 SDRAM	User Memory:	1 MB SRAM
Remanent Variables:	Up To 256 KB	Application Storage:	One CompactFlash Slot
Communication Interfaces:	RS232, Gigabit Ethernet, POWERLINK, 2 USB And X2X Link	Modular Interface Slots:	3
Shortest Task Cycle:	200 µs	Controller Redundancy:	Supported
Dimensions:	200 × 99 × 85 Mm	Protection Rating:	IP20

Product Family:	X20 PLC
Controller Type:	Redundancy-capable X20 Controller
Processor:	Intel Atom E640T With Integrated I/O Processor
Clock Frequency:	1 GHz
RAM:	256 MB DDR2 SDRAM
User Memory:	1 MB SRAM
Remanent Variables:	Up To 256 KB
Application Storage:	One CompactFlash Slot
Communication Interfaces:	RS232, Gigabit Ethernet, POWERLINK, 2 USB And X2X Link
Modular Interface Slots:	3
Shortest Task Cycle:	200 µs
Controller Redundancy:	Supported
Dimensions:	200 × 99 × 85 Mm
Protection Rating:	IP20

Description

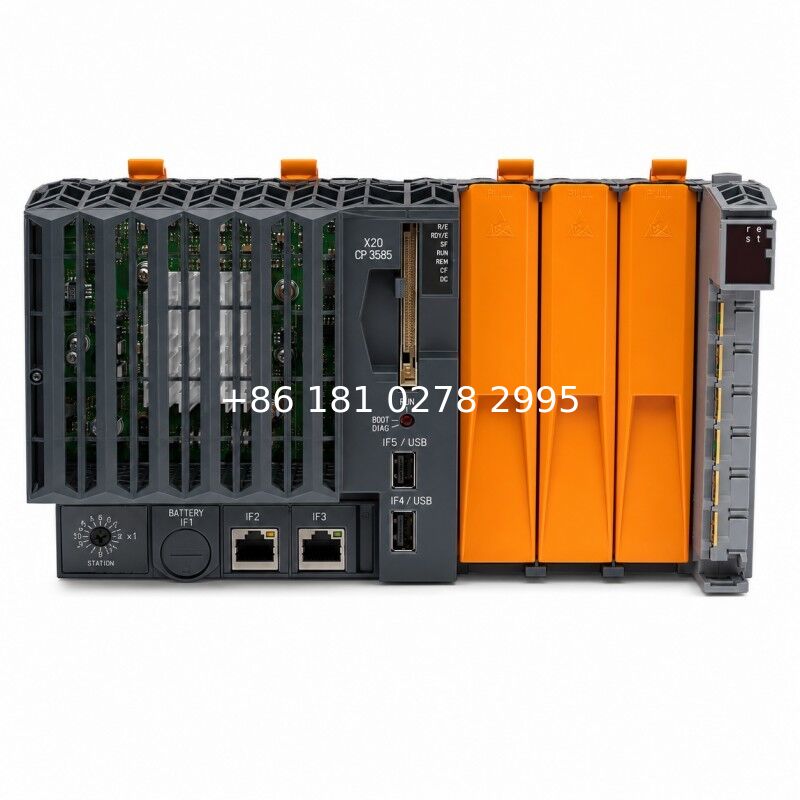

B&R X20CP3585 Atom 1GHz Redundant PLC Controller

The B&R X20CP3585 is a mid-to-high-performance three-slot controller with a 1 GHz Intel Atom processor and a 200 µs minimum task-class cycle. It combines broad communication expansion with support for controller redundancy.

Compared with the X20CP3584, this model increases processor speed from 600 MHz to 1 GHz while retaining 256 MB RAM. Compared with the X20CP3586, it has less CPU speed, RAM and remanent memory, making it a balanced choice between cost and performance.

Key Features

1 GHz Intel Atom E640T processor
200 µs minimum task-class cycle
256 MB DDR2 RAM
Three modular interface slots
Controller redundancy capability
Gigabit Ethernet, POWERLINK and X2X Link

Typical Applications

Redundant manufacturing cells
Packaging and processing lines
Material-handling systems
Multi-network machine controllers
X20CP3585 replacement projects

FAQ

Q: What is the difference between X20CP3585 and X20CP3586?

A: The X20CP3585 has a 1 GHz CPU, 256 MB RAM and a 200 µs minimum task cycle. The X20CP3586 increases these to 1.6 GHz, 512 MB and 100 µs.

Q: Can all three slots accept fieldbus modules?

A: The slots support compatible X20 interface modules. The exact module combination must be checked against the B&R hardware configuration and power requirements.

Q: Does X20CP3585 include onboard flash?

A: It uses a removable CompactFlash card for application storage rather than fixed onboard application flash.
