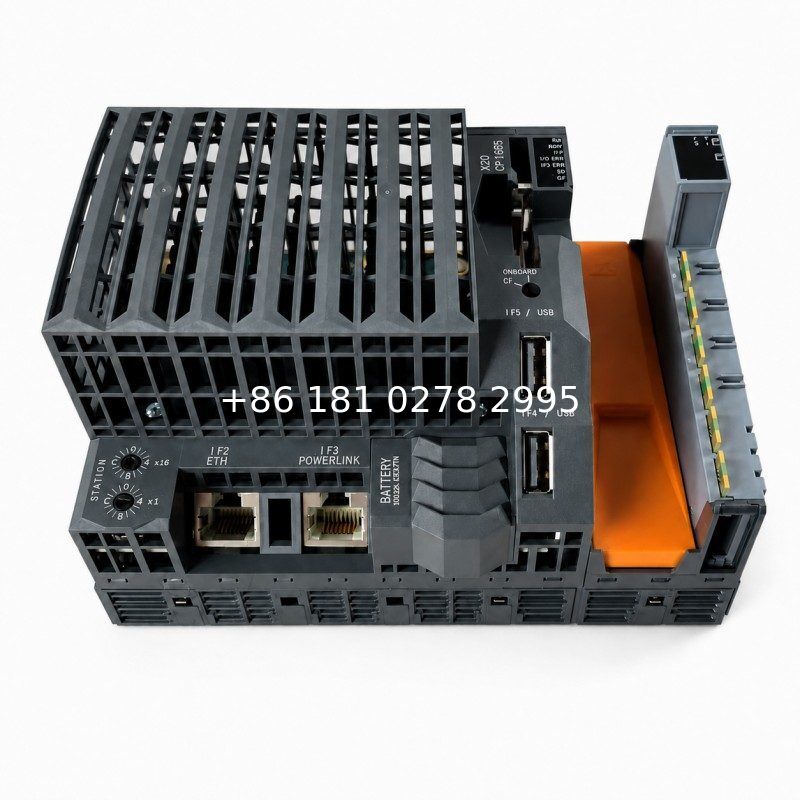

B&R X20CP1685 Atom 800MHz PLC CPU with 512MB RAM

Name: B&R X20CP1685 Atom 800MHz PLC CPU with 512MB RAM
Brand: Dengfeng (Zhaoqing) Trading Co., Ltd
SKU: X20CP1685
Availability: InStock

Product Details

Place of Origin: Austria

Brand Name: B&R

Model Number: X20CP1685

Payment & Shipping Terms

Minimum Order Quantity: 1 piece

Packaging Details: Carton packaging

Delivery Time: 3-7 working days

Payment Terms: D/A, D/P, T/T, Western Union

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Product Family:	X20 PLC	Controller Type:	Modern One-slot X20 Controller
Processor:	Intel Atom E3915 With Integrated I/O Processor	Clock Frequency:	800 MHz
RAM:	512 MB LPDDR4 SDRAM	User Memory:	1 MB SRAM
Application Memory:	1 GB EMMC Onboard Flash	Removable Storage:	One CompactFlash Slot
Communication Interfaces:	RS232, Gigabit Ethernet, POWERLINK V2, 2 USB And X2X Link	Modular Interface Slots:	1
Controller Redundancy:	Not Supported	Cooling:	Fanless
Dimensions:	150 × 99 × 85 Mm	Protection Rating:	IP20

Product Family:	X20 PLC
Controller Type:	Modern One-slot X20 Controller
Processor:	Intel Atom E3915 With Integrated I/O Processor
Clock Frequency:	800 MHz
RAM:	512 MB LPDDR4 SDRAM
User Memory:	1 MB SRAM
Application Memory:	1 GB EMMC Onboard Flash
Removable Storage:	One CompactFlash Slot
Communication Interfaces:	RS232, Gigabit Ethernet, POWERLINK V2, 2 USB And X2X Link
Modular Interface Slots:	1
Controller Redundancy:	Not Supported
Cooling:	Fanless
Dimensions:	150 × 99 × 85 Mm
Protection Rating:	IP20

Description

B&R X20CP1685 Atom 800MHz PLC CPU with 512MB RAM

The B&R X20CP1685 is a modern one-slot X20 CPU based on the Intel Atom E3915 platform. It combines 512 MB LPDDR4 RAM with 1 GB onboard eMMC flash while retaining a CompactFlash slot for removable application storage.

Compared with the older X20CP1585 generation, the X20CP1685 uses newer LPDDR4 memory and integrated flash. Compared with the X20CP3685, it has the same processor and main memory but only one modular interface slot and no redundancy support.

Key Features

800 MHz Intel Atom E3915 processor
512 MB LPDDR4 SDRAM
1 GB onboard eMMC flash
Additional CompactFlash slot
One modular interface slot
Gigabit Ethernet and POWERLINK V2

Typical Applications

Modern compact machine controllers
Packaging and assembly systems
POWERLINK servo applications
Machines requiring onboard flash storage
Upgrade projects from older X20CP15xx controllers

FAQ

Q: What is the difference between X20CP1685 and X20CP3685?

A: Both use an 800 MHz Atom processor, 512 MB LPDDR4 and 1 GB eMMC. The X20CP1685 has one interface slot and no redundancy, while the X20CP3685 has three slots and supports redundancy.

Q: Does X20CP1685 still support CompactFlash?

A: Yes. It provides onboard eMMC flash and one CompactFlash slot.

Q: Is X20CP1685 a direct replacement for X20CP1585?

A: Not automatically. Software version, hardware configuration, interface modules, storage and application compatibility must be verified before replacement.
