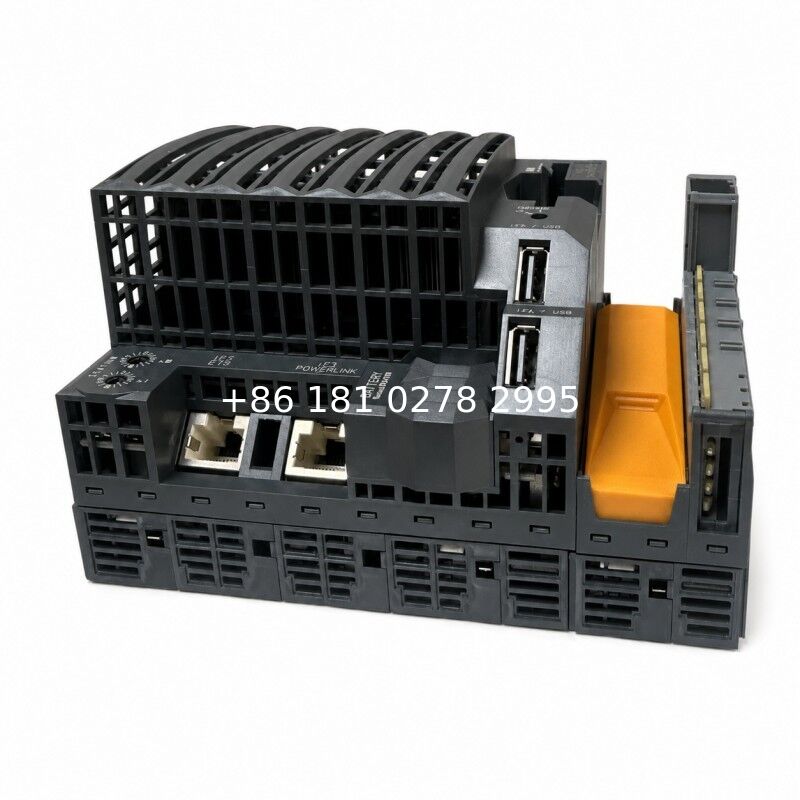

B&R X20CP1686X Atom 1.3GHz TSN PLC with 1GB RAM

Name: B&R X20CP1686X Atom 1.3GHz TSN PLC with 1GB RAM
Brand: Dengfeng (Zhaoqing) Trading Co., Ltd
SKU: X20CP1686X
Availability: InStock

Product Details

Place of Origin: Austria

Brand Name: B&R

Model Number: X20CP1686X

Payment & Shipping Terms

Minimum Order Quantity: 1 piece

Packaging Details: Carton packaging

Delivery Time: 3-7 working days

Payment Terms: D/A, D/P, T/T, Western Union

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Product Family:	X20 PLC	Controller Type:	High-performance One-slot X20 Controller
Processor:	Intel Atom E3930 With Integrated I/O Processor	Clock Frequency:	1.3 GHz
RAM:	1 GB LPDDR4 SDRAM	User Memory:	1 MB SRAM
Application Memory:	2 GB EMMC Onboard Flash	Remanent Variables:	Up To 1 MB
Removable Storage:	One CompactFlash Slot	Communication Interfaces:	RS232, Gigabit Ethernet TSN, POWERLINK V2, 2 USB And X2X Link
Modular Interface Slots:	1	Shortest Task Cycle:	100 µs
Controller Redundancy:	Not Supported	Protection Rating:	IP20

Product Family:	X20 PLC
Controller Type:	High-performance One-slot X20 Controller
Processor:	Intel Atom E3930 With Integrated I/O Processor
Clock Frequency:	1.3 GHz
RAM:	1 GB LPDDR4 SDRAM
User Memory:	1 MB SRAM
Application Memory:	2 GB EMMC Onboard Flash
Remanent Variables:	Up To 1 MB
Removable Storage:	One CompactFlash Slot
Communication Interfaces:	RS232, Gigabit Ethernet TSN, POWERLINK V2, 2 USB And X2X Link
Modular Interface Slots:	1
Shortest Task Cycle:	100 µs
Controller Redundancy:	Not Supported
Protection Rating:	IP20

Description

B&R X20CP1686X Atom 1.3GHz TSN PLC with 1GB RAM

The B&R X20CP1686X is the highest-performance one-slot CPU in this first X20 batch. It features a 1.3 GHz Intel Atom E3930 processor, 1 GB LPDDR4 RAM, 2 GB onboard eMMC flash and a 100 µs minimum task-class cycle.

Its distinguishing feature is the combination of high memory capacity and Gigabit Ethernet with TSN capability in a compact 150 mm controller. Compared with the X20CP1685, it offers a faster processor, twice the RAM, twice the onboard flash and faster real-time execution.

Key Features

1.3 GHz Intel Atom E3930 processor
1 GB LPDDR4 SDRAM
2 GB eMMC onboard flash
Gigabit Ethernet with TSN capability
100 µs minimum task-class cycle
Compact one-interface-slot design

Typical Applications

High-speed packaging and converting machines
Data-intensive automation systems
Advanced machine networking
POWERLINK motion-control platforms
PLC applications requiring larger memory capacity

FAQ

Q: What does the X suffix distinguish on X20CP1686X?

A: This model combines the higher-performance Atom E3930 platform with 1 GB LPDDR4, 2 GB eMMC and Gigabit Ethernet with TSN capability.

Q: How does X20CP1686X differ from X20CP1685?

A: It increases CPU speed from 800 MHz to 1.3 GHz, RAM from 512 MB to 1 GB and onboard flash from 1 to 2 GB. It also provides a 100 µs minimum task cycle.

Q: Does X20CP1686X support controller redundancy?

A: No. It is a one-slot controller without redundancy support.
