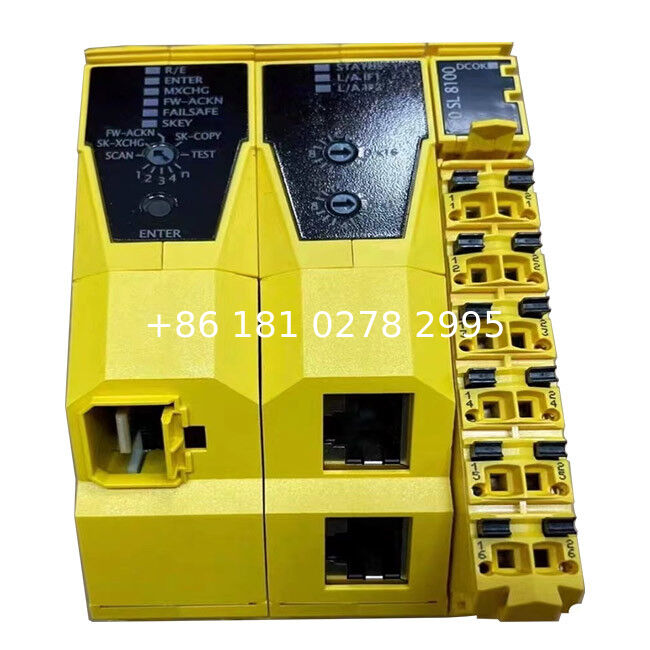

The B&R X20SL8100 is an X20 SafeLOGIC safety controller used in machine safety and industrial automation systems. It is designed to coordinate safety-related communication in an openSAFETY network and can work as an openSAFETY manager for up to 100 SafeNODEs. This makes it suitable for machines and production lines that require centralized safety logic, safe communication, and reliable safety-related control.

This module supports safety applications created with Automation Studio and SafeDESIGNER. When correctly configured, it can be used in safety-related applications up to PL e or SIL 3. The X20SL8100 helps manage safety parameters, monitor safety-related modules, and support consistent configuration during service or module replacement.

The X20SL8100 includes one POWERLINK interface and an integrated 2-port hub. It also uses SafeKEY removable application memory, which is important for storing safety application data and license-related functions. The standard delivery configuration includes the X20TB52 terminal block and the X20AC0SR1 right end cover plate. Required SafeKEY and SafeLOGIC function range should be selected according to the actual machine safety application.

This safety controller is commonly used in packaging machines, material handling systems, robotics cells, automated production lines, textile machinery, printing equipment, and industrial machinery safety systems. It is suitable for emergency stop circuits, safety door monitoring, safety communication networks, safe machine option management, and safety controller replacement projects.

For replacement applications, the complete model number X20SL8100 should be checked carefully. Similar X20 safety controllers, such as X20SL8101 or X20SL8110, may have different bus controller functions, interface options, or system requirements. Before ordering, please confirm the original module label, SafeKEY configuration, POWERLINK network layout, Automation Studio project, SafeDESIGNER version, safety function license, and machine cabinet installation space.

Dengfeng supplies B&R X20 safety controllers, PLC modules, I/O modules, servo drives, industrial PCs, Power Panel units, ACOPOS modules, motors, cables, and automation spare parts for machine repair and production line maintenance. Before shipment, we can check the model label, connector condition, housing appearance, terminal block condition, and packaging according to your request.

Key Features

• B&R X20SL8100 X20 SafeLOGIC safety controller
• openSAFETY manager for up to 100 SafeNODEs
• Programmable with Automation Studio and SafeDESIGNER
• Suitable for safety applications up to PL e / SIL 3 when correctly configured
• POWERLINK interface for safety-related communication
• Integrated 2-port hub
• SafeKEY removable application memory
• Supports parameter and configuration management
• Supports safe machine option management through SafeOPTION
• Fanless design with approx. 4.3W power consumption
• Compact X20 format for cabinet installation
• Suitable for machine safety control, repair, retrofit, and spare parts supply

Typical Applications

The B&R X20SL8100 safety controller can be used in:

• Machine safety control systems
• Packaging machinery safety systems
• Material handling and conveyor safety control
• Robotics cell safety communication
• Production line emergency stop systems
• Safety door and guard monitoring systems
• Textile and printing machinery
• Automated assembly equipment
• Machine retrofit projects
• X20 safety controller replacement and maintenance

FAQ

Q1: What is B&R X20SL8100?
A1: It is an X20 SafeLOGIC safety controller used for openSAFETY communication and machine safety control in industrial automation systems.

Q2: Is X20SL8100 a standard PLC CPU?
A2: No. It is mainly a safety controller / openSAFETY gateway, not a general-purpose PLC CPU for normal machine logic.

Q3: How many SafeNODEs can X20SL8100 manage?
A3: It can work as an openSAFETY manager for up to 100 SafeNODEs.

Q4: What software is used to program this module?
A4: Safety applications are created using Automation Studio and SafeDESIGNER.

Q5: What safety level can this controller support?
A5: When correctly configured and used in a suitable safety system, it can support safety-related applications up to PL e or SIL 3.

Q6: Does X20SL8100 have a POWERLINK interface?
A6: Yes. It includes one POWERLINK interface and an integrated 2-port hub.

Q7: Does this module require SafeKEY?
A7: Yes. SafeKEY and the SafeLOGIC range of functions should be selected according to the actual safety application and project configuration.

Q8: What accessories are included with X20SL8100?
A8: The standard delivery configuration includes the X20TB52 terminal block and the X20AC0SR1 right end cover plate.

Q9: Can X20SL8100 be used as a replacement module?
A9: Yes. It can be used for replacement, but the SafeKEY, software version, safety project, POWERLINK network, and machine configuration must be checked before installation.

Q10: What information should I provide before ordering?
A10: Please provide clear photos of the original module label, SafeKEY label, cabinet installation position, POWERLINK connection, and machine alarm information. This helps confirm compatibility.
