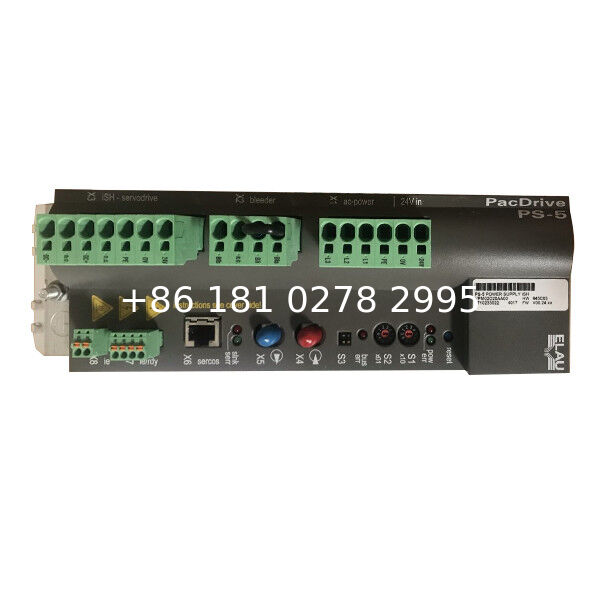

The ELAU PS-5/10/20/400/00 is a PacDrive iSH power supply module for distributed servo installations. It receives the incoming AC supply and creates the common DC bus and 24VDC control supply required by connected iSH servo components.
This unit is installed at the beginning of the iSH power architecture. It can feed the downstream DB-5 distribution boxes, which then route power and control signals to connected iSH servo motors. One PS-5 can support up to ten DB-5 units when the overall current calculation and machine configuration are within the permitted limits.
Unlike an MC-4 servo amplifier, the PS-5 does not control one individual motor axis. Unlike a C400 or C600 controller, it does not execute PLC or motion programs. Its primary role is to establish and manage the common power infrastructure for a PacDrive iSH servo network.
The integrated braking resistor supports controlled dissipation of regenerative energy generated by connected servo axes. Correct DC bus sizing, protective earth wiring, supply selection, and compatible PacDrive cabling are important before commissioning.
Key Features
PacDrive iSH power supply module
220 to 480 VAC input range
270 to 680 VDC common DC bus
20 A continuous DC bus current with three-phase supply
40 A peak DC bus current for one second
Integrated 24VDC control power distribution
Supports up to ten DB-5 distribution boxes
Integrated braking resistor
23 Ohm braking resistance
200 W continuous braking capacity
28 kW peak braking capacity
Designed for distributed iSH servo systems
Typical Applications
Multi-axis packaging machinery
Cartoning and labeling equipment
Servo conveyor systems
Printing and converting machinery
Automated assembly lines
Material handling machines
PacDrive iSH retrofit projects
Distributed servo motor installations
Installation Notes
Install the PS-5 inside a grounded industrial control cabinet.
Confirm whether the machine uses three-phase or single-phase input before wiring, because the permitted continuous DC bus current differs between the two supply configurations.
Connect compatible DB-5 distribution boxes and iSH components according to the PacDrive wiring topology. Do not treat the PS-5 as a standalone 24VDC power supply or as an individual motor drive.
Before replacement, verify the existing machine wiring, SERCOS ring configuration, DC bus connection, braking-energy requirement, and hardware reference on the original nameplate.
FAQ
Q
Is PS-5/10/20/400/00 a servo drive
A
No it is the power supply module for a PacDrive iSH servo system
Q
What is the maximum DC bus current
A
It provides 20 A continuous DC bus current with three-phase supply and 10 A with single-phase supply
Q
Can one PS-5 connect directly to iSH motors
A
The PS-5 normally supplies the PacDrive iSH network through DB-5 distribution boxes
Q
How many DB-5 units can be connected
A
Up to ten DB-5 distribution boxes can be connected within the permitted system design limits
Q
Is VPM02D20AA00 the same device
A
Yes it is the later reference corresponding to PS-5 power supply iSH 13130265
