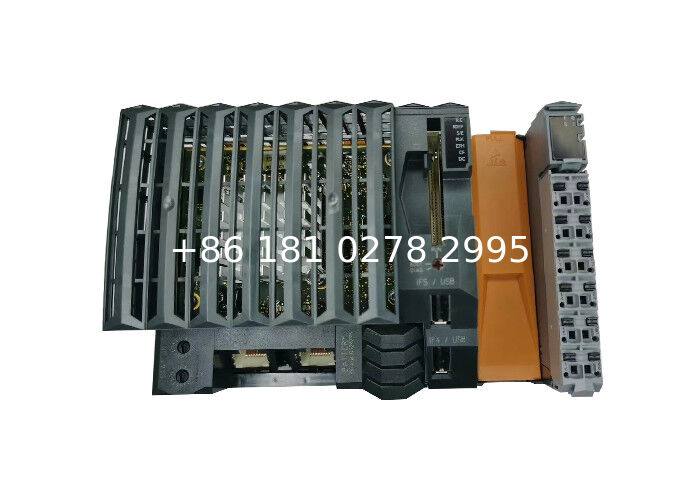

B&R X20CP1584 PLC CPU Controller with Ethernet POWERLINK and USB Interface

The B&R X20CP1584 is a high-performance PLC CPU controller designed for industrial automation systems based on the X20 I/O platform.

It integrates real-time control processing with Ethernet POWERLINK communication, enabling deterministic control of distributed automation systems. The controller supports modular expansion through X20 I/O modules and is designed for machine-level and system-level automation applications.

The unit provides integrated Ethernet connectivity and USB service interface for configuration, programming, and diagnostics. It operates as the central processing unit in X20-based control architectures.

This controller is commonly used in machine automation, production systems, and industrial control applications requiring real-time performance and modular scalability.

Key Features

Industrial PLC CPU for X20 system
Integrated Ethernet POWERLINK interface
Real-time deterministic control capability
USB programming and service port
Modular X20 I/O expansion support
DIN rail mounted controller design
Fanless passive cooling architecture
High-speed industrial communication
Stable real-time automation processing
IP20 protection for cabinet installation

Typical Applications

Industrial machine automation
Packaging machinery control systems
Conveyor and material handling systems
Production line automation
Process control systems
Factory automation cabinets
Distributed I/O control architectures

Installation Notes

The X20CP1584 must be installed on a DIN rail inside a control cabinet. Ensure stable 24 VDC power supply and correct grounding. Use compatible X20 I/O modules for system expansion and verify POWERLINK network configuration before commissioning.

FAQ

Q: Is this a PLC or I/O module?
A: It is a PLC CPU controller, not an I/O module.

Q: Does it support Ethernet communication?
A: Yes, it includes integrated Ethernet and POWERLINK.

Q: Can it work without X20 I/O modules?
A: It can operate as CPU, but requires I/O modules for field control.

Q: Is cooling required?
A: No fan is required; it uses passive cooling.
