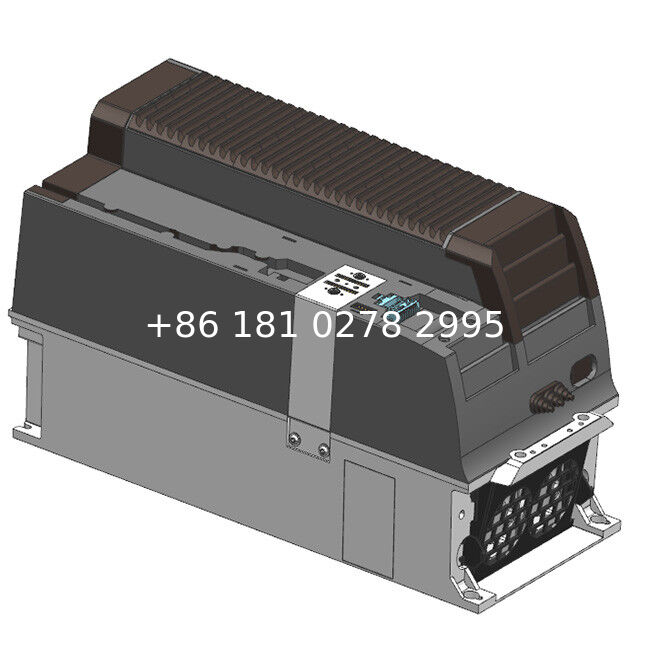

The 6SL3210-1KE15-8AF2 is a G120C compact converter used for industrial motor control and variable frequency drive applications. It is designed for control cabinets that require compact installation, stable motor speed regulation, integrated communication, and practical wiring for machine automation systems.

This model supports 3AC 380-480V input with +10% / -20% voltage tolerance and 47-63Hz input frequency. It provides 2.2kW rated power under low overload operation and 1.5kW rated power under high overload operation. This makes it suitable for many common motor control tasks, including conveyors, pumps, fans, packaging machinery, material handling equipment, and general industrial drive systems.

The 6SL3210-1KE15-8AF2 includes an integrated class A filter, PROFINET-PN fieldbus, Safe Torque Off function, and an external 24V I/O interface. The standard I/O configuration includes 6 digital inputs, 2 digital outputs, 1 analog input, and 1 analog output. The IP20 / UL open type design is suitable for installation inside protected electrical cabinets.

For replacement applications, the complete model number 6SL3210-1KE15-8AF2 should be checked carefully. Similar G120C converters may have different rated power, overload class, communication interface, filter configuration, I/O configuration, frame size, and voltage range. Before ordering, please confirm the original drive label, motor rated power, input voltage, fieldbus type, safety function wiring, cabinet space, and control circuit requirement.

Dengfeng supplies compact converters, variable frequency drives, servo drives, motor modules, PLC modules, operator panels, industrial control boards, sensors, cables, and automation spare parts for machine repair and production line maintenance. Before shipment, we can check the model label, terminal condition, housing appearance, cooling area, and packaging according to your request.

Key Features

• 6SL3210-1KE15-8AF2 G120C compact converter
• 3AC 380-480V input, 47-63Hz
• 2.2kW rated power under low overload operation
• 1.5kW rated power under high overload operation
• Integrated filter class A
• PROFINET-PN fieldbus communication
• Safe Torque Off integrated
• External 24V I/O interface
• 6 digital inputs, 2 digital outputs, 1 analog input, 1 analog output
• IP20 / UL open type for control cabinet installation
• FSAA compact frame size
• Suitable for conveyors, pumps, fans, packaging machinery, and VFD replacement

Typical Applications

The 6SL3210-1KE15-8AF2 compact converter can be used in:

• Conveyor speed control
• Pump control systems
• Fan and blower speed regulation
• Packaging machinery
• Material handling equipment
• Small machine tools
• Production line automation
• Control cabinet retrofit projects
• Variable frequency drive replacement
• Industrial spare parts maintenance

FAQ

Q1: What is 6SL3210-1KE15-8AF2?
A1: It is a G120C compact converter used for industrial AC motor speed control and automation cabinet applications.

Q2: What is the rated power of this model?
A2: It is rated at 2.2kW under low overload operation and 1.5kW under high overload operation.

Q3: What input voltage does it support?
A3: It supports 3AC 380-480V input with +10% / -20% voltage tolerance.

Q4: What communication interface does this model use?
A4: It uses PROFINET-PN fieldbus communication.

Q5: Does 6SL3210-1KE15-8AF2 include Safe Torque Off?
A5: Yes. Safe Torque Off is integrated.

Q6: What I/O configuration does it have?
A6: It has 6 digital inputs, 2 digital outputs, 1 analog input, and 1 analog output.

Q7: What protection rating does this converter have?
A7: It is IP20 / UL open type and should be installed inside a protected electrical cabinet.

Q8: Is 6SL3210-1KE15-8AF2 the same as 6SL3210-1KE12-3AF2?
A8: No. 6SL3210-1KE15-8AF2 is a 2.2kW low overload model, while 6SL3210-1KE12-3AF2 is a smaller 0.75kW low overload model. They should not be mixed on one product page.

Q9: Can this converter be used as a replacement part?
A9: Yes. It can be used for replacement when the full model number, rated power, input voltage, communication interface, I/O wiring, and cabinet installation dimensions are compatible.

Q10: What should I check before ordering?
A10: Please check the original drive label, motor nameplate, input voltage, fieldbus type, control wiring, safety circuit, frame size, and cabinet space.

Q11: Can you help confirm compatibility?
A11: Yes. Please send photos of the original drive label, motor nameplate, wiring terminals, and cabinet installation position before ordering.
