MPL-B230P-VJ72AA Servo Motor with Absolute Multi Turn Encoder for Accurate Positioning and Feedback

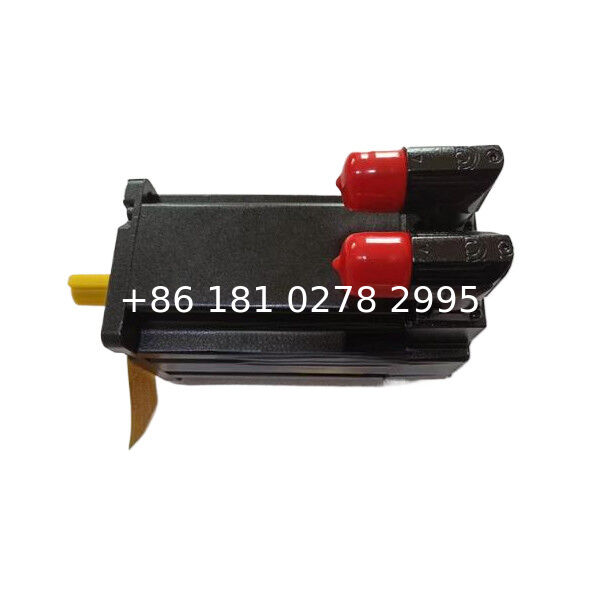

Allen Bradley servo motor standard model MPL-B230P-VJ72AA

Product series and component types

Product Series: MPL Low Inertia Series
Component type: Motion control component, specifically a rotary servo motor

Installation and Configuration

Adopting flange installation and metric standard, without brake, the motor end connector is standard SpeedTec DIN (Type M7), equipped with keyway on the motor shaft for easy connection with the transmission device, without shaft seal.

feedback system

The motor uses an absolute multi turn encoder, which can record the complete number of rotations and the current absolute position of the motor; Every 128 sine/cosine cycles, providing high-resolution position feedback, using Hiperface protocol for communication.

performance parameter

Rated speed: 5000 revolutions per minute (rpm)
Maximum speed: also 5000 revolutions per minute, indicating that the motor can still operate stably at this speed
Magnet stacking length: Although labeled as "30=76.2mm", the "30" here may refer to the internal number or code, and the actual magnet stacking length is 76.2mm
Frame size: Frame 2 / Frame 075, This motor belongs to the Frame 2 series, with a frame size of 75 millimeters
Voltage level: 400 volts AC (V AC)
Torque: 2.1 Newton meters (Nm), representing the torque that the motor can continuously output under rated conditions
Maximum torque: 8.2 Newton meters (Nm), indicating the maximum torque that the motor can withstand in a short period of time

compatibility

Compatible with Kinetix 5500, 6200/6500, 6000, 300, 350, 2000, 7000, and Ultra 3000 series drivers

Rated power and inertia

Continuous rated power: 0.86 kilowatts (kW), indicating the sustainable output power of the motor under rated conditions
Rotor inertia: 6.3E-05 kilograms per square meter (kg m ²), affecting the dynamic response speed of the motor

work environment

Maximum operating temperature: 40 degrees Celsius (° C)
Minimum operating temperature: 0 degrees Celsius (° C)
Storage temperature range: -30 to 70 degrees Celsius (-30 ° C to 70 ° C)
Relative humidity range: 5% to 95% RH (relative humidity)

physical characteristics

Weight: 2.6 kilograms (kg)
Protection level: IP50 (minimum standard); If equipped with optional shaft seals and using environmentally sealed cable connectors, it can achieve IP66 rating

Environmental adaptability

Maximum impact acceleration: 20g
Maximum impact duration: 6 milliseconds (ms)
Maximum vibration acceleration: 2.5 meters per second ² (m/s ²)
Maximum operating vibration frequency: 2000 Hertz (Hz)

The Allen Bradley motor MPL-B230P-VJ72AA is a low inertia high-performance servo motor with a compact size, making it a high-quality choice for your automation equipment.
