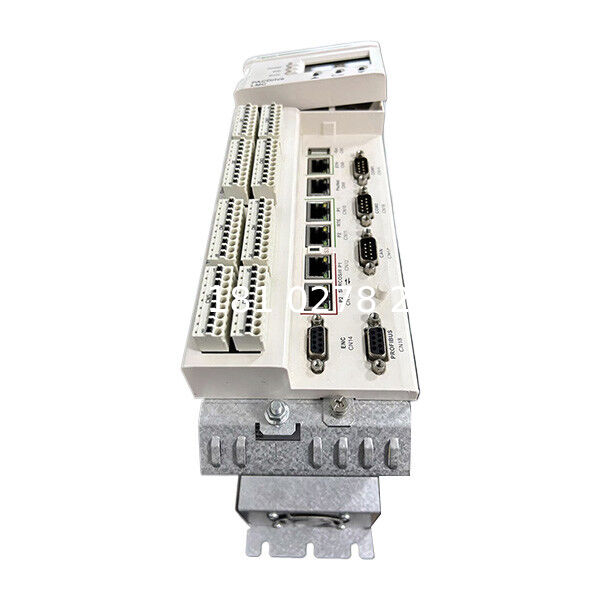

Schneider Electric LMC300CAA1000 PACDrive 3 Motion Controller:

Introduction

The Schneider Electric LMC300CAA1000 is a specialized motion controller within the PacDrive 3 ecosystem, designed to deliver precision control for machines requiring up to 8 servo axes. As a compact yet powerful solution, this controller bridges the gap between entry-level automation needs and high-performance multi-axis systems. This technical review explores its functional capabilities, technical specifications, competitive advantages, and ideal application domains, providing a comprehensive resource for automation engineers and system integrators.

Core Functionalities

1. Multi-Axis Motion Control

The LMC300CAA1000 excels in synchronizing up to 8 servo axes with sub-millisecond precision, making it suitable for moderate-complexity automation tasks. Its 1ms network update rate ensures seamless coordination between axes, critical for applications like:

• Pick-and-Place Robotics: Managing robotic arm movements with sub-millimeter accuracy.
• Converting Machines: Synchronizing unwinding, printing, and rewinding processes in label or film production.
• CNC Machining: Controlling spindle and toolpath movements in compact CNC routers.

2. Advanced I/O Configuration

The controller features a versatile input/output architecture:

• 20 Digital Inputs (IEC 61131-2 Type 1):
  • 4 dedicated interrupt inputs for high-speed event detection (0.1–1ms configurable filtering).
  • 16 touch probe inputs (100µs filtering) for quality inspection and part positioning.
• 2 Analog Inputs:
  • Voltage (-10–10V) and current (-20–20mA) inputs with 12-bit resolution for sensor data acquisition.
• 16 Digital Outputs (250mA) and 2 Analog Outputs for actuator control and signal conditioning.

3. Real-Time Networking

With dual real-time Ethernet ports (RT-Ethernet) and Sercos III support, the LMC300CAA1000 enables deterministic communication across distributed I/O and drives. Additional interfaces include:

• CANopen (SUB-D 9) for legacy device integration.
• Profibus DP for PLC interoperability.
• USB 2.0 for configuration and firmware updates.

4. Scalable Memory and Processing

Equipped with 512MB DDR2 RAM and 128kB NVRAM, the controller balances performance and cost-efficiency for mid-range applications. This memory configuration supports:

• Storing complex motion programs (e.g., cam profiles, gearing logic).
• Buffering real-time data for up to 255 virtual axes (via PacDrive 3’s software extensions).

Technical Specifications

Competitive Advantages

1. Cost-Effective 8-Axis Solution

Unlike the 16-axis LMC402CAA10000, the LMC300CAA1000 targets applications where full-scale scalability is unnecessary, offering a 30% lower acquisition cost while retaining PacDrive 3’s motion engine. This makes it ideal for:

• Entry-Level Packaging Lines: Single-machine solutions for flow wrappers or cartoners.
• OEM Equipment: Custom machinery with defined axis requirements.

2. Compact Form Factor

At 100mm width, the controller fits into space-constrained control cabinets, a critical factor for:

• Retrofit Projects: Upgrading aging relays or PLC-based systems without cabinet modifications.
• Mobile Automation: Integration into AGVs (Automated Guided Vehicles) or aerospace test rigs.

3. Energy Efficiency

With a 36W power draw (20% less than industrial PCs), the LMC300CAA1000 reduces operational costs in 24/7 applications like:

• Water Treatment Plants: Controlling pump arrays and valve matrices.
• HVAC Systems: Synchronizing fan arrays and damper actuators.

4. Legacy System Compatibility

The inclusion of RS232/RS485 serial ports and Profibus DP ensures smooth integration with existing infrastructure, minimizing upgrade costs for:

• Automotive Subassembly Lines: Modernizing older robotic workcells.
• Pharma Processing: Upgrading tablet presses while retaining legacy sensors.

Application Domains

1. Food and Beverage Packaging

• Vertical Form-Fill-Seal (VFFS) Machines: Coordinates film feeding, sealing, and cutting operations with 8-axis synchronization.
• Case Packers: Manages robotic grippers and conveyor belts for efficient case erection.

2. Printing and Labeling

• Flexographic Presses: Synchronizes impression cylinders, ink pumps, and tension control rollers.
• Label Applicators: Ensures precise placement via touch probe inputs for product detection.

3. Textile Machinery

• Circular Knitting Machines: Controls needle selection, yarn feeders, and take-down rollers.
• Dyeing Machines: Regulates temperature, pressure, and fabric movement axes.

4. Material Handling

• Mini-Load AS/RS Systems: Manages X-Y-Z axis movements in compact warehouses.
• Sortation Conveyors: Diverts packages using high-speed pneumatic actuators.

Programming and Integration

The LMC300CAA1000 supports Schneider Electric’s EcoStruxure Machine Expert software, offering:

• Graphical Motion Setup: Drag-and-drop configuration of cam profiles and electronic gearing.
• Diagnostics: Real-time axis status monitoring and error logging.
• Safety Integration: Seamless connection to PacDrive 3’s Safe Motion modules (via Sercos Safety).

Durability and Reliability

• Vibration Resistance: Withstands 10m/s² shocks (8.4–150Hz), suitable for mobile or high-vibration environments.
• EMC Compliance: Meets EN 61131-2 standards for immunity to electrical noise in industrial settings.
• MTBF: Rated for 500,000 hours of operation at 40°C, ensuring long-term reliability.

Comparison with LMC402CAA10000

Conclusion

The Schneider Electric LMC300CAA1000 PACDrive 3 motion controller strikes an optimal balance between performance and affordability for 8-axis applications. Its combination of real-time networking, compact design, and legacy compatibility makes it a versatile choice across industries. By focusing on moderate-complexity automation tasks, it provides a compelling alternative to both entry-level PLCs and high-end multi-axis controllers, ensuring precise motion control without unnecessary complexity.
