2198-D006-ERS3 Servo Drive Dual-Axis Design with High Output Current and Power for Precise and Performance

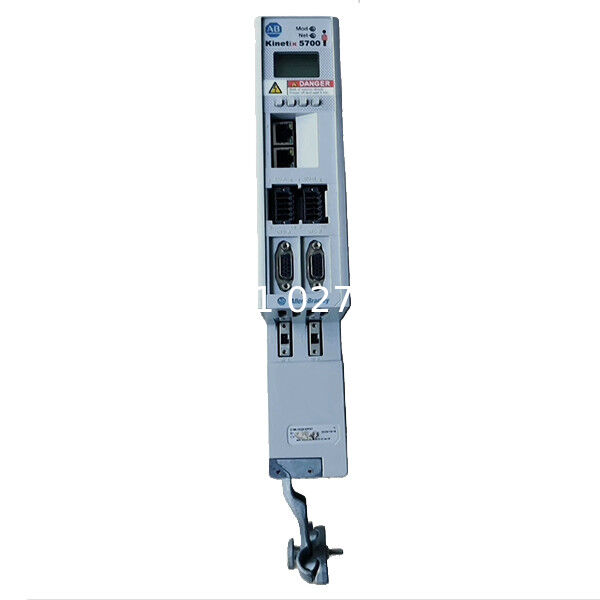

2198-D012-ERS3 Servo Drive

Product Overview

The 2198-D012-ERS3 is a high‑performance servo drive designed for integration into complex motion control systems, particularly those utilizing EtherNet/IP networks. This drive is part of a series known for its advanced features, flexibility, and robustness in demanding industrial environments. Below is a detailed introduction to the 2198-D012-ERS3 drive, including its structure, functions, performance, unique characteristics, and advantages over similar products.

Table: Overview of 2198-D012-ERS3 Drive

Detailed Introduction

1. Structure and Design

The 2198-D012-ERS3 drive is compactly designed with a module width of only 55 mm, making it suitable for space‑constrained installations. It supports both 240V AC and 480V AC input voltages, providing flexibility in different industrial power environments. The drive's construction ensures durability and reliability, even in harsh operating conditions.

2. Functions and Performance

• Power Output: The 2198-D012-ERS3 delivers a continuous output power of 2 × 1.7 kW at 240V input and 2 × 3.4 kW at 480V input, with peak output currents reaching 2 × 34 A. This makes it suitable for driving medium to large motors in high‑performance applications.

• Feedback Support: The drive supports a wide range of feedback types, including advanced single‑cable technology, which simplifies wiring and reduces installation costs.

• Networking Capabilities: Equipped with dual Ethernet ports, the 2198-D012-ERS3 supports linear and device‑level ring topologies, facilitating seamless integration into EtherNet/IP networks.

3. Unique Characteristics

• Integrated Safety: The drive features integrated Safe Torque‑Off (STO) functionality, certified to SIL3 PLe standards. This eliminates the need for separate safety wiring, reducing complexity, installation time, and potential points of failure.

• Tuning‑less Commissioning: With real‑time load observer tuning technology, the 2198-D012-ERS3 can automatically tune each axis, compensating for unknown mechanics and adjusting for varying inertia during operation. This significantly reduces commissioning time and effort.

• Energy Efficiency: The drive supports CIP Energy, allowing for the monitoring of energy data. It also has regenerative capabilities, enabling excess energy to be fed back into the AC power source or used plant‑wide, contributing to energy cost savings.

• Security: CIP Security capabilities provide defense‑in‑depth against physical and electronic threats, ensuring the integrity and safety of the motion control system.

4. Advantages Over Similar Products

• Flexibility and Scalability: The drive is part of a modular drive series that offers excellent flexibility and scalability. System builders can easily scale their systems to meet changing needs, all within a single control engine and design environment.

• Reduced Wiring and Installation Time: The integration of safety functions and the use of single‑cable technology significantly reduce wiring complexity and installation time, leading to lower overall costs.

• High Performance and Reliability: With its advanced tuning technology, wide feedback support, and robust networking capabilities, the 2198-D012-ERS3 delivers high performance and reliability, ensuring smooth and efficient machine operation.

• Comprehensive Safety Features: The integrated safety functions, including Safe Torque‑Off and multiple safe stop and monitoring functions, provide comprehensive protection for both personnel and equipment.

Conclusion

The 2198-D012-ERS3 servo drive is a high‑performance, flexible, and reliable solution for integration into complex motion control systems. Its unique characteristics, such as integrated safety, tuning‑less commissioning, energy efficiency, and comprehensive security features, distinguish it from similar products on the market. Whether in manufacturing, packaging, food processing, automotive, or other industrial sectors, the 2198-D012-ERS3 drive offers a robust solution for meeting the demanding needs of modern industrial applications.
