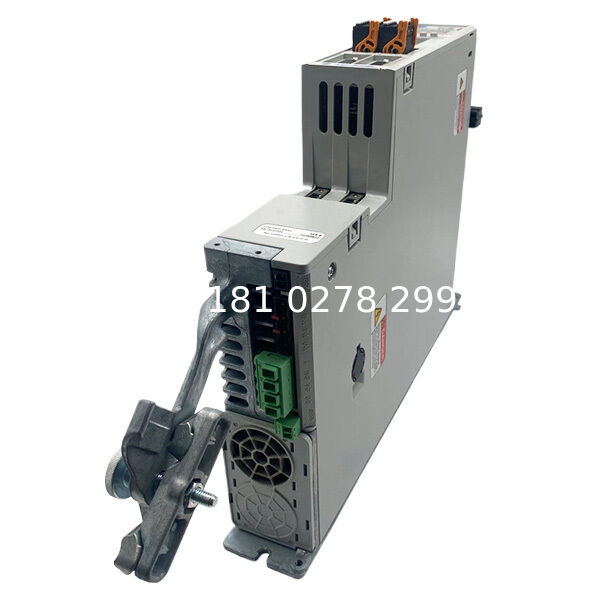

The 2198-D032-ERS3 is a Kinetix 5700 dual-axis servo drive, also commonly described as a dual-axis inverter module. It is designed for multi-axis motion control systems where two servo axes need to be controlled from one compact drive module. This model is suitable for machine builders, maintenance engineers, and production line repair teams that require reliable servo axis replacement in an existing Kinetix 5700 architecture.

This model belongs to the 460V class Kinetix 5700 servo drive system. It provides 2 x 13.0A RMS continuous output current and 2 x 32.0A peak output current, with an 8.9kW class power rating. The dual-axis design helps reduce cabinet space compared with using two separate single-axis drives, while still supporting accurate servo motor control for synchronized machine axes.

The 2198-D032-ERS3 is used in integrated motion systems based on EtherNet/IP. It is suitable for packaging machinery, converting equipment, printing machines, material handling systems, indexing machines, automated assembly lines, robotic production equipment, and other machines with high axis counts and coordinated motion requirements.

This product should be described as a Kinetix 5700 dual-axis servo drive or dual-axis inverter. It should not be confused with FANUC A06B-6089-H101, SVU1-12, CNC servo amplifiers, spindle amplifiers, PLC modules, or general-purpose variable frequency drives. If the page URL is 2198-D032-ERS3, the product image, title, parameter table, description, FAQ, SEO title, and SEO keywords should all match 2198-D032-ERS3.

For replacement applications, the complete model number must be checked carefully. Similar 2198 series drives may have different output current ratings, voltage class, axis configuration, safety function, firmware requirement, motor compatibility, and system configuration. Please do not replace the drive only by appearance or by the 2198 family number.

Before ordering, please confirm the old drive label, full model number, drive series, axis configuration, supply system, bus supply module, connected servo motor models, feedback cables, motor power cables, safety wiring, EtherNet/IP configuration, firmware version, and machine parameter backup. Clear photos of the original drive nameplate, cabinet wiring, connected motors, safety terminals, and controller configuration can help confirm compatibility and reduce replacement risk.

Dengfeng supplies Kinetix 5700 servo drive modules, dual-axis servo drives, single-axis servo drives, servo motors, feedback cables, motor power cables, safety components, PLC modules, HMI panels, industrial control boards, sensors, and automation spare parts for machine repair and production line maintenance. Before shipment, we can check the model label, housing condition, terminal condition, connector condition, fan condition, and packaging according to your request.

Key Features

• 2198-D032-ERS3 Kinetix 5700 dual-axis servo drive
• Dual-axis / 2-axis inverter module
• 460V class servo drive system
• 2 x 13.0A RMS continuous output current
• 2 x 32.0A peak output current
• 8.9kW class power rating
• Designed for multi-axis servo motion control
• EtherNet/IP integrated motion system support
• Integrated and hardwired Safe Torque Off, depending on system setup
• Suitable for packaging machinery, material handling, converting equipment, and production automation
• Useful for replacement, repair, retrofit, and spare parts supply

Typical Applications

The 2198-D032-ERS3 dual-axis servo drive can be used in:

• Kinetix 5700 multi-axis servo systems
• Packaging machinery
• Converting equipment
• Printing machinery
• Material handling systems
• Conveyor and feeder axes
• Rotary indexing systems
• Robotic production equipment
• Automated assembly lines
• High-axis-count machine control
• Servo drive replacement projects
• Machine retrofit projects
• Factory maintenance spare parts

FAQ

Q1: What is 2198-D032-ERS3?
A1: 2198-D032-ERS3 is a Kinetix 5700 dual-axis servo drive, also described as a dual-axis inverter module, used for multi-axis servo motion control.

Q2: Is 2198-D032-ERS3 a dual-axis drive?
A2: Yes. It is designed to control two servo axes from one drive module.

Q3: What is the voltage class of 2198-D032-ERS3?
A3: It belongs to the 460V class Kinetix 5700 servo drive system.

Q4: What is the continuous output current?
A4: The continuous output current is 2 x 13.0A RMS.

Q5: What is the peak output current?
A5: The peak output current is 2 x 32.0A.

Q6: What is the power class of this model?
A6: It is commonly listed as an 8.9kW class dual-axis servo drive.

Q7: Does 2198-D032-ERS3 support safety functions?
A7: This drive family supports integrated and hardwired Safe Torque Off functions, depending on the machine system setup and safety configuration.

Q8: What communication system is used with Kinetix 5700 drives?
A8: Kinetix 5700 systems are commonly used with EtherNet/IP integrated motion architecture. Actual communication setup should be checked according to the controller and machine configuration.

Q9: Is this product the same as FANUC A06B-6089-H101?
A9: No. 2198-D032-ERS3 is a Kinetix 5700 dual-axis servo drive. FANUC A06B-6089-H101 is a different CNC servo amplifier. These two products should be kept on separate product pages.

Q10: Can 2198-D032-ERS3 replace another 2198 series drive?
A10: It can replace the same model when voltage class, current rating, axis configuration, safety function, firmware, motor compatibility, wiring, and machine parameters match. Similar 2198 series drives may not be interchangeable.

Q11: What should I check before ordering?
A11: Please check the original drive label, full model number, bus supply module, connected servo motors, motor cables, feedback cables, safety wiring, EtherNet/IP configuration, firmware version, and machine parameter backup before ordering.

Q12: Can you help confirm compatibility?
A12: Yes. Please send photos of the original drive nameplate, cabinet wiring, bus supply module, connected motor labels, safety terminals, controller configuration, and alarm display. We can help check whether 2198-D032-ERS3 matches your replacement requirement.
