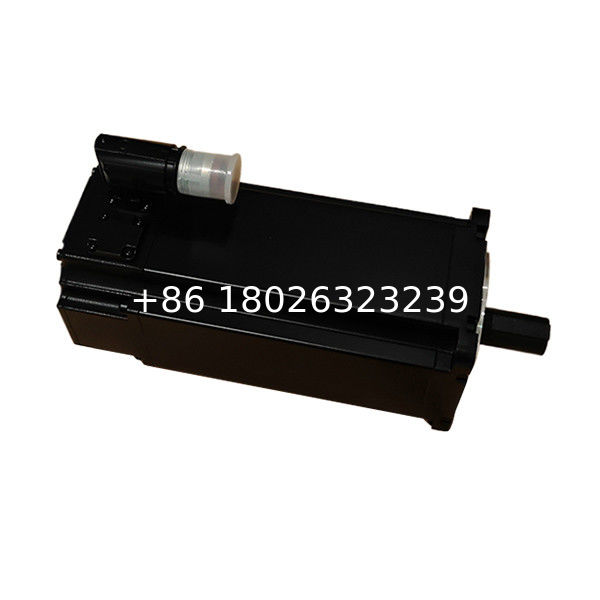

The B&R 8LSA46.R2030D200-3 is a 400 VAC synchronous servo motor designed for medium-torque machine axes that require stable speed control, controlled positioning, and holding capability after drive power is removed.
This 3000 rpm motor provides 7.700 Nm nominal torque and 10.000 Nm stall torque. The integrated 8.00 Nm holding brake makes it suitable for axes that must remain in position during a controlled stop or power-off condition, including vertical handling units, indexing mechanisms, feeders, and compact transfer equipment.
This version uses an R2 two-pole resolver for motor feedback. The resolver configuration is important when replacing an existing motor because the connected servo drive must be configured for the same feedback system.
The motor has a smooth 19 mm shaft and a 100 mm square flange. It is a synchronous servo motor only and should not be described as a servo drive, PLC, power supply, bus module, or general-purpose induction motor.
Key Features
400 VAC synchronous servo motor
3000 rpm nominal speed
7.700 Nm nominal torque
10.000 Nm stall torque
38.000 Nm maximum torque
8.00 Nm holding brake
R2 two-pole resolver feedback
Self-cooled motor design
Smooth 19 mm shaft
100 mm square flange
Angled swivel connector
Typical Applications
Vertical positioning axes
Servo-driven feeders
Indexing stations
Packaging machinery
Assembly machines
Handling and transfer units
Printing and converting equipment
Industrial retrofit projects
Installation Notes
Confirm the original motor model, resolver type, brake rating, shaft dimensions, centering diameter, and flange size before replacement.
The 8 Nm brake is intended to hold a stationary axis. It should not be used as the primary method for repeated dynamic braking.
Use a compatible B&R servo drive and matching motor cable. Verify resolver feedback settings and brake wiring before commissioning.
FAQ
Q
Is 8LSA46.R2030D200-3 a servo motor
A
Yes it is a 400 VAC synchronous servo motor
Q
Does this model include a holding brake
A
Yes it includes an 8.00 Nm holding brake
Q
What is the nominal torque
A
The nominal torque is 7.700 Nm
Q
What feedback system does it use
A
It uses an R2 two-pole resolver
Q
Is the shaft smooth or keyed
A
It has a smooth 19 mm shaft
