FANUC CNC Single-Axis Driver A06B-6117-H153 αi SV 20L HRV3 Control for Enhanced Motor Response and Performance

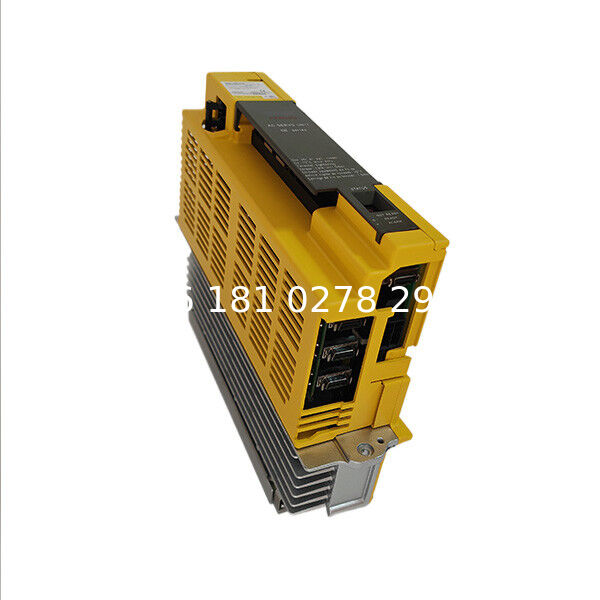

FANUC CNC Single-Axis Driver A06B-6117-H153 αi SV 20L

The FANUC CNC Single-Axis Driver A06B-6117-H153 αi SV 20L is a sophisticated servo amplifier designed to deliver exceptional performance in CNC (Computer Numerical Control) machine tool applications. This driver is specifically engineered to meet the demands of high-precision, high-efficiency, and high-stability operations, making it an ideal choice for a wide range of industrial applications.

Specifications and Features

• Model: A06B-6117-H153
• Series: αi SV 20L
• Rated Output Current: 20Arms, providing sufficient power for medium-sized servo motors.
• Control Method: Employs advanced sine-wave PWM (Pulse Width Modulation) control with an IGBT (Insulated Gate Bipolar Transistor) bridge, ensuring smooth and precise motor operation.
• Compatible CNC Systems: Fully compatible with FANUC's 16i, 18i, 21i, 0i-B/C/D, 30i, 31i, and 32i series CNC controllers, facilitating seamless integration into existing CNC setups.
• High Response Vector (HRV) Control: Supports HRV3 control, enhancing the responsiveness and accuracy of servo motors during rapid acceleration and deceleration.
• Integrated Safety Functions: Incorporates safety functions such as overcurrent, overvoltage, and thermal protection to ensure safe and reliable operation.
• Compact Design: Features a compact and lightweight design, facilitating easy installation and space-saving in machine tool cabinets.
• High Efficiency: Optimized power conversion efficiency reduces energy consumption and operational costs.

Performance Advantages

• High Precision: The αi SV 20L's advanced control algorithms and HRV3 technology enable precise positioning and motion control, ensuring high-quality machining results.
• High Efficiency: High-efficiency power conversion minimizes energy loss, contributing to lower operational costs and improved sustainability.
• High Stability: Robust construction and rigorous testing ensure stable operation under various conditions, reducing downtime and maintenance costs.
• Easy Integration: Compatibility with a wide range of FANUC CNC controllers simplifies system integration and upgrades.

Application Scenarios

• General Machining: Suitable for a wide range of machining operations, including milling, drilling, and turning, where high precision and efficiency are required.
• Automation Systems: Ideal for use in automated production lines, where reliable and precise motion control is essential.
• Small to Medium-Sized CNC Machines: Perfect for driving servo motors in small to medium-sized CNC machines, such as lathes, grinders, and EDM (Electrical Discharge Machining) machines.
• Prototyping and Low-Volume Production: Provides the flexibility and precision needed for prototyping and low-volume production runs.

Specification Table

The FANUC CNC Single-Axis Driver A06B-6117-H153 αi SV 20L offers a combination of high precision, efficiency, and stability, making it an excellent choice for a variety of CNC machine tool applications. Its advanced features and compatibility with FANUC CNC controllers ensure seamless integration and reliable operation, driving productivity and quality in manufacturing environments.
