Comprehensive Technical Report: Schneider Electric Lexium 62 ILM Servo Motor (Model ILM0701P21A0000)

1. Product Overview

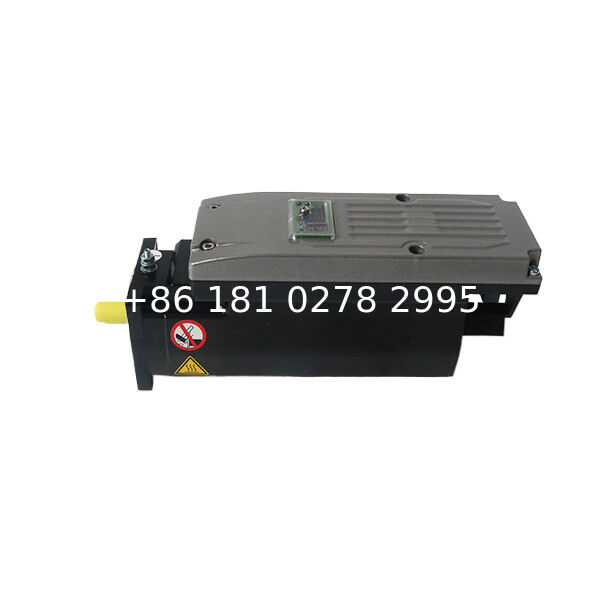

The Lexium 62 ILM0701P21A0000 is an advanced integrated servo motor from Schneider Electric’s Lexium 62 series, combining a high-performance servo motor, drive, and controller into a single IP65-rated unit. Designed for precision motion control in space-constrained and harsh industrial environments, it delivers 1.1 Nm continuous torque and operates at speeds up to 6,000 rpm without an electromechanical brake. As part of Schneider’s MachineStruxure™ platform, it targets applications demanding reduced wiring, energy efficiency, and decentralized control architectures34.

2. Technical Specifications

Key parameters of the ILM0701P21A0000 are detailed below:

3. Design Innovations and Key Features

• Integrated Architecture:
  Embeds the servo drive and controller within the motor housing, eliminating external drives. This reduces control cabinet space by 90% and cuts cabling by 70%, lowering installation costs by over 50%34.

• IP65 Protection:
  The controller’s IP65 rating ensures reliable operation in dusty or wet environments (e.g., food processing, packaging lines), while the motor uses FDA-compliant lubricant (Klübersynth UH1 64-62) for food-safe applications1.

• Energy Efficiency:
  Natural convection cooling eliminates need for external fans or cabinet air conditioning, contributing to >30% energy savings in system operation4.

• Safety Integration:
  Native support for Safe Torque Off (STO) and Safe Stop 1 (SS1), enabling compliance with SIL3/PLd safety standards without additional modules4.

4. Application Scenarios

• High-Dynamic Automation:
  Ideal for packaging machinery and CNC systems requiring rapid acceleration/deceleration. The multiturn encoder enables precise positioning over extended travel ranges without homing1.

• Harsh Environment Operations:
  IP65 protection and epoxy-based coating resist corrosion in chemical or washdown environments (e.g., pharmaceutical manufacturing)1.

• Multi-Axis Systems:
  Compatible with Lexium 62 Connection Module (ILM62CMD20A0000), supporting tree, line, or hybrid topologies via hybrid DC/communication cables. Up to 45 ILM units can connect per module2.

5. Installation and System Integration

• Electrical Requirements:

  • Control Voltage: 18.5–31 Vdc (tolerance: ±10%)1.

  • EMC Compliance: No external filters needed when using Schneider-approved cables; meets IEC/EN 61800-3 C3 standards5.

• Topology Flexibility:
  Hybrid cables combine power and SERCOS III communication, enabling flexible daisy-chaining or star configurations4.

• I/O Expansion:
  Optional DIO series modules allow direct connection of up to 16 sensors/actuators via the servo bus, reducing wiring complexity4.

6. Performance and Reliability Enhancements

• Overload Protection:
  Real-time thermal monitoring via ContStallCurrent (stall state) and NomCurrent (rated speed). Triggers alarms at 80% load (warning) and forces shutdown at 100% load to prevent damage1.

• Maintenance and Longevity:

  • Epoxy coating protects against industrial chemicals.

  • Field repair is restricted; Schneider-certified technicians must perform servicing to maintain warranty1.

• Dynamic Response:
  16-bit analog input resolution and 2μs motion task synchronization ensure ±0.01% speed ripple, critical for applications like precision winding4.

7. Market Differentiation and Advantages

Compared to conventional servo systems and even earlier Lexium models, the ILM0701P21A0000 offers unique benefits:

• Cost Efficiency:
  50% lower installation costs and 30% energy savings versus traditional setups3.

• Scalability:
  Seamless integration with PacDrive 3 controllers via SERCOS III, supporting systems with up to 99 axes3.

• Sustainability:
  Reduced copper usage in cables and lower energy consumption align with eco-design principles4.

Comparative Table: ILM0701P21A0000 vs. Competing Integrated Servo Motors

Conclusion

The Lexium 62 ILM0701P21A0000 redefines compact servo technology by merging high dynamics, robust environmental protection (IP65), and safety compliance in a single package. Its integrated design drastically simplifies installation while enabling flexible topologies—critical for modern modular machinery. For OEMs prioritizing energy efficiency, space savings, and resilience in demanding settings (e.g., food processing, electronics assembly), this motor delivers a future-proof solution aligned with Industry 4.0 decentralization trends.
