ILM0702P12A0000 Servo Motor High torque output multiturn absolute positioning keyed shaft compatibility robust performance compact and lightweight design

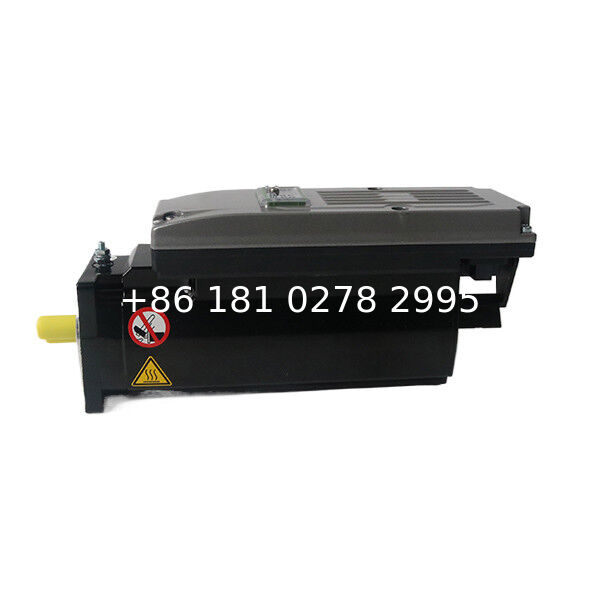

Schneider Electric Lexium 62 ILM Integrated Servo Motor ILM0702P12A0000: A Technical Deep Dive

The Schneider Electric Lexium 62 ILM series introduces the ILM0702P12A0000, a variant engineered for applications demanding multiturn absolute positioning, high torque output, keyed shaft compatibility, and robust performance—all without an integrated brake. This model integrates a 1.7 Nm brushless motor, a 6,000 rpm speed capability, a 23-bit multiturn absolute encoder, and advanced thermal management into a compact 1.3 kg unit. Its 14mm keyed shaft and IP65-rated housing make it ideal for rotary indexing tables, wind turbine yaw systems, and medical imaging devices in harsh environments. Below is a detailed technical review, emphasizing its unique design, performance, and applications.

Technical Specifications Table

1. Design Innovation: Multiturn Encoder, Keyed Shaft, and IP65 Protection

The ILM0702P12A0000 combines three critical features for advanced motion control:

Multiturn Absolute Encoder:

• 23-bit Resolution: Combines 8 million single-turn positions with 16-bit multiturn tracking (65,536 revolutions), enabling precise position tracking across extended rotations.
• Battery-Free Operation: Energy harvesting from motor rotation maintains multiturn data during power cycles.

Keyed Shaft Design:

• Torque Transmission: Eliminates backlash, critical for applications like conveyor systems or robotic arms.
• Interchangeability: Compatible with industry-standard couplings and gearboxes.

IP65-Rated Housing:

• Dust Tight and Water Resistant: Withstands low-pressure water jets, making it suitable for washdown applications in food processing or outdoor use.
• Sealed Connectors: M12 connectors with O-ring seals prevent moisture ingress.

2. Performance Benchmarks

Torque and Speed:

• The 1.7 Nm continuous torque suits steady-state operations, while the 5.1 Nm peak torque enables rapid acceleration in applications like packaging machinery.
• At 6,000 rpm, it excels in high-speed tasks such as spindle drives or centrifugal separators.

Encoder Accuracy:

• Multiturn Resolution: Enables applications like rotary tables or wind turbine yaw systems, where tracking multiple revolutions is critical.
• Latency: <1 μs feedback update rate ensures real-time control in synchronized motion systems.

3. Applications

The ILM0702P12A0000 is tailored for:

• Rotary Indexing Tables: CNC machines, assembly lines, and food packaging systems requiring precise angular positioning.
• Wind Turbine Yaw Systems: Multiturn tracking ensures accurate blade orientation relative to wind direction.
• Medical Imaging: CT scanners and radiation therapy systems needing sub-degree precision over thousands of rotations.
• Automotive Testing: Dynamometers and engine test stands requiring repeatable positioning.
• Textile Machinery: Spinning frames and yarn winding systems with frequent start/stop cycles.

4. Technical Advantages

Environmental Robustness:

• Wide Temperature Range: Operates from -10°C to +50°C, suitable for freezers or heated industrial settings.
• Corrosion Resistance: Coated housing resists chemical exposure in food processing.

Connectivity:

• EtherCAT FSoE: Enables safety communication over EtherCAT for integrated safety architectures.
• Dual-Port EtherCAT: Supports line topology for daisy-chained motion axes.

Precision and Safety:

• The 23-bit absolute encoder eliminates homing sequences, critical for CNC machining.
• Integrated Safe Torque Off (STO) and Safe Stop 1 (SS1) functions comply with ISO 13849-1.

5. Installation and Commissioning

Mounting:

• IEC B14 flange with a 14mm keyed shaft ensures secure coupling to mechanical loads.
• Adjustable mounting feet accommodate misalignment during installation.

Wiring:

• A single 48V DC supply powers the motor.
• Dedicated encoder feedback terminals (M12 connector) simplify integration with controllers.

Software Tools:

• Schneider Electric’s SoMove software streamlines parameter tuning, diagnostics, and firmware updates.
• Preloaded motion profiles (e.g., S-curve, trapezoidal) reduce programming effort.

6. Maintenance and Troubleshooting

Preventive Maintenance:

• The encoder’s self-diagnostics flag deviations in position accuracy.
• Regular inspection of cooling fins prevents thermal overload.

Error Handling:

• LED indicators on the motor housing provide real-time status feedback (e.g., overcurrent, overvoltage).
• Fault codes are logged internally for post-mortem analysis via SoMove.

7. Compatibility and Accessories

Optional Add-Ons:

• External Brake Kit: For applications requiring holding torque (e.g., vertical axes).
• Gearboxes: Planetary or helical options to increase torque density.
• Cables: Pre-terminated motor cables (1m, 2m, 5m lengths) with M12/M23 connectors.
• IP69K Connectors: For high-pressure washdown environments in food processing.

Controller Compatibility:

• Works seamlessly with Schneider Electric’s PacDrive 3 and Modicon M580 PLCs.
• Third-party controller support via open-source EtherCAT stacks.

8. Environmental and Safety Compliance

• RoHS/REACH Compliance: Ensures absence of hazardous substances.
• Low Noise Emission: Operates at <72 dB(A), suitable for noise-sensitive environments.
• Safety Certifications: Meets ISO 13849-1 (PLd), IEC 61800-5-2, and SIL 2 for functional safety.

9. Ordering and Availability

As a Non-Stock item, the ILM0702P12A0000 requires a 4–6 week lead time from Schneider Electric’s manufacturing facilities. Customers are advised to:

• Confirm regional availability through Schneider Electric’s eCommerce portal or authorized distributors.
• Specify optional accessories (gearboxes, cables) during order placement to avoid delays.

10. Frequently Asked Questions (FAQs)

Q1: What is the difference between this model and the ILM0701P22A0000?
A1: The ILM0702P12A0000 offers 55% higher continuous torque (1.7 Nm vs. 1.1 Nm) and multiturn capability, making it suitable for heavier-duty applications like wind turbine yaw systems.

Q2: Can this motor operate in a food-grade application?
A2: Yes, with an optional stainless steel shaft and IP69K-rated connectors for high-pressure washdown.

Q3: Is the multiturn encoder resolution upgradeable?
A3: No, the 23-bit resolution is fixed. For higher precision, consider the ILM1202 model (24-bit).

Q4: How does the multiturn encoder maintain data during power cycles?
A4: Energy harvesting from motor rotation powers the encoder’s memory, eliminating the need for batteries.

Conclusion

The Schneider Electric Lexium 62 ILM0702P12A0000 integrated servo motor sets a new standard for torque density, precision, and durability in advanced motion control. Its combination of a 1.7 Nm motor, multiturn absolute encoder, keyed shaft, and IP65 protection makes it indispensable for applications like rotary indexing tables or medical imaging. While its Non-Stock status reflects its specialized nature, the 4–6 week lead time is justified by the motor’s advanced capabilities and Schneider Electric’s rigorous quality control. For engineers seeking a high-performance servo solution with enhanced torque, multiturn tracking, and environmental robustness, the ILM0702P12A0000 remains a benchmark in its class.
