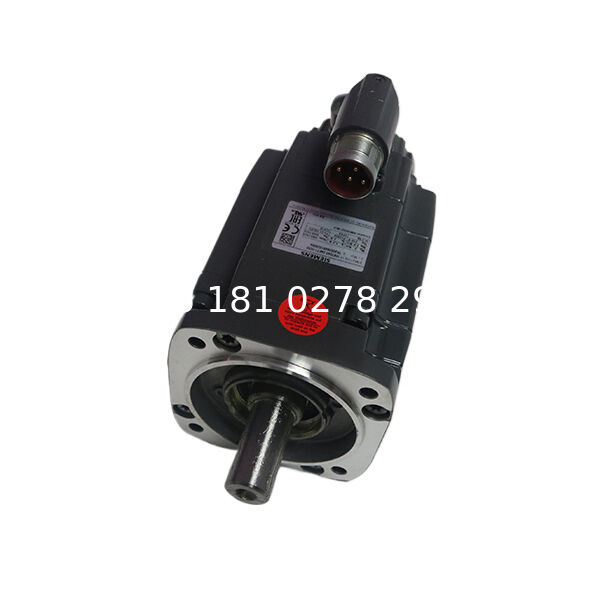

The 1FK7042-2AF71-1CG0 is a 1FK7 Compact permanent-magnet synchronous servo motor designed for positioning, feeding and speed-controlled machine axes.
It provides a static torque of 3 Nm, a rated torque of 2.6 Nm and a rated speed of 3000 rpm. The motor delivers approximately 0.82 kW at its rated operating point.
The defining feature of this CG0 configuration is its AM24DQI 24-bit plus 12-bit multiturn absolute encoder with DRIVE-CLiQ communication.
This feedback system records both the angular position within one mechanical revolution and the number of completed shaft revolutions within its multiturn measurement range.
The motor is supplied with a plain shaft, natural cooling and no integrated holding brake. Its IP64 configuration is intended for protected machine environments where dust protection and resistance to splashing water are required, but direct water-jet exposure is not part of the installation requirement.
The 1FK7042-2AF71-1CG0 should not be described as a resolver motor. Resolver-equipped 1FK7 configurations use different encoder codes and provide a different feedback principle.
Key Features
- 3 Nm static torque
- 2.6 Nm rated torque
- 3000 rpm rated speed
- 0.82 kW rated output
- 10.5 Nm maximum torque
- AM24DQI multiturn absolute encoder
- DRIVE-CLiQ communication
- Plain shaft
- No integrated holding brake
- IP64 protection
Typical Applications
- Packaging machine feeders
- Conveyor positioning
- Printing registration axes
- Small rotary tables
- Assembly equipment
3 Nm Compact Servo Axis
The 1FK7042-2AF71-1CG0 belongs to the 3 Nm static-torque class.
It is suitable for machine functions such as:
- Product feeding
- Label positioning
- Conveyor adjustment
- Small indexing mechanisms
- Printing registration
- Light rotary handling
- Gearbox-driven positioning
The motor should be selected according to the complete torque-speed requirement rather than the 3 Nm static value alone.
Rated and Maximum Torque
Static Torque
3 Nm at 100 K
Rated Torque
2.6 Nm at 100 K
Maximum Torque
10.5 Nm
The maximum torque is available only within the approved current, speed, thermal and drive-system limits.
It should not be described as continuous output torque.
3000 rpm Rated-Speed Configuration
The AF71 winding is configured for a rated speed of 3000 rpm.
This operating point provides a balance between:
- Continuous torque
- Dynamic acceleration
- Machine-cycle speed
- Gearbox input speed
- Thermal loading
- Positioning response
It should be distinguished from lower-speed and 6000 rpm configurations in the same motor family.
AM24DQI Multiturn Encoder
The motor uses an AM24DQI absolute encoder with:
- 24-bit resolution per revolution
- 12-bit multiturn revolution measurement
- DRIVE-CLiQ communication
- Absolute rotor-position feedback
- Electronic motor identification
The 24-bit single-revolution resolution represents more than sixteen million positions within one mechanical turn.
The 12-bit multiturn range records up to 4096 revolutions within the encoder measurement range.
Absolute Position Feedback
The multiturn encoder supports machine axes that require position information after control-power interruption.
Depending on the mechanical transmission and control project, this can help reduce or eliminate repeated homing.
Typical functions include:
- Absolute rotor-angle detection
- Revolution counting
- Speed feedback
- Position feedback
- Motor commutation
- Direction monitoring
The actual machine position still depends on the configured gear ratio, axis parameters and mechanical connection.
Not a Resolver Motor
The 1FK7042-2AF71-1CG0 does not use resolver-based feedback.
AM24DQI Encoder
High-resolution digital absolute feedback
Multiturn position measurement
DRIVE-CLiQ communication
Resolver Feedback
Analog sine and cosine feedback principle
Lower-resolution but robust feedback architecture
Different motor order-number configuration
These encoder systems should not be described as interchangeable.
DRIVE-CLiQ Integration
The encoder communicates with the compatible drive controller through DRIVE-CLiQ.
Typical functions include:
- Automatic motor recognition
- Electronic nameplate transfer
- Encoder-data communication
- Temperature-data transmission
- Parameter assignment
- Drive diagnostics
- Topology identification
A compatible Motor Module, Control Unit and approved motor cable are required.
Plain Shaft Configuration
The motor has a plain shaft rather than a keyed shaft.
It is suitable for:
- Clamping couplings
- Bellows couplings
- Shrink-disc connections
- Low-backlash gearbox inputs
- Precision direct-coupled loads
A plain shaft can provide concentric coupling and balanced rotation when installed correctly.
No Integrated Holding Brake
The 1FK7042-2AF71-1CG0 does not include a holding brake.
It is best suited for:
- Horizontal axes
- Mechanically self-locking systems
- Applications with an external brake
- Axes that do not need holding torque after shutdown
Vertical or suspended loads require a separate validated holding arrangement.
IP64 Protection
The motor has an IP64 degree of protection for the applicable standard configuration.
IP64 indicates protection against:
- Dust ingress
- Splashing water from different directions
It does not indicate protection against direct water jets or immersion.
Correct protection also depends on:
- Properly fitted connectors
- Approved motor cables
- Correct shaft sealing
- Cable-entry orientation
- Complete machine installation
IP64 vs IP65 Version
1FK7042-2AF71-1CG0
IP64 protection
AM24DQI multiturn encoder
Plain shaft
Without holding brake
1FK7042-2AF71-1CG1
IP65 protection
AM24DQI multiturn encoder
Plain shaft
Without holding brake
These models are similar electrically, but their protection configuration differs. The exact suffix must be matched when replacing a motor.
Natural Cooling
The motor dissipates heat through its housing and mounting flange without an external fan.
Reliable operation requires:
- Firm flange mounting
- Adequate heat transfer
- Unobstructed airflow
- Approved ambient temperature
- Correct drive parameters
- Operation within the torque-speed curve
The motor should not be described as separately fan-cooled.
Motor and Drive Integration
A complete servo axis normally includes:
- Compatible Control Unit
- Motor Module
- Line or power-supply module
- Motor power cable
- DRIVE-CLiQ feedback cable
- 1FK7042-2AF71-1CG0 motor
- Mechanical coupling or gearbox
- Approved motor parameters
The 600 V DC specification describes the compatible drive-system DC link. The motor must not be connected directly to a 600 V DC supply.
Replacement Identification
Correct Model Number
1FK7042-2AF71-1CG0
Motor Family
1FK7 Compact
Static Torque
3 Nm
Rated Speed
3000 rpm
Encoder
AM24DQI Multiturn Absolute
Encoder Interface
DRIVE-CLiQ
Shaft
Plain Shaft
Holding Brake
Not Included
Protection
IP64
Before replacement, confirm:
- Complete order number
- CG0 suffix
- IP64 requirement
- Encoder type
- Shaft design
- Brake requirement
- Connector orientation
- Flange dimensions
- Motor cable
- Drive firmware
- Mechanical coupling
Do not select the motor using only the 1FK7042 family number.
Installation Guidelines
Disconnect and secure the drive-system power.
Wait for the DC link to discharge fully.
Verify the absence of hazardous voltage.
Support the motor during removal.
Record all power and encoder connections.
Confirm the complete order number.
Inspect the flange and plain shaft.
Check the coupling condition.
Install the motor without striking the shaft.
Align the mechanical load correctly.
Connect the motor power cable.
Connect the DRIVE-CLiQ feedback cable.
Restore the approved motor parameters.
Test the motor at reduced speed.
Check encoder position and direction.
Monitor vibration, current and temperature.
Validate machine safety functions before production use.
Installation should be completed by qualified servo-drive personnel.
FAQ
Q1: What is 1FK7042-2AF71-1CG0?
A1: It is a 1FK7 Compact synchronous servo motor with 3 Nm static torque, 0.82 kW rated power and a 3000 rpm rated speed.
Q2: Does this motor use resolver feedback?
A2: No. It uses an AM24DQI 24-bit plus 12-bit multiturn absolute encoder.
Q3: What is its rated torque?
A3: The rated torque is approximately 2.6 Nm at the specified 100 K operating condition.
Q4: What is the maximum torque?
A4: Official technical data lists a maximum torque of 10.5 Nm.
Q5: Does it include a holding brake?
A5: No. This configuration is supplied without an integrated holding brake.
Q6: What shaft type does it have?
A6: It has a plain shaft.
Q7: What is its protection rating?
A7: The CG0 configuration has an IP64 degree of protection.
Q8: What is the difference between CG0 and CG1?
A8: The CG0 version is IP64, while the otherwise similar CG1 configuration is IP65.
Q9: Can it connect directly to a 600 V DC source?
A9: No. It requires a compatible servo drive. The 600 V DC value refers to the associated drive-system DC link.
Q10: What distinguishes it from other 1FK7042 motors?
A10: Its defining combination is 3000 rpm, AM24DQI multiturn feedback, plain shaft, no holding brake and IP64 protection.
