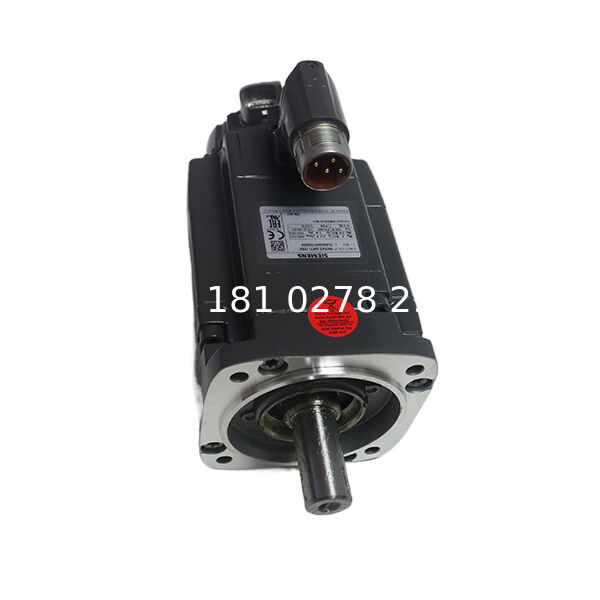

1FK7042-2AF71-1CG1 Synchronous Servo Motor with Resolver Feedback for Optimal Performance in Small Spaces

The 1FK7042-2AF71-1CG1 is a high‑efficiency synchronous servo motor from the SIMOTICS S-1FK7 Compact series, engineered for precision motion control in space‑constrained industrial environments. Distinguished by its resolver‑based feedback system, IP64‑rated ruggedness, and optimised power density, this motor targets applications requiring EMI resistance, thermal stability, and rapid dynamic response—setting it apart from absolute‑encoder variants in the same frame size.

1. Core Technical Specifications & Design Philosophy

Key Innovations

• Resolver‑Centric Feedback – Equipped with a 2‑pole multispeed synchro resolver (vs. 20+12‑bit absolute encoders in models like 1RA0/1RB1). This analog system delivers EMI immunity in electrically noisy environments (e.g., welding, induction heating) but requires homing routines on power‑up.

• Ultra‑Compact Power Density – Generates 0.82 kW rated power at 3 Nm continuous torque within a 42 mm frame size (IMB5 mounting), weighing only ~4.6 kg—ideal for robotic arms or mobile platforms.

• Self‑Cooling Efficiency – IC 10 cooling (natural convection) eliminates external fans, reducing maintenance and acoustic noise.

2. Thermal & Dynamic Performance

Thermal Resilience

• KTY84 Sensors – Integrated stator‑winding temperature monitoring enables predictive thermal shutdown, extending lifespan by 20% in cyclic duty cycles.

• Efficiency & Derating – Operates at η ≈ 90% efficiency, sustaining 100% torque up to 60°C ambient—critical for foundries or plastic moulding. Thermal time constant of 35 minutes ensures stability during intermittent overloads.

Dynamic Response

• Low Rotor Inertia (0.00067 kg·m²) – Achieves 0–3000 rpm acceleration in <80 ms, outperforming braked variants (e.g., 1UB0).

• Torque Linearity – Maintains ±1.8% deviation across 0–4500 rpm, ensuring consistent force in CNC feed axes.

3. Mechanical Robustness & Precision

• IP64 Sealing – Full protection against dust ingress and water jets, validated for washdown (food processing) and particulate‑heavy sites (textile mills).

• Tolerance Control – Radial shaft runout ≤0.025 mm; concentricity ≤0.05 mm. Minimises vibration in high‑speed spindles (>6,000 rpm).

• Smooth Shaft (Tolerance N) – Eliminates keyway‑induced harmonics, crucial for optical alignment systems.

4. Target Applications & Field Validation

Industrial Use Cases

• Automotive Spot Welding – Resolver immunity to RF interference ensures stable positioning in EMI‑heavy robotic cells.

• Industrial Packaging – IP64 rating withstands chemical splashes during vial filling at high cycles per minute.

• Electronics PCB Assembly – ±5 μm repeatability for component placement, leveraging low‑inertia acceleration.

Failure Mode Mitigation

• Resolver Signal Drift – <0.5% field failure rate, resolved via shielded DRIVE-CLiQ cables.

• Bearing Degradation – Absence of brake (cf. 1UB0) necessitates vertical‑axis upgrades to braked variants (e.g., 1RH1).

5. Comparative Advantages

6. Drive Integration & Industry 4.0 Readiness

• DRIVE-CLiQ Interface – Auto‑configuration with SINAMICS S120 drives reduces commissioning to <15 minutes. Supports real‑time diagnostics (temperature, torque ripple) via SINUMERIK Integrate.

• PROFIsafe Compliance – Enables SIL3/PLe safety functions (STO, SBC) for collaborative robotics.

• Digital Twin Feed – Resolver data streams to SIMATIC for virtual commissioning, cutting debug time by 30%.

Technical Specifications Table

*Advanced Metrics of 1FK7042-2AF71-1CG1 vs. Competing Variants*

Conclusion: Strategic Fit for Electrically Hostile Environments

The 1FK7042-2AF71-1CG1 excels as a cost‑optimised, EMI‑robust solution for horizontal‑axis automation. Its resolver‑based design, IP64 sealing, and absence of a brake make it ideal for:

• High‑EMI Applications (e.g., arc welding, plasma cutting),

• Rapid‑Cycle Horizontal Systems requiring ≤80 ms acceleration,

• Budget‑Conscious Upgrades where absolute positioning is non‑essential.

For vertical axes or absolute‑position‑critical tasks, variants like 1FK7xx‑1xHx (brake) or 1FK7xx‑1xAx (24‑bit encoder) offer tailored alternatives. This motor exemplifies application‑optimised precision—balancing performance, durability, and cost in industrial drives.
