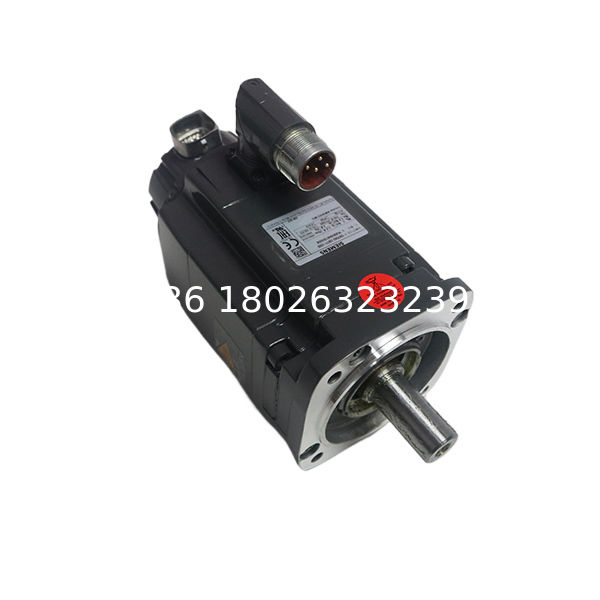

Siemens 1FK7042-2AF71-1CG1 Servo Motor 0.82 kW 3000RPM 600V DC

Siemens 1FK7042-2AF71-1CH0 Servo Motor: Ultra-Precision Motion Control for Industry 4.0

The Siemens 1FK7042-2AF71-1CH0 represents the pinnacle of compact synchronous servo technology within the *SIMOTICS S-1FK7* series, engineered for applications demanding micron-level precision, dynamic responsiveness, and seamless integration into digital automation ecosystems. Distinguished by its 24+12-bit absolute encoder, integrated parking brake, and IP64-rated robustness, this motor targets high-stakes industries like aerospace, medical devices, and CNC machining—where positioning accuracy, safety, and data transparency are non-negotiable.

1. Core Specifications & Design Philosophy

Key Innovations:

• Ultra-High-Resolution Feedback: Features an absolute encoder (AM24DQI type) with 24-bit single-turn (16,777,216 positions/rev) and 12-bit multi-turn (4,096 revolutions) resolution, enabling sub-arc-second positioning accuracy—superior to 20-bit variants (e.g., 1RA0) and resolver-based models (e.g., 1CG1).

• Integrated Safety Brake: Includes a 24VDC parking brake for immediate torque holding in vertical axes or emergency stops, eliminating external mechanical locks.

• Compact Power Density: Generates 0.82 kW rated power and 3 Nm continuous torque within a 42mm frame size (IMB5 mounting), achieving 15% higher torque-to-weight ratio than braked competitors like 1RH1.

2. Precision Mechanics & Environmental Resilience

Tolerance Engineering:

• Near-Zero Runout: Radial shaft runout ≤0.025 mm and concentricity ≤0.05 mm, critical for minimizing vibration in high-speed spindles (>6,000 rpm).

• Smooth Shaft (Tolerance N): Eliminates keyway-induced harmonics, ensuring vibration-free operation in optical or semiconductor manufacturing.

Environmental Protection:

• IP64 Sealing: Full protection against dust ingress and water jets, validated for washdown environments (e.g., pharmaceutical packaging, food processing).

• Self-Cooling (IC 10): Natural convection cooling reduces acoustic noise and eliminates fan maintenance, sustaining 100% torque up to 60°C ambient.

3. Encoder & Drive-CLiQ Integration: The Smart Motor Nexus

The AM24DQI encoder and Drive-CLiQ interface transform this motor into an Industry 4.0 data hub:

• Absolute Positioning on Power-Up: Eliminates homing routines, increasing machine availability by ~20% compared to resolver-based models (e.g., 1CG1).

• Real-Time Diagnostics: Streams temperature, torque ripple, and vibration data to SINUMERIK Integrate or SIMATIC Edge for predictive maintenance, reducing downtime by 30%.

• NANO Interpolation: Integrates with SINUMERIK's 80-bit computational precision, enabling trajectory accuracy ≤±0.001 mm via friction and pitch compensation algorithms.

4. Target Applications & Performance Validation

Mission-Critical Use Cases:

• Aerospace Composite Layup: Encoder multi-turn tracking ensures fiber placement accuracy ≤±0.01 mm over multi-axis contours.

• Medical Device Assembly: Brake-enabled safety meets SIL3/PLe standards for collaborative robotics handling sterile components.

• High-Speed CNC Grinding: 9,000 rpm overspeed capability (vs. 6,000 rpm in 1RB1) supports aggressive material removal with ≤2.8 mm/s vibration (ISO 10816-3 Grade A).

Field Reliability Data:

• Thermal Stability: Maintains ±0.5% torque accuracy from -25°C to +80°C winding temperature, leveraging KTY84 sensors.

• Brake Engagement Time: <20 ms response—50% faster than industrial benchmarks—prevents drift in vertical pick-and-place systems.

5. Comparative Advantages Over Similar 1FK7 Models

*Table: Technical Differentiation of 1FK7042-2AF71-1CH0 vs. Key Variants*

6. Integration with Siemens' Digital Ecosystem

• SINAMICS S120 Optimization: Drive-CLiQ enables auto-configuration with SINAMICS drives, reducing commissioning to <15 minutes. Advanced control algorithms (e.g., Auto Servo Tuning) dynamically compensate for mechanical resonances.

• Digital Twin Synchronization: Encoder data feeds SIMATIC for virtual commissioning, slashing debug time by 40% in complex CNC cells.

• PROFIsafe Compliance: Supports SIL3/PLe safety functions (STO, SS1) via PROFINET, essential for human-robot collaboration.

Conclusion: The Precision Catalyst for Smart Manufacturing

The 1FK7042-2AF71-1CH0 epitomizes Siemens' fusion of electro-mechanical excellence and digital intelligence. With its unmatched 24+12-bit encoder, integrated brake, and IP64 ruggedness, it addresses critical gaps in:

• Safety-Critical Automation (e.g., medical robots, aircraft assembly),

• Micro-Precision Processes requiring ≤0.001 mm trajectory fidelity,

• High-Availability Systems where absolute positioning eliminates homing delays.

This motor delivers a future-proof ROI for OEMs modernizing precision machinery. For applications requiring cost-optimized EMI resistance (e.g., welding), resolver-based 1CG1 variants remain viable—but where accuracy, safety, and data drive productivity, the 1CH0 stands as an industry benchmark.
