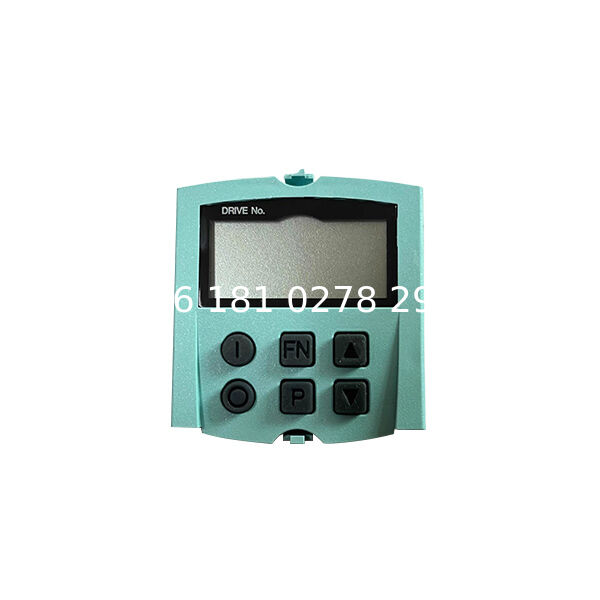

6SL3055-0AA00-4BA0 ⎜Modular Drive System Basic Operator Panel (BOP20)

The 6SL3055-0AA00-4BA0, part of a modular drive system, is a Basic Operator Panel (BOP20) designed to streamline parameterisation, diagnostics, and system monitoring in industrial automation environments. Engineered for compatibility with specific control units (e.g., CU305, CU310, CU320), this panel integrates seamlessly into a modular drive architecture, offering intuitive operation and robust functionality for demanding applications. This document provides an in‑depth analysis of its technical specifications, operational capabilities, and real‑world applications.

Technical Specifications

The table below summarises the key technical parameters of the 6SL3055-0AA00-4BA0:

Key Features

User‑Centric Interface

• The 2‑line LCD provides clear visibility of system status, fault codes, and parameter values.

• Six dedicated keys enable quick access to menus, reducing setup time and enhancing operator efficiency.

Seamless Integration

• Native compatibility with modular drive control units ensures plug‑and‑play functionality.

• Drive‑bus interface supports high‑speed communication with digital drives, enabling real‑time data exchange.

Advanced Diagnostics

• Built‑in diagnostic tools allow users to troubleshoot faults, monitor drive performance, and log historical data.

• Fieldbus connectivity facilitates integration into larger automation networks for centralised monitoring.

Durability and Reliability

• Compact, rugged design withstands vibrations, dust, and temperature fluctuations in industrial settings.

• Long‑term availability ensures compatibility with legacy and future systems.

Applications

The 6SL3055-0AA00-4BA0 is ideal for:

• Machine Tool Manufacturing – Simplifies parameter adjustment in CNC systems.

• Material Handling – Enables precise control of conveyor systems and robotic arms via fieldbus networks.

• Renewable Energy – Supports wind turbine pitch control and solar tracker alignment through drive‑bus.

• Automotive Assembly Lines – Streamlines motor calibration and fault detection in high‑speed production environments.

Installation and Configuration

Mounting

• The panel mounts directly onto the control unit using a standard DIN rail or panel cutout. Ensure a clean, vibration‑free surface to maintain IP20 protection.

Wiring

• Power and communication are supplied via the control unit—no separate cabling required. For fieldbus connectivity, use a shielded cable with appropriate connectors.

Software Setup

• Use standard drive configuration software to set drive parameters and update firmware. The BOP20 acts as a local interface, mirroring settings from the control unit for offline adjustments.

Competitive Advantages

• Cost Efficiency – Reduces dependency on external HMI systems by providing essential controls locally.

• Scalability – Part of a modular drive ecosystem, allowing expansion from single‑axis to multi‑axis configurations.

• Future‑Proofing – Supports unified engineering software, ensuring compatibility with Industry 4.0 standards.

Conclusion

The 6SL3055-0AA00-4BA0 BOP20 is a versatile, user‑friendly operator panel that enhances operational efficiency in industrial drive systems. Its robust design, seamless integration with modular drive systems, and advanced diagnostic capabilities make it a critical component for modern automation applications. By centralising control and monitoring, this panel empowers engineers to optimise performance while minimising downtime.
