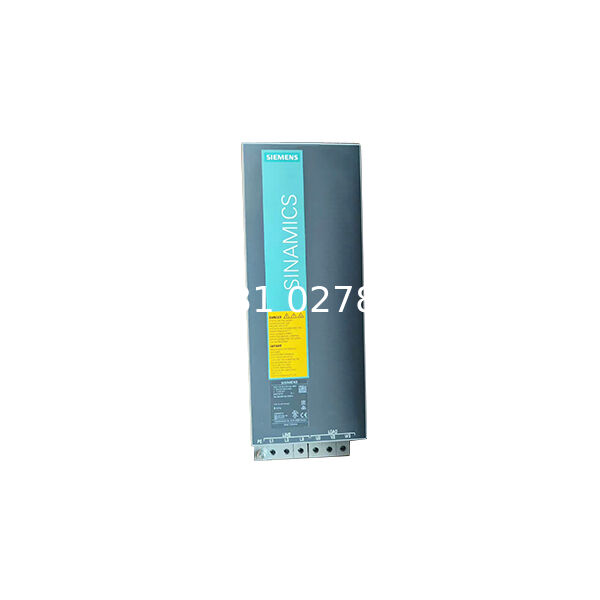

The 6SL3100-0BE23-6AB0 is an Active Interface Module used in modular industrial drive systems. It is designed for use with a 36kW Active Line Module and provides the line-side interface function required in the drive power section. This module is suitable for electrical cabinets that use modular drive architecture for CNC machines, packaging machinery, production equipment, material handling systems, and automated manufacturing lines.

This model supports 3-phase 380-480V AC input at 50/60Hz and has a rated current of 58A. It uses a Booksize mechanical format, internal air cooling, and IP20 / UL open type protection for installation inside protected industrial control cabinets. The approximate dimensions are 150 × 380 × 270mm, and the weight is approximately 18-19kg.

The 6SL3100-0BE23-6AB0 helps connect the line-side power section with the Active Line Module in a compatible modular drive system. It is not a general power supply and should not be described as a standalone power module. Its main role is to work as an interface module for the Active Line Module power section.

This module is commonly used in CNC machine tools, servo drive cabinets, packaging machinery, printing equipment, textile machinery, material handling equipment, and automated production lines. It is also suitable for drive cabinet repair, Active Line Module interface replacement, retrofit projects, and spare parts supply.

For replacement applications, the complete model number 6SL3100-0BE23-6AB0 should be checked carefully. Similar Active Interface Modules may have different rated current, power class, dimensions, cooling requirement, terminal size, and matching Active Line Module rating. Before ordering, please confirm the original module label, Active Line Module power rating, input voltage, cabinet space, line-side wiring, PE connection, and system configuration.

Dengfeng supplies Active Interface Modules, Active Line Modules, Smart Line Modules, Motor Modules, Control Units, operator panels, servo drives, PLC modules, industrial boards, sensors, cables, and automation spare parts for machine repair and production line maintenance. Before shipment, we can check the model label, terminal condition, housing appearance, cooling area, and packaging according to your request.

Key Features

• 6SL3100-0BE23-6AB0 Active Interface Module
• Designed for 36kW Active Line Module
• 3-phase 380-480V AC input
• 50/60Hz line frequency
• 58A rated current
• Booksize structure for modular drive cabinets
• Internal air cooling
• IP20 / UL open type protection
• Approx. 150 × 380 × 270mm dimensions
• Approx. 18-19kg module weight
• Line-side screw-type terminal connection
• Suitable for drive cabinet repair and spare parts replacement

Typical Applications

The 6SL3100-0BE23-6AB0 Active Interface Module can be used in:

• CNC machine tool drive systems
• Modular servo drive cabinets
• Active Line Module interface systems
• Packaging machinery
• Printing and textile machinery
• Material handling systems
• Automated production lines
• Drive cabinet retrofit projects
• Industrial control cabinet maintenance
• Spare parts supply for automation repair

FAQ

Q1: What is 6SL3100-0BE23-6AB0?
A1: It is an Active Interface Module used with a 36kW Active Line Module in a modular industrial drive system.

Q2: Is this product a standalone power supply?
A2: No. It is not a general standalone power supply. It is an Active Interface Module used in the line-side power section of a compatible modular drive system.

Q3: What input voltage does it support?
A3: It supports 3-phase 380-480V AC input.

Q4: What is the rated current of this module?
A4: The rated current is 58A.

Q5: What line module power rating is it designed for?
A5: It is designed for use with a 36kW Active Line Module.

Q6: What module format does it use?
A6: It uses the Booksize format for modular drive cabinet installation.

Q7: What cooling method does it use?
A7: It uses internal air cooling. Proper cabinet ventilation should be checked during installation.

Q8: What is the protection rating?
A8: The protection rating is IP20 / UL open type, so it should be installed inside a protected electrical cabinet.

Q9: Can this module be used as a replacement part?
A9: Yes. It can be used for replacement when the full model number, rated current, matching Active Line Module rating, voltage class, terminal connection, and cabinet dimensions are compatible.

Q10: What should I check before ordering?
A10: Please check the original module label, Active Line Module part number, input voltage, cabinet space, line-side wiring, PE connection, cooling condition, and system configuration.

Q11: Can you help confirm compatibility?
A11: Yes. Please send photos of the original module label, cabinet installation position, connected line module label, wiring terminals, and machine system information before ordering.
