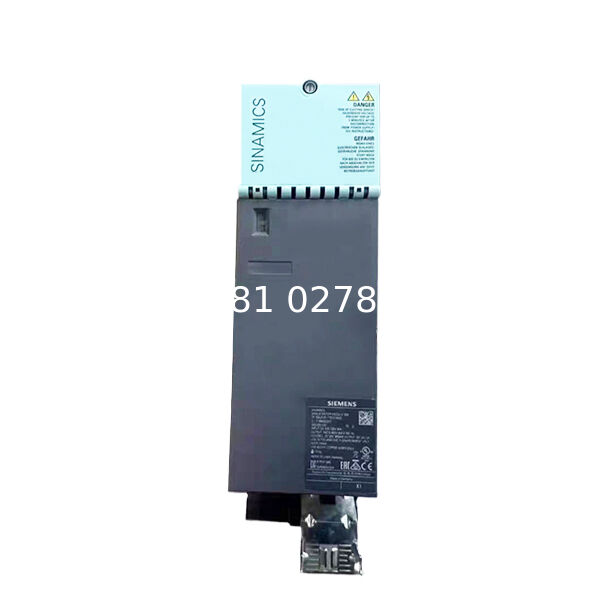

The Single Motor Module 6SL3120-1TE23-0AD0 is a high-performance drive designed for advanced industrial automation applications. With a continuous output current of 30 A, it supports motors up to approximately 15 kW, delivering reliable power and precise motion control in a compact form factor.
This module is engineered for systems that require both dynamic response and high positioning accuracy. Its space-saving design helps reduce cabinet size while maintaining strong performance and energy efficiency.
Technical Overview
- Product type: Single motor drive module
- Input voltage: 600 V DC (via DC link)
- Output voltage: 3-phase 400 V AC
- Continuous output current: 30 A
- Peak current: up to 60 A (short duration)
- Power range: approximately 15 kW
- Cooling method: internal forced-air cooling
- Communication: high-speed digital interface for real-time control
- Safety features: integrated Safe Torque Off (STO)
- Compact dimensions for efficient cabinet integration
Core Features and Engineering Advantages
1. High Dynamic Performance
The module provides strong peak current capability, allowing fast acceleration and responsive control in demanding motion applications.
Advanced control technology ensures stable torque output and high positioning accuracy, supporting smooth operation even under varying load conditions.
2. Efficient Thermal Management
An integrated cooling system maintains stable internal temperatures, enabling continuous operation even in elevated ambient conditions.
The optimized airflow design improves heat dissipation and extends component lifespan, reducing maintenance requirements.
3. Precision Motion Control
High-speed control response enables accurate synchronization and positioning. This makes the module suitable for applications that require fine motion control and repeatability.
Advanced algorithms help reduce vibration and improve surface quality in precision processing tasks.
4. Integrated Safety Functions
Built-in safety features such as Safe Torque Off (STO) allow secure shutdown without additional external components.
This simplifies system design while supporting compliance with modern industrial safety standards.
Typical Applications
Electronics Manufacturing
Supports high-precision assembly and handling systems where accurate positioning is essential.
Industrial Machinery
Provides reliable control for equipment requiring stable torque and fast response.
Precision Metal Processing
Ensures consistent motion control for cutting, grinding, and finishing operations.
Automated Production Lines
Improves efficiency in synchronized processes such as packaging, conveying, and material handling.
Installation and Integration Benefits
Quick Commissioning
Automatic detection of connected components simplifies setup and reduces commissioning time.
Flexible Installation
Compact design allows easy integration into control cabinets with limited space.
Reduced Wiring Complexity
Integrated interfaces and streamlined connections help minimize installation effort and potential errors.
Intelligent Monitoring and Maintenance
The module includes built-in diagnostic functions that monitor temperature, load, and operating conditions in real time. This enables early detection of potential issues and supports predictive maintenance, helping reduce unexpected downtime.
Energy-efficient operation, including regenerative capability, helps lower overall energy consumption in dynamic systems.
Conclusion
The Single Motor Module 6SL3120-1TE23-0AD0 combines compact design, strong power capability, and precise control in a single solution. It is well suited for industrial automation systems that require reliability, efficiency, and high-performance motion control.
With integrated cooling, intelligent diagnostics, and safety features, this module helps improve productivity while ensuring stable long-term operation.
