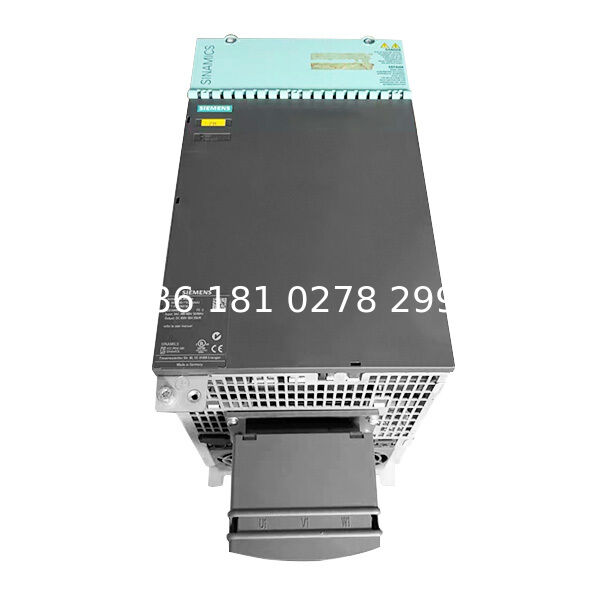

The 6SL3130-7TE25-5AA3 Active Line Module is a regulated infeed module used in modular industrial drive systems. It converts 3-phase AC line input into a stable DC link supply for connected motor modules, helping the drive system operate reliably in applications that require coordinated servo axes, controlled speed, and high production uptime.

This model supports 3-phase 380-480V AC input at 50/60Hz and provides DC 600V output with 92A output current. With 55kW rated power and a compact booksize structure, the 6SL3130-7TE25-5AA3 is suitable for cabinet-mounted drive systems where space saving, modular configuration, and service access are important.

The internal air-cooling design supports reliable operation in properly ventilated industrial control cabinets. The included DRIVE-CLiQ cable helps connect the module into the drive communication system, supporting modular setup and maintenance work.

This Active Line Module is commonly used in CNC machine tools, packaging machinery, printing equipment, textile machinery, material handling systems, automated production lines, servo drive cabinets, and industrial equipment repair projects. It is especially suitable for replacement work where the existing drive cabinet already uses the same power rating and module format.

For replacement applications, the full model number 6SL3130-7TE25-5AA3 must be checked carefully. Similar Active Line Modules may have different current ratings, power ratings, cooling methods, cable accessories, mechanical formats, and installation requirements. Before ordering, please confirm the original module label, DC link configuration, connected motor modules, input voltage, cabinet space, and cooling condition.

Dengfeng supplies Active Line Modules, Smart Line Modules, motor modules, interface modules, control units, operator panels, PLC modules, industrial boards, servo drives, and automation spare parts for machine repair and production line maintenance. Before shipment, we can check the model label, connector condition, cooling area, appearance, and packaging according to your request.

Key Features

• 6SL3130-7TE25-5AA3 Active Line Module
• 55kW rated power for modular drive systems
• 3-phase 380-480V AC input, 50/60Hz
• DC 600V output voltage
• 92A output current
• Booksize structure for compact cabinet installation
• Internal air cooling for industrial control environments
• Includes DRIVE-CLiQ cable
• Suitable for CNC machines, servo cabinets, packaging machines, and production lines
• Useful for drive cabinet repair, replacement, retrofit, and spare parts supply

Typical Applications

The 6SL3130-7TE25-5AA3 Active Line Module can be used in:

• CNC machine tool drive systems
• Servo drive electrical cabinets
• Packaging machinery
• Printing and textile equipment
• Material handling systems
• Automated production lines
• Machine retrofit projects
• Industrial drive cabinet maintenance
• Drive system power section replacement
• Spare parts supply for automation repair

FAQ

Q1: What is 6SL3130-7TE25-5AA3?
A1: It is an Active Line Module used in modular industrial drive systems to provide a regulated DC link supply for connected motor modules.

Q2: What is the rated power of this module?
A2: The rated power is 55kW.

Q3: What input voltage does it support?
A3: It supports 3-phase 380-480V AC input at 50/60Hz.

Q4: What is the DC output voltage?
A4: The DC link output voltage is DC 600V.

Q5: What is the output current of this model?
A5: The output current is 92A.

Q6: What module format does it use?
A6: It uses a booksize structure for compact installation inside industrial drive cabinets.

Q7: What cooling method does it use?
A7: It uses internal air cooling. Proper cabinet ventilation should be checked during installation.

Q8: Does this module include a communication cable?
A8: Yes. This configuration is listed with a DRIVE-CLiQ cable included.

Q9: Can this module be used as a replacement part?
A9: Yes. It is commonly used for drive cabinet repair and replacement. Please confirm the complete model number, power rating, DC link configuration, connected modules, and cabinet layout before ordering.

Q10: What should I check before purchasing?
A10: Please check the original module label, input voltage, output current, power rating, cooling method, cabinet space, connected motor modules, and cable requirements.
