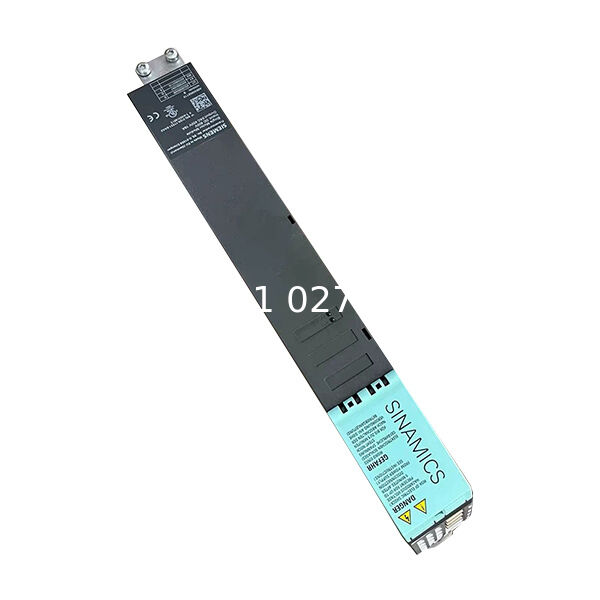

The 6SL3130-6AE21-0AB1 Smart Line Module is a compact power supply module used in modular industrial drive systems. It converts three-phase AC input power into a stable DC link supply for connected motor modules, helping the drive system operate reliably in CNC machines, production equipment, packaging lines, material handling systems, and automated manufacturing cells.

This model supports 3-phase 380-480V AC input at 50/60Hz and provides 600V DC output with 17A DC link current. With a 10kW rated infeed power and booksize mechanical design, the 6SL3130-6AE21-0AB1 is well suited for control cabinets where space saving, modular installation, and reliable power distribution are important.

The internal air-cooling structure helps maintain stable operation under normal cabinet conditions. When integrated into a properly designed drive system, the Smart Line Module supplies the DC link voltage required by connected inverter or motor modules. It is commonly selected for replacement, repair, or maintenance when an existing drive power supply module fails or needs to be upgraded.

For replacement applications, the complete model number 6SL3130-6AE21-0AB1 must be checked carefully. Similar smart line modules may have different power ratings, current ratings, frame sizes, cooling methods, or communication configurations. Before ordering, please confirm the original module label, drive cabinet layout, connected motor module model, input voltage, and installation dimensions.

Dengfeng supplies Smart Line Modules, motor modules, servo drives, power supply modules, PLC modules, industrial control boards, and automation spare parts for machine repair and production line maintenance. Before shipment, we can check the model label, connector condition, cooling area, appearance, and packaging according to your request.

Key Features

• 6SL3130-6AE21-0AB1 Smart Line Module
• 10kW rated infeed power for modular drive systems
• 3-phase 380-480V AC input, 50/60Hz
• 600V DC link output voltage
• 17A DC link current
• Booksize structure for compact cabinet installation
• Internal air cooling for industrial control environments
• Suitable for CNC machines, servo cabinets, and automation systems
• Useful for machine repair, replacement, and maintenance projects
• Complete model number should be confirmed before ordering

Typical Applications

The 6SL3130-6AE21-0AB1 Smart Line Module can be used in:

• CNC machine tool drive systems
• Servo drive control cabinets
• Packaging machinery
• Material handling systems
• Production line automation
• Machine retrofit projects
• Industrial power supply replacement
• Drive cabinet maintenance
• Factory automation equipment
• Spare parts replacement projects

FAQ

Q1: What is 6SL3130-6AE21-0AB1?
A1: It is a Smart Line Module used as a DC link power supply module in modular industrial drive systems.

Q2: What is the rated power of this module?
A2: The rated infeed power is 10kW.

Q3: What input voltage does it support?
A3: It supports 3-phase 380-480V AC input at 50/60Hz.

Q4: What is the DC output voltage?
A4: The module provides 600V DC link output.

Q5: What is the DC link current of this model?
A5: The DC link current is 17A.

Q6: What does booksize structure mean?
A6: Booksize structure means the module is designed with a slim, vertical format for compact installation inside drive cabinets.

Q7: Can this module be used as a replacement part?
A7: Yes. It is commonly used for drive cabinet repair, production line maintenance, and replacement of failed power supply modules. Please confirm the full model number before ordering.

Q8: What should I check before purchasing?
A8: Please check the original model label, input voltage, rated power, DC link current, cabinet layout, connected motor modules, and installation dimensions.

Q9: Do you inspect the module before shipment?
A9: Yes. We can check the model label, appearance, connector condition, cooling area, and package condition before shipment.

Q10: Can you supply related drive system parts?
A10: Yes. We can help source Smart Line Modules, motor modules, servo drives, power supply modules, control boards, cables, and other industrial automation spare parts.
