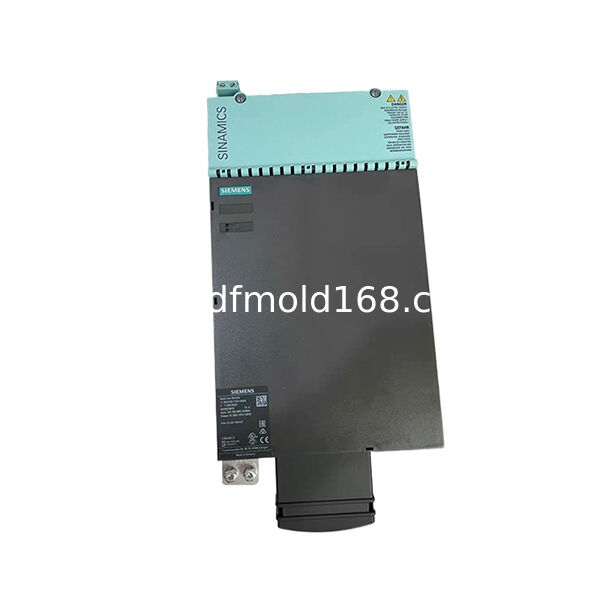

6SL3130-1TE31-0AA0 SINAMICS S120 Basic Line Module 100kW 167A Booksize

The 6SL3130-1TE31-0AA0 is a SINAMICS S120 Basic Line Module developed to supply a common DC link in high-power modular drive installations.

It converts a three-phase 380–480 V AC mains supply into a 600 V DC-link output for connected S120 Motor Modules. With a rated power of 100 kW and a DC output-current capacity of 167 A, it is suitable for machines operating several servo or spindle axes from one centralized power supply.

Unlike a Motor Module, the 6SL3130-1TE31-0AA0 does not directly control an individual motor. Its primary function is to provide the DC-link energy required by downstream Single Motor Modules and Double Motor Modules.

The Basic Line Module uses a non-regenerative diode rectifier design. Energy generated during motor braking is therefore not normally returned to the mains through this module. A compatible braking solution may be required when the application produces regenerative energy.

Its Booksize construction supports side-by-side installation with other S120 components, helping create an organized and scalable multi-axis drive cabinet.

Key Features

• 100 kW Basic Line Module
• 167 A DC-link output
• Three-phase 380–480 V AC input
• 600 V DC output
• Non-regenerative rectifier design
• Booksize cabinet construction
• Internal air cooling
• DRIVE-CLiQ cable included
• Supplies multiple connected Motor Modules

Typical Applications

• Multi-axis CNC machines
• Printing and converting lines
• Packaging machinery
• Material handling systems
• Automated production equipment

DC-Link Supply Function

The 6SL3130-1TE31-0AA0 creates the common DC supply used by compatible S120 Motor Modules.

Power flow:

Three-phase AC mains

Basic Line Module

600 V DC link

Single or Double Motor Modules

Connected motors

This centralized architecture allows several motor axes to share one line-side power module.

100 kW Power Class

The 100 kW rating makes this model suitable for drive groups with substantial combined motor demand.

The correct line module should be selected according to:

• Total connected motor load
• Simultaneous axis demand
• Acceleration cycles
• DC-link energy demand
• Braking and regenerative conditions
• Required overload capacity

Non-Regenerative Operation

The Basic Line Module uses an uncontrolled rectifier circuit to transfer energy from the mains to the DC link.

This means:

• Power primarily flows from the mains to the drive system
• Regenerative energy is not actively returned to the supply
• Braking resistors or other energy-management components may be required
• It should not be described as an Active Line Module

Basic Line Module vs Active Line Module

Basic Line Module

Provides a non-regenerative DC-link supply using a diode rectifier.

Active Line Module

Uses active line-side control and can support regenerative operation and additional mains-management functions.

These module types are not interchangeable without checking the complete electrical design.

System Integration

A typical installation may include:

• Main disconnect
• Line fuses or circuit breaker
• Line reactor
• Basic Line Module
• DC-link busbars
• Control Unit
• Single Motor Modules
• Double Motor Modules
• Servo or spindle motors

The required line-side components must be selected according to the system design and applicable electrical standards.

DRIVE-CLiQ Connection

The included DRIVE-CLiQ cable supports digital communication with compatible drive-system components.

Typical functions include:

• Module identification
• Operating-status communication
• Diagnostic data exchange
• Simplified commissioning
• System topology detection

Replacement Identification

Correct Model Number

6SL3130-1TE31-0AA0

Product Configuration

Basic Line Module

100 kW

167 A DC output

380–480 V AC input

600 V DC link

Booksize construction

Internal air cooling

Before replacement, confirm:

• Complete order number
• Rated power
• Input voltage
• DC output current
• Cooling method
• Cabinet dimensions
• Line-side components
• DC-link configuration

Do not replace this unit only according to appearance or the 6SL3130 product prefix.

Installation Guidelines

Isolate the incoming mains supply.

Wait for the DC link to discharge completely.

Verify absence of hazardous voltage.

Confirm the exact module order number.

Inspect the DC-link busbars.

Check mains wiring and protective devices.

Confirm cabinet airflow and clearance.

Connect DRIVE-CLiQ correctly.

Verify the connected Motor Modules.

Test the DC-link voltage before enabling the axes.

Installation and commissioning should be completed by qualified drive-system personnel.

FAQ

Q1: What is 6SL3130-1TE31-0AA0?

A1: It is a 100 kW SINAMICS S120 Basic Line Module that supplies a 600 V DC link for compatible Motor Modules.

Q2: What is its rated output current?

A2: Its rated DC-link output current is 167 A.

Q3: What mains voltage does it accept?

A3: It accepts three-phase 380–480 V AC at 50 or 60 Hz.

Q4: Does it directly control a motor?

A4: No. It supplies the DC link. Motor control is performed by connected Single Motor Modules or Double Motor Modules.

Q5: Is it a regenerative line module?

A5: No. It is a non-regenerative Basic Line Module.

Q6: Can it return braking energy to the mains?

A6: It does not provide active mains regeneration. A suitable braking or energy-management solution may be required.

Q7: What is the DC-link output voltage?

A7: The nominal output is 600 V DC.

Q8: What construction format does it use?

A8: It uses the Booksize format for side-by-side cabinet installation.

Q9: What cooling method is used?

A9: It uses internal air cooling.

Q10: Is a DRIVE-CLiQ cable included?
A10: Yes. The product configuration includes a DRIVE-CLiQ cable.
