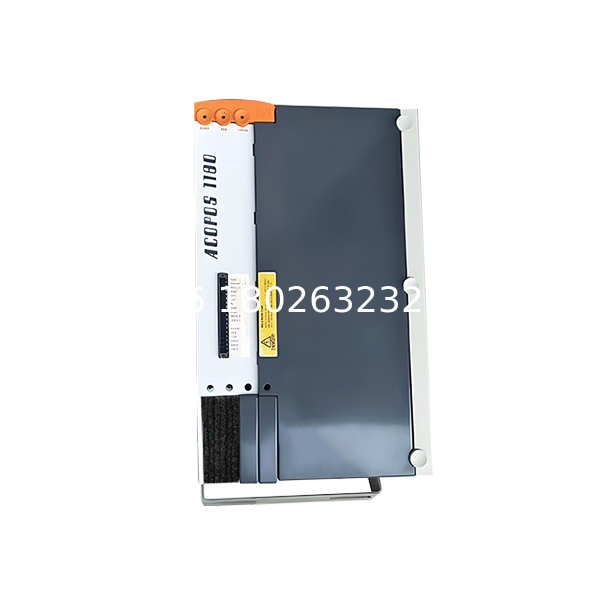

B&R ACOPOS Drive Module 8V1180.00-2 High-Speed Industrial Machinery

B&R ACOPOS Drive Module 8V1180.00-2: Precision Powerhouse for Agile Industrial Automation

Engineering Excellence in Mid-Power Motion Control

In the critical intersection of power density, dynamic response, and system integration, the B&R ACOPOS Drive Module 8V1180.00-2 redefines performance benchmarks for modern industrial machinery. Engineered as the optimal solution for 9A continuous/27A peak applications within B&R’s legacy ACOPOS platform (distinct from ACOPOS P3), this servo drive delivers ultra-compact power density in a 58.5 × 257 × 220 mm footprint while achieving unprecedented 50µs control cycles. Designed for robotic arms, precision assembly stations, and high-speed packaging systems, it integrates adaptive energy management with <100ns synchronization – enabling OEMs to overcome traditional trade-offs between cabinet space, dynamic response, and multi-axis coordination.

Core Technological Innovations

1. Intelligent Power Architecture

• Dynamic Current Scaling: Transitions between 9A continuous and 27A peak (300% overload) in <1.8ms – critical for robotic collision recovery or press brake operations

• Distributed Energy Routing: Patented DC bus technology recaptures 97% of braking energy for adjacent axes, reducing net consumption by 24% in cyclic applications

• Thermal Optimization: Copper-core cooling maintains full 9A output at 50°C ambient without forced airflow

2. Nano-Precision Motion Engine

• Triple-Loop Execution: Position/speed/torque control at 50µs cycles enables:

  • ±0.005° repeatability in rotary stages

  • 5µm linear positioning accuracy

  • Adaptive anti-resonance filtering (10Hz–2.5kHz)

• Multi-Axis Synchronization: <90ns jitter via POWERLINK for coordinated robotics

3. Integrated Safety Ecosystem

• SIL 3/PL e Functional Safety: Embedded SafeMOTION with hardware-redundant STO (3.9ms response)

• Restart Interlock: ISO 13849-1 Cat. 3 compliant activation prevention

• Predictive Diagnostics: Monitors capacitor health and bearing currents with ±2mA resolution

4. Hyper-Modular Connectivity

• Three Expansion Slots: Hot-swappable modules for:

  • Absolute encoders (EnDat 2.2, HIPERFACE DSL®)

  • Safety protocols (PROFIsafe, CIP Safety)

  • 53µs timestamped I/O for vision triggers

Application-Specific Performance Advantages

Technical Differentiation: Precision vs. Power Density

Table: Performance Leadership in Mid-Power Segment

System Integration & Lifecycle Value

1. Intelligent Commissioning

• Auto-Motor Identification: Detects 8LV series servos in <300ms via EnDat 2.2

• mapp Robotics Templates: Pre-configured profiles for:

  • SCARA joint coordination

  • Delta robot pick-and-place

  • Collaborative safety zones

• Virtual Resonance Analysis: Simulates mechanical dynamics in Automation Studio

2. Operational Economics

• Regenerative ROI: Saves €1,800/year per 50kW system (0.16€/kWh)

• Predictive Maintenance:

  • Capacitor ESR monitoring (1,000 hr pre-failure)

  • Vibration signature analysis

• Space Optimization: 40% smaller footprint vs. comparable drives

3. Future-Proof Architecture

• Firmware-Upgradable Safety: SIL 3 to PLe via software

• OPC UA TSN Integration: Real-time energy data to MES

• Hybrid Topology: Interfaces with ACOPOSmotor drives

Conclusion: The Agile Automation Catalyst

The B&R ACOPOS 8V1180.00-2 redefines mid-power motion control through intelligent energy routing and sub-100ns synchronization – delivering 27A peak performance in space-constrained applications where traditional drives compromise. Its revolutionary distributed DC bus architecture transforms deceleration energy into operational savings, while native robotic kinematics support eliminates external controllers. Unlike larger drives requiring forced cooling, this module maintains 9A continuous output at 50°C ambient through optimized thermal design.

For machine builders in electronics, pharmaceuticals, and precision assembly:

• Adaptive current control prevents robotic vibration during high-G maneuvers

• Micro-tension regulation enables next-gen textile manufacturing

• Integrated safety reduces wiring complexity by 60%

When paired with Automation Studio’s mapp Technology, engineers deploy 6-axis robotic cells 50% faster than with traditional platforms. Delivering 4.8 million acceleration cycles/year with ±5µm repeatability, the 8V1180.00-2 isn’t merely a drive – it’s the precision nucleus of intelligent, sustainable production systems.
