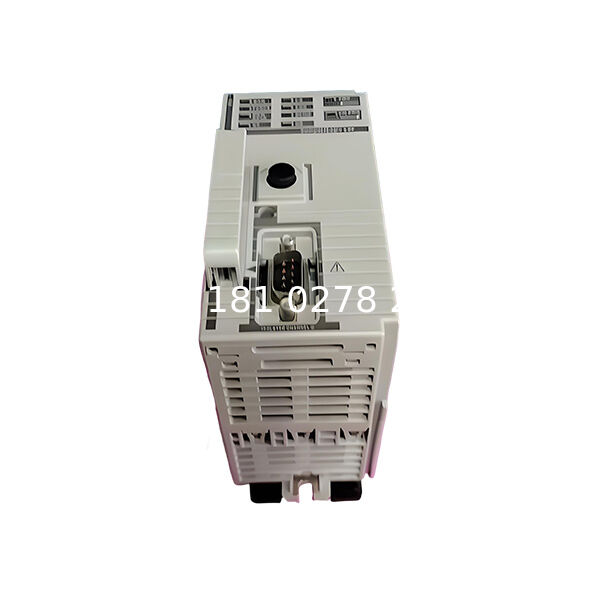

1768-L43 CompactLogix Controller

Product Overview

The 1768-L43 is a high‑performance programmable automation controller (PAC) from the CompactLogix series. Designed for industrial automation applications requiring a balance of processing power, motion control, and connectivity, this controller is engineered to meet the demands of small to medium‑sized control systems. It combines robust processing, integrated motion capabilities, and flexible communication in a compact form factor, making it suitable for a wide range of industries, including manufacturing, material handling, packaging, and metal forming.

As part of the CompactLogix family, the 1768-L43 is designed to provide a cost‑effective yet powerful solution for machine builders and end users. It supports multi‑axis motion control, extensive I/O expansion, and seamless integration into larger plant networks, allowing for efficient operation in both standalone and distributed applications. The controller is also built to operate reliably in challenging industrial environments.

Key Features and Capabilities

Processing Power and Memory
The 1768-L43 is equipped with a modern processor (ARM Cortex‑M7 core, 1 GHz clock speed) and 2 MB of standard user memory. This memory capacity provides sufficient space for user programs, data storage, and communication tasks, ensuring efficient handling of control algorithms and real‑time processing. The controller's operating system is flash‑upgradeable, allowing users to update firmware for new features and improvements without replacing hardware.

Integrated Motion Control
A standout feature of the 1768-L43 is its integrated motion control capability. It supports up to 4 axes of synchronous motion control via a SERCOS (Serial Real‑Time Communication System) fibre optic interface. This integration simplifies system design and reduces the need for additional motion controllers, making it ideal for applications requiring precise coordination of servo drives, such as in packaging machinery, material handling systems, and automated assembly lines. The controller includes 38 embedded motion instructions and pre‑loaded motion parameters, streamlining development and reducing programming time.

Communication and Networking
The 1768-L43 boasts versatile communication capabilities through its integrated ports and support for various network protocols:

• EtherNet/IP for real‑time I/O control and data exchange.

• ControlNet and DeviceNet for deterministic, high‑throughput performance in real‑time applications.

• Serial Communication: an RS‑232 port supports protocols like DF1 and Modbus RTU, facilitating connectivity with legacy devices.

The controller's support for NetLinx open network architecture enables seamless integration into broader plant networks, allowing data to flow from the shop floor to enterprise business systems.

Scalability and I/O Capabilities
The 1768-L43 is designed for scalability. It can support up to four 1768 backplane modules and up to sixteen 1769 series I/O modules, allowing for significant system customisation and expansion. These I/O modules offer a variety of options, including digital, analog, and specialty modules, enabling users to tailor the control system to their specific application needs. The controller supports a maximum of 288 I/O points (digital and analog combined), making it suitable for medium‑sized applications.

Environmental Robustness and Certifications
Built for industrial environments, the 1768-L43 operates reliably in a temperature range of 0°C to 60°C and relative humidity from 5% to 95% (non‑condensing). It is designed to resist vibration and shock, complying with relevant industrial standards. The controller holds certifications including CE, UL, and cUL, ensuring compliance with international safety and quality standards.

Technical Specifications

The following table summarises the key technical specifications of the 1768-L43 controller:

System Configuration and Programming

Hardware Configuration
The 1768-L43 is designed for DIN rail mounting or panel/wall mounting. Its compact form factor saves panel space. The controller features a 1768 backplane that supports the controller, power supply, and up to four 1768 modules, as well as a 1769 backplane for 1769 series I/O modules. This dual‑backplane design allows for flexible system configuration.

Software and Programming
The 1768-L43 is programmed using RSLogix 5000 or Studio 5000 Logix Designer software. These integrated development environments support multiple programming languages per the IEC 61131‑3 standard, including:

• Ladder Logic (LAD)

• Structured Text (ST)

• Function Block Diagram (FBD)

• Sequential Function Chart (SFC)

The controller's firmware is flash‑upgradeable, and the software supports online editing, allowing modifications to be made while the controller is running, minimising downtime.

Applications

The 1768-L43 is suited for a diverse array of industrial automation applications, including:

• Packaging Machinery – Controlling fillers, cappers, labelers, and wrappers with precise timing and coordination, leveraging its integrated motion control for synchronised operations.

• Material Handling Systems – Managing conveyors, sortation systems, and automated guided vehicles (AGVs), where its motion control ensures accurate positioning.

• Metal Forming and Stamping – Coordinating presses and feeders in metal processing applications.

• Automated Assembly Machines – Coordinating robots, actuators, and vision systems in production lines.

• Process Control – Monitoring and controlling parameters such as temperature, pressure, and flow in industries like chemical and power generation.

Its built‑in communication features, particularly EtherNet/IP, make it an excellent choice for applications requiring integration into larger Industrial Internet of Things (IIoT) or Industry 4.0 architectures.

Comparison and Considerations

The 1768-L43 is a versatile controller within the CompactLogix series. Its key differentiator is its integrated motion control capability for up to 4 axes, which sets it apart from basic controllers without motion functionality. However, for applications requiring more than 4 axes of motion or higher memory capacity, higher‑end models like the 1768‑L45 or CompactLogix 5370/5380 series controllers might be more suitable.

When selecting a controller, consider:

• Motion Requirements – The 4‑axis capability is ideal for small to medium‑sized motion applications.

• I/O Needs – The ability to expand to 288 points provides flexibility for growing applications.

• Network Integration – Support for multiple networks (EtherNet/IP, ControlNet, DeviceNet) facilitates connectivity in diverse environments.

• Environmental Conditions – The operating temperature and humidity ranges make it suitable for most industrial environments.

Conclusion

The 1768-L43 CompactLogix controller is a powerful, versatile, and scalable automation solution. Its combination of processing power, integrated motion control, extensive I/O capabilities, and robust communication options makes it a reliable choice for engineers and machine builders looking to implement precise control in a compact form factor.

As part of an integrated architecture, it provides seamless connectivity with a comprehensive suite of I/O, networking, and software tools, enabling the development of efficient and future‑proof automation systems. Whether deployed in packaging, material handling, or process control with motion requirements, the 1768-L43 delivers the performance, flexibility, and reliability needed to optimise industrial processes and enhance productivity. Its design, which balances advanced features with user‑friendly operation, ensures that it remains a valuable asset in today’s competitive industrial landscape.
