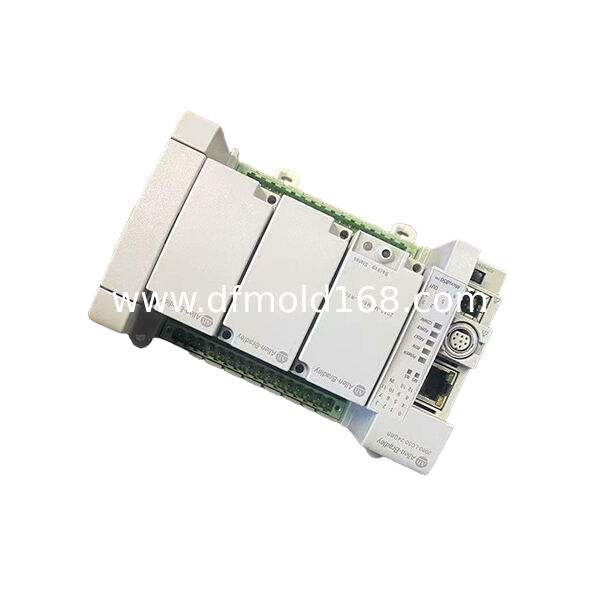

The 2080-LC50-24QBB is a compact 24-point programmable controller designed for standalone machines requiring built-in digital I/O, Ethernet communication and basic pulse-train motion control.
It includes 14 sink/source digital inputs and 10 sourcing transistor outputs. Two pulse-train outputs support basic stepper or servo positioning, while four high-speed counters handle encoder pulses and rapid sensor signals.
The controller also provides embedded Ethernet, USB and RS-232/RS-485 communication, three plug-in slots and support for up to four expansion I/O modules.
Key Features
- 14 digital inputs
- 10 sourcing transistor outputs
- Two-axis PTO motion
- Four high-speed counters
- Embedded Ethernet port
- RS-232/RS-485 serial communication
- Three plug-in slots
- Four-module I/O expansion
Typical Applications
- Small packaging machines
- Conveyor systems
- Labeling equipment
- Assembly stations
- Stepper positioning systems
Integrated 24-Point I/O
The controller provides:
- 14 digital inputs
- 10 transistor outputs
- Sink/source input compatibility
- 24 V DC sourcing outputs
The transistor outputs are suitable for compatible DC loads and faster switching than relay-output versions.
Basic Motion Control
Two pulse-train outputs can provide command pulses for compatible stepper or servo drives.
The controller is suitable for simple positioning tasks but should not be described as a coordinated multi-axis servo controller.
2080-LC50-24QBB vs 2080-LC50-24QWB
2080-LC50-24QBB
10 sourcing transistor outputs
Two PTO motion axes
Suitable for fast DC switching
2080-LC50-24QWB
10 relay outputs
No transistor PTO output
Suitable for AC or DC load switching
Installation Notes
- Confirm 24 V DC supply capacity
- Verify sink/source input wiring
- Use compatible sourcing-output loads
- Check PTO pulse requirements
- Record the existing firmware
- Back up the controller program
- Verify expansion-module compatibility
FAQ
Q1: How many embedded I/O points are included?
A1: It has 24 points: 14 digital inputs and 10 digital outputs.
Q2: What output type does it use?
A2: It uses 24 V DC sourcing transistor outputs.
Q3: Does it support pulse-train motion?
A3: Yes. It supports two PTO axes for compatible stepper or servo drives.
Q4: How many high-speed counters are available?
A4: It provides four high-speed counters.
Q5: Does it include Ethernet?
A5: Yes. It includes an embedded 10/100 Mbps Ethernet port.
