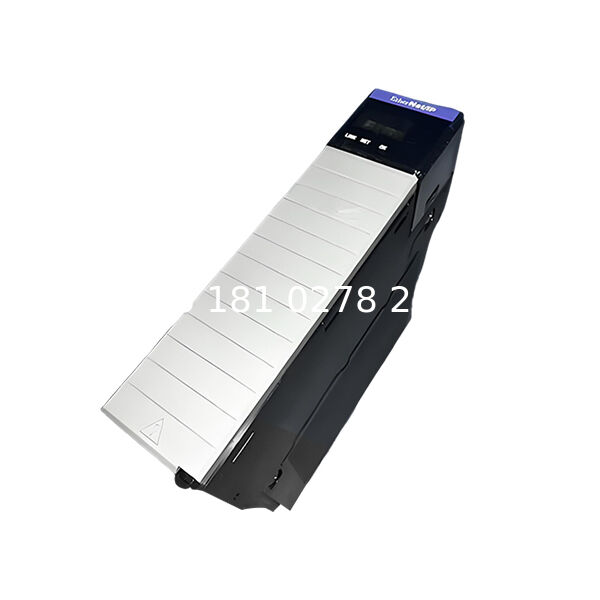

1756-ENBT ControlLogix EtherNet/IP Bridge Module 10/100 Mbps RJ45 Communication Adapter

The 1756-ENBT is an EtherNet/IP bridge module used in ControlLogix industrial automation systems. It is designed to provide Ethernet network communication for chassis-based PLC control systems, allowing the controller system to communicate with distributed I/O stations, HMI panels, engineering workstations, drives, remote devices, and other automation equipment through an EtherNet/IP network.

This module is commonly used in PLC control cabinets, production line networks, machine control systems, process equipment, packaging lines, material handling systems, assembly machines, and factory automation retrofit projects. It is especially useful when an existing control system needs Ethernet communication, remote I/O connection, network data exchange, or replacement of a failed Ethernet communication module.

The 1756-ENBT supports 10/100 Mbps Ethernet communication through an RJ45 port. It provides TCP and CIP connection capacity for industrial communication tasks and can be installed in a compatible 1756 chassis. In many automation systems, this module acts as the network bridge between the controller backplane and Ethernet-based field devices. It can support controller communication, remote I/O data exchange, HMI access, programming connection, and supervisory system integration depending on the system design.

For maintenance and replacement projects, customers should confirm the full model number, series revision, firmware requirement, chassis configuration, controller type, Ethernet network settings, IP address, and existing communication load before ordering. Communication modules may look similar, but connection capacity, network speed, firmware compatibility, and system configuration requirements can differ by model. Correct confirmation is important before replacing a module in a running production system.

The 1756-ENBT is often selected by automation engineers, factory maintenance teams, system integrators, and spare parts buyers who need an Ethernet bridge module for machine repair, PLC cabinet recovery, network expansion, or long-term spare parts inventory. We can help check the correct module according to your old module label, control cabinet photo, PLC hardware list, network diagram, or spare parts list. Related 1756 controllers, communication modules, I/O modules, power supplies, chassis, drives, HMI panels, and automation spare parts can also be checked according to your project requirement.

If you need the 1756-ENBT for urgent equipment repair, industrial Ethernet communication replacement, PLC cabinet maintenance, or automation spare parts stocking, please send the full model number, required quantity, product condition requirement, and delivery schedule. We can provide a fast quotation and help verify whether this module matches your existing control system.

Key Features

• EtherNet/IP bridge module for ControlLogix systems
• 10/100 Mbps Ethernet communication rate
• One RJ45 Ethernet port
• Supports TCP and CIP communication connections
• Used for distributed I/O, controller communication, HMI access, and network integration
• Installed in a compatible 1756 chassis-based control system
• Suitable for machine maintenance, PLC network replacement, and automation retrofit
• Useful for production line recovery and spare parts inventory

Typical Applications

• PLC control cabinets
• Industrial Ethernet communication networks
• Distributed I/O systems
• HMI and controller communication
• Production line automation
• Packaging machinery networks
• Material handling systems
• Process equipment control
• Factory automation retrofit projects
• Maintenance spare parts replacement

FAQ

Q1: What is 1756-ENBT used for?

1756-ENBT is used as an EtherNet/IP bridge module in ControlLogix control systems. It connects the chassis-based controller system to Ethernet networks for distributed I/O, HMI communication, programming access, controller communication, and industrial network integration.

Q2: What communication speed does 1756-ENBT support?

The 1756-ENBT supports 10/100 Mbps Ethernet communication through an RJ45 Ethernet port. Before replacement, please confirm the existing network setting and communication requirement.

Q3: Is 1756-ENBT an I/O module or a communication module?

The 1756-ENBT is a communication bridge module, not a digital or analog I/O module. It is used to provide EtherNet/IP network communication for a compatible 1756 chassis-based control system.

Q4: How many connections does 1756-ENBT support?

The 1756-ENBT supports up to 64 TCP connections and up to 128 CIP connections. The actual system performance depends on communication load, RPI settings, network design, controller configuration, and connected devices.

Q5: What should I check before replacing 1756-ENBT?

Please confirm the full model number, series revision, firmware revision, IP address setting, chassis slot position, controller configuration, and Ethernet network layout. You can send us photos of the old module and control cabinet for model confirmation.

Q6: Can 1756-ENBT be used for distributed I/O communication?

Yes. The 1756-ENBT can be used in EtherNet/IP systems for distributed I/O communication, controller-to-controller data exchange, HMI communication, and other Ethernet-based automation networking tasks depending on the system configuration.

Q7: Can you help check related 1756 series parts?

Yes. We can help check related 1756 series communication modules, controllers, I/O modules, chassis, power supplies, HMI panels, drives, cables, and other industrial automation spare parts according to your maintenance requirement.
