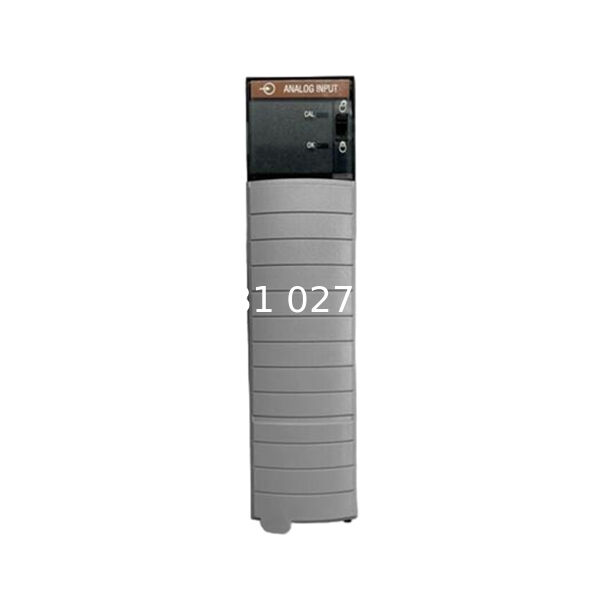

1756-IF16 16 Channel Analog Voltage Current Input Module with 16-Bit Resolution

The 1756-IF16 is a high-density 16-channel analog input module designed for industrial measurement and monitoring applications requiring accurate voltage and current signal acquisition.

Unlike basic analog input devices, this module provides flexible channel configuration, supporting up to 16 single-ended inputs, 8 differential inputs, or 4 high-speed differential input channels. This allows engineers to optimize wiring methods according to signal quality, sensor type and application requirements.

With 16-bit resolution and support for common industrial analog signals, the module is suitable for collecting data from pressure transmitters, flow sensors, temperature measurement devices and position feedback instruments.

The module also provides channel diagnostics, calibration status monitoring and input alarm functions, making it suitable for demanding industrial control systems.

Key Features

• 16 analog input channels
• Voltage and current signal support
• 16-bit resolution
• Single-ended and differential input modes
• High-speed differential configuration
• 0-20mA current input support
• ±10.25V voltage input support
• Channel diagnostics and alarms

Typical Applications

• Process monitoring systems
• Pressure and flow measurement
• Temperature acquisition systems
• Machine condition monitoring
• Industrial instrumentation

16-Channel High-Density Analog Input

The main advantage of 1756-IF16 is its high channel density.

One module can acquire multiple analog signals, reducing:

• Panel space requirements
• Wiring complexity
• Number of installed modules
• System expansion cost

It is suitable for machines and processes requiring many analog measurement points.

Flexible Input Configuration

The module supports multiple wiring configurations:

16 Single-Ended Inputs

Suitable for standard sensor connections where signal reference is shared.

8 Differential Inputs

Suitable for improved noise immunity and longer cable distances.

4 High-Speed Differential Inputs

Suitable for applications requiring faster analog acquisition.

This flexibility allows the same module to support different machine designs.

16-Bit Analog Resolution

The module provides 16-bit signed resolution for analog conversion.

Benefits include:

• Higher measurement accuracy
• Better signal detail
• Improved control stability
• More precise process monitoring

This makes it suitable for applications where analog signal variation directly affects machine performance.

Voltage and Current Signal Compatibility

Supported voltage inputs:

• 0 to 10.25V DC
• ±10.25V DC
• 0 to 5.125V DC

Supported current input:

• 0 to 20.5mA

The module can interface with common industrial transmitters and analog sensors.

Channel Diagnostics and Alarm Functions

The module provides monitoring functions including:

• Input range detection
• Channel status monitoring
• Calibration status indication
• Fault condition reporting

These features help maintenance personnel identify analog signal problems more quickly.

Input Isolation and Signal Protection

The module provides input-to-backplane isolation.

This helps:

• Reduce electrical interference
• Improve system reliability
• Protect the controller backplane

Proper grounding and shielded wiring remain important for analog applications.

1756-IF16 vs 1756-IF8

1756-IF16

16 analog input channels

Higher channel density

Suitable for multi-sensor systems

1756-IF8

8 analog input channels

Lower channel count

Suitable for smaller systems

The main difference is the number of available analog input points.

1756-IF16 vs 1756-IF16I

1756-IF16

16-channel analog input

Standard input design

1756-IF16I

16-channel isolated analog input

Enhanced channel isolation capability

Applications requiring independent channel isolation should consider isolated versions.

1756-IF16 vs 1756-OF8

1756-IF16

Analog input module

Receives signals from sensors

1756-OF8

Analog output module

Sends analog control signals

They perform opposite signal functions.

Sensor Compatibility

Typical compatible signal sources include:

• Pressure transmitters
• Flow meters
• Temperature transmitters
• Level sensors
• Position sensors
• Industrial measurement devices

Sensor output type must match the configured input range.

Installation Notes

• Confirm input signal type before wiring
• Select correct single-ended or differential mode
• Use shielded analog cables
• Separate analog wiring from power cables
• Configure input ranges correctly
• Verify channel scaling
• Check grounding method
• Test each channel before operation

FAQ

Q1: How many analog inputs does 1756-IF16 provide?

A1: It provides 16 analog input channels.

Q2: Does it support current signals?

A2: Yes. It supports 0-20mA current input.

Q3: What voltage signals are supported?

A3: It supports 0-10.25V, ±10.25V and 0-5.125V DC.

Q4: What is the resolution?

A4: The module provides 16-bit analog resolution.

Q5: Can it operate in differential mode?

A5: Yes. It supports differential input configuration.

Q6: How many differential channels are available?

A6: It supports up to 8 differential inputs or 4 high-speed differential inputs.

Q7: What applications use this module?

A7: It is commonly used for pressure, flow, temperature and position signal acquisition.

Q8: What distinguishes it from 1756-IF8?

A8: 1756-IF16 provides 16 input channels, while 1756-IF8 provides 8 channels.
