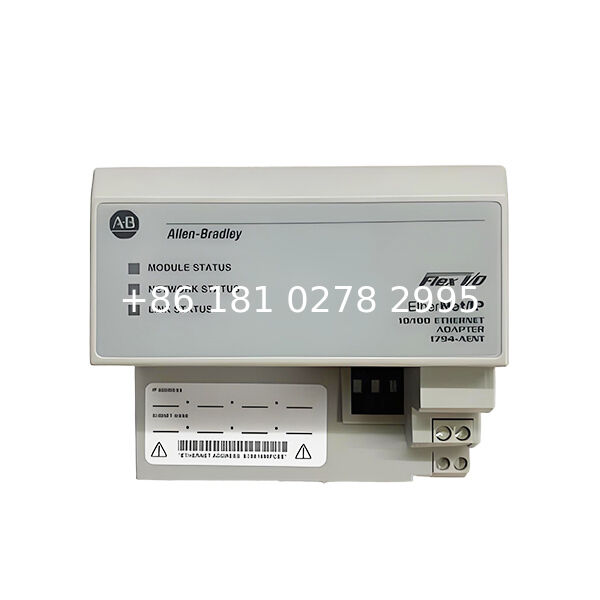

1794-AENT Single-Port EtherNet/IP Remote I/O Adapter for 8 Modules

The 1794-AENT is a single-port EtherNet/IP adapter used to connect a modular remote I/O station to an industrial Ethernet controller.

It supports up to eight local digital, analog or specialty I/O modules and transfers their input, output, configuration and diagnostic data through a 10/100 Mbps Ethernet connection.

The adapter requires a 24 V DC supply and provides power to the local FlexBus backplane. It does not contain field input or output channels by itself.

Key Features

• Single 10/100 Mbps Ethernet port
• Supports up to eight I/O modules
• 24 V DC power input
• 640 mA FlexBus output
• DIN-rail installation
• Remote I/O communication

Typical Applications

• Distributed machine I/O
• Conveyor control
• Process signal collection
• Remote equipment panels
• Existing system replacement

Single-Port Ethernet Connection

The adapter has one RJ45 Ethernet port and is primarily suited to star networks using an external Ethernet switch.

It cannot directly pass Ethernet traffic to another adapter through a second port.

Local I/O Capacity

One adapter supports up to eight local I/O modules.

The actual assembly must also remain within the 640 mA FlexBus current limit. An additional adapter or separate I/O station is required when the module count or power demand exceeds the available capacity.

1794-AENT vs 1794-AENTR

1794-AENT

One RJ45 port

Star network connection

Up to eight I/O modules

1794-AENTR

Two RJ45 ports

Linear and DLR network support

Up to eight I/O modules

The number of Ethernet ports and supported topology are the main differences.

Installation Notes

• Confirm the 24 V DC power supply
• Calculate FlexBus current demand
• Record the existing IP address
• Install no more than eight modules
• Use an external switch for network branching
• Test all I/O channels after replacement

FAQ

Q1: How many I/O modules can 1794-AENT support?

A1: It supports up to eight local I/O modules.

Q2: How many Ethernet ports does it have?

A2: It has one 10/100 Mbps RJ45 Ethernet port.

Q3: Does it support DLR networks?

A3: No. Use the dual-port 1794-AENTR when direct DLR or linear connectivity is required.

Q4: What power supply does it require?

A4: It requires a nominal 24 V DC supply.

Q5: Does it include field I/O channels?

A5: No. Separate digital, analog or specialty I/O modules are required.
