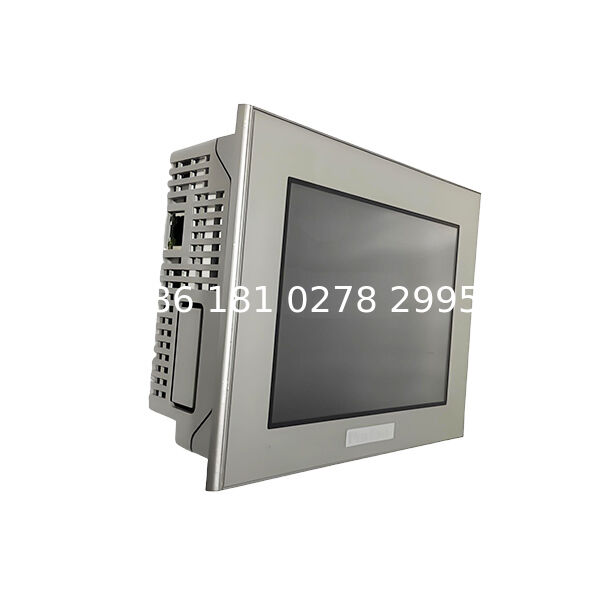

Proface AGP3400-T1-D24 Industrial HMI

The Proface AGP3400-T1-D24 represents a sophisticated solution in the realm of industrial human-machine interface (HMI) technology, designed to bridge the gap between complex control systems and operational personnel. This 10.4-inch TFT color display combines robust construction with advanced functionality, serving as a critical visualization and control point in demanding industrial environments. With its high-brightness screen, resistive touch technology, and comprehensive connectivity options, the AGP3400-T1-D24 is engineered to enhance operational efficiency, simplify machine interaction, and improve overall system visibility across various automation applications, from manufacturing floors to process control centers.

Core Technological Features and Operational Advantages

Advanced Display and Touch Interface

The AGP3400-T1-D24 features a 10.4-inch TFT LCD display with a resolution of 800 × 600 pixels (SVGA), delivering crisp and clear visualization of process data, alarm information, and control elements. The high brightness level ensures excellent readability even under strong ambient lighting conditions commonly found in industrial settings. The analog resistive touch panel supports reliable operation while wearing gloves and is resistant to surface scratches and contaminants, making it ideal for harsh environments where dust, moisture, or chemical exposure may occur.

Robust Hardware Construction

Built to withstand the rigors of industrial operation, this HMI unit boasts a durable design with strong electromagnetic compatibility (EMC) performance. It meets stringent industrial standards for vibration and shock resistance, ensuring reliable operation in challenging conditions. The front panel typically features an IP65 protection rating when properly installed, making it dust-tight and protected against water jets from any direction. This level of protection allows for easy cleaning and ensures longevity in food processing, pharmaceutical, or other wash-down environments.

Powerful Processing and Memory Capacity

Equipped with a high-performance processor and substantial memory resources, the AGP3400-T1-D24 can handle complex visualization projects with multiple screens, detailed graphics, and extensive data logging capabilities. The ample storage space allows for storing extensive recipe data, historical trends, and alarm records directly on the device, reducing the load on connected controllers and enabling comprehensive data analysis without additional hardware.

Comprehensive Connectivity Options

The unit offers extensive communication capabilities, supporting multiple industry-standard protocols simultaneously. With built-in Ethernet ports and support for various serial communication options (RS-232, RS-422, RS-485), the HMI can connect to a wide range of PLCs, drives, and other automation devices from different manufacturers. This flexibility makes it an ideal choice for heterogeneous automation environments where equipment from multiple vendors must be integrated into a unified control system.

Intuitive Development Software

The AGP3400-T1-D24 is programmed using Proface's GP-Pro EX software, which offers a user-friendly development environment with powerful features. The software includes extensive libraries of graphic objects, animation tools, and pre-configured communication drivers that significantly reduce engineering time. The intuitive interface allows for quick creation of sophisticated visualization projects with advanced functionality such as data logging, alarm management, and recipe handling.

Technical Specifications

Application Scenarios

The AGP3400-T1-D24 finds application across numerous industrial sectors:

• Manufacturing Automation: Serves as the primary operator interface for production lines, displaying real-time production data, machine status, and quality metrics while providing control capabilities for operators and maintenance personnel.

• Process Control Systems: In chemical, pharmaceutical, or food and beverage industries, the HMI provides visualization of process flows, parameter monitoring, and alarm management, enabling operators to maintain optimal process conditions.

• Packaging Machinery: Offers intuitive control interfaces for complex packaging machines, allowing for quick changeovers through recipe management and providing diagnostic information to minimize downtime.

• Material Handling Systems: Functions as the control center for conveyor systems, automated storage and retrieval systems, and sorting equipment, providing system overviews and manual control options.

• Water and Wastewater Treatment: Monitors and controls treatment processes, displaying critical parameters and trends while providing alarm notification for abnormal conditions.

Software Ecosystem and Development Efficiency

The GP-Pro EX development software significantly enhances the value proposition of the AGP3400-T1-D24. Key features include:

• Extensive Device Connectivity: With support for over 200 communication drivers, the software simplifies integration with various control devices, reducing configuration time and potential errors.

• Advanced Graphics Capabilities: The software includes a comprehensive library of pre-designed objects, symbols, and images that can be easily customized, enabling the creation of visually appealing and intuitive interfaces.

• Data Management Functions: Built-in data logging, recipe handling, and alarm management features allow for comprehensive data collection and analysis without requiring additional software or hardware components.

• Simulation and Testing: The software includes simulation capabilities that allow developers to test and debug projects without requiring physical hardware, accelerating the development cycle and reducing costs.

• Security Features: Password protection and access level management ensure that only authorized personnel can modify critical parameters or access sensitive operational data.

Installation and Maintenance Considerations

The AGP3400-T1-D24 is designed for straightforward installation and long-term reliability. The compact depth allows for space-efficient panel mounting, while the front-panel IP65 rating ensures easy cleaning and maintenance. The extended backlight life minimizes maintenance requirements, and the availability of spare parts and technical support ensures long-term operational viability. The unit's compatibility with various mounting accessories and protective covers further enhances its adaptability to specific environmental conditions.

Compliance and Certification

The product complies with major international standards and certifications, including:

• CE Marking (European Conformity)

• UL Listing (Underwriters Laboratories)

• FCC Part 15 (Federal Communications Commission)

• cULus Certification

These certifications ensure that the device meets stringent safety, EMC, and environmental requirements for global industrial applications.

Conclusion

The Proface AGP3400-T1-D24 Industrial HMI represents a perfect balance of performance, durability, and user-friendliness. Its high-quality display, robust construction, and comprehensive connectivity options make it suitable for a wide range of industrial applications. The powerful GP-Pro EX development software further enhances its value by reducing engineering time and enabling the creation of sophisticated visualization projects. For organizations seeking a reliable, feature-rich HMI solution that can improve operational visibility and control while withstanding challenging industrial environments, the AGP3400-T1-D24 offers an exceptional combination of capabilities that can enhance overall system performance and operator efficiency.
