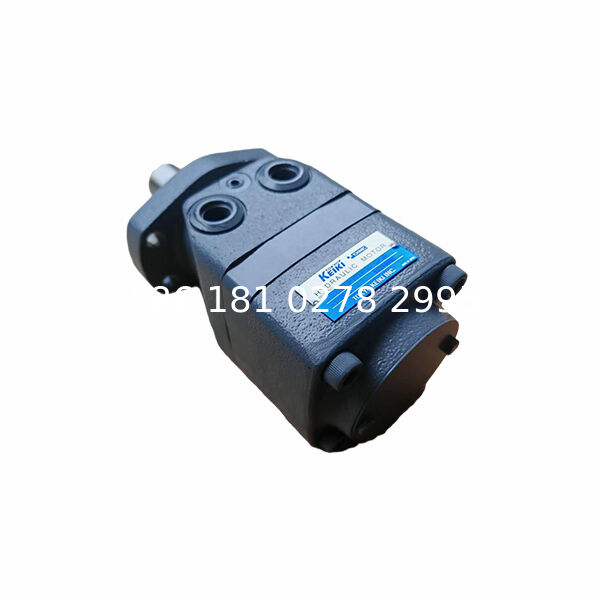

CR-06-5P0-30-SD-JA-J Compact High Torque Low Speed Hydraulic Motor

The CR-06-5P0-30-SD-JA-J is a compact high torque low speed hydraulic motor designed for applications requiring stable rotation, strong starting torque and reliable hydraulic power transmission.

The CR-06 series combines compact dimensions with high torque capability through an internal gear motor design, making it suitable for equipment where installation space is limited but consistent rotary performance is required.

The SD port configuration provides a specific hydraulic connection arrangement, while the JA shaft configuration enables reliable mechanical coupling for industrial drive systems.

Key Features

• Compact CR-06 hydraulic motor design
• High torque low speed operation
• 5P0 displacement configuration
• Internal gear structure
• SD hydraulic port configuration
• JA shaft connection
• Smooth and stable rotation

Typical Applications

• Compact industrial machinery
• Rotary positioning equipment
• Material handling systems
• Hydraulic actuators
• Machine automation equipment

Compact High Torque Design

The CR-06 series is designed for applications requiring:

• High starting torque
• Low-speed stable movement
• Small installation footprint
• Reliable continuous operation

Internal Gear Motor Advantage

The internal gear mechanism provides:

• Smooth torque transmission
• Reduced vibration
• Compact construction
• Good efficiency under variable loads

Configuration Difference

CR-06-5P0-30-SD-JA-J

SD port configuration

JA shaft configuration

Compact hydraulic drive solution

CR-06-5P0-30-JA-J

Different hydraulic port configuration

Same CR-06 torque class

CR-07 Series

Larger displacement

Higher torque capability

For heavier industrial applications

Installation Notes

• Confirm hydraulic port configuration
• Verify shaft dimensions
• Check operating pressure and flow
• Ensure clean hydraulic oil
• Confirm rotation direction before installation

FAQ

Q1: What type of hydraulic motor is CR-06-5P0-30-SD-JA-J?

A1: It is a low speed high torque internal gear hydraulic motor.

Q2: What is the main difference from other CR-06 models?

A2: The main difference is the SD port configuration combined with JA shaft configuration.

Q3: What applications are suitable?

A3: It is suitable for compact industrial hydraulic drive systems requiring stable torque output.

Q4: Can it operate in both rotation directions?

A4: Yes. Hydraulic flow direction determines motor rotation direction.

Q5: What should be confirmed before replacement?

A5: Confirm displacement, port configuration, shaft type, pressure and flow requirements.
