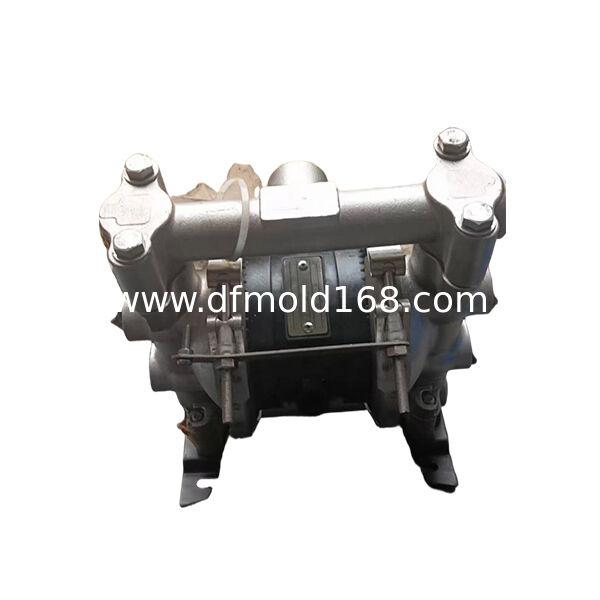

GRACO D54381 Husky 716 3/4 Inch Stainless Diaphragm Pump

The D54381 Husky 716 SS is a 3/4 inch air operated double diaphragm pump designed for reliable transfer of industrial fluids requiring corrosion resistance and stable flow performance.

Featuring a stainless steel fluid section, PTFE/EPDM diaphragm and FKM ball configuration, this pump provides excellent durability for demanding fluid handling environments.

The pneumatic diaphragm design eliminates mechanical seals and electric drive components, reducing leakage risks and allowing flexible installation in industrial systems.

Compared with smaller Husky 307 and Husky 515 models, the Husky 716 provides higher flow capacity and a more robust stainless steel construction for heavier industrial applications.

Key Features

• 3/4 inch NPT connection
• Stainless steel fluid section
• PTFE/EPDM diaphragm design
• FKM check balls
• Stainless steel seats
• 60.6 L/min maximum flow
• Air operated double diaphragm structure
• Suitable for continuous industrial operation

Typical Applications

• Chemical transfer systems
• Industrial process equipment
• Paint and coating systems
• Water treatment equipment
• Manufacturing fluid circulation
• General industrial pumping

Stainless Steel Construction Advantage

Compared with polypropylene diaphragm pumps, the stainless steel fluid section provides:

• Improved mechanical durability
• Better resistance to harsh environments
• Wider industrial application range
• Reliable long-term operation

Higher Flow Industrial Design

The Husky 716 series provides:

• Larger 3/4 inch fluid connection
• Higher flow capacity
• Stable operation under continuous duty
• Suitable for medium-flow transfer systems

Material Configuration Advantage

The D54381 configuration combines:

• Stainless steel seats
• FKM balls
• PTFE/EPDM diaphragm

Benefits:

• Improved chemical compatibility
• Reliable sealing performance
• Reduced maintenance frequency

Model Difference

D54381 Husky 716 SS

3/4 inch connection

Stainless steel fluid section

60.6 L/min flow capacity

D52911 Husky 515

1/2 inch connection

PTFE chemical-resistant configuration

Medium flow applications

D31211 Husky 307

3/8 inch compact pump

Small equipment transfer

Installation Notes

• Confirm fluid compatibility with wetted materials
• Verify air pressure supply
• Check inlet and outlet connections
• Confirm diaphragm material suitability
• Use clean compressed air

FAQ

Q1: What type of pump is D54381?

A1: It is a stainless steel air operated double diaphragm pump.

Q2: What is the port size?

A2: It uses 3/4 inch NPT fluid connections.

Q3: What is the maximum flow rate?

A3: The maximum flow rate is 60.6 L/min.

Q4: What makes D54381 different from Husky 515 pumps?

A4: D54381 uses a larger 3/4 inch connection and stainless steel fluid section for higher flow industrial applications.

Q5: Does it require electrical power?

A5: No. It operates using compressed air.
